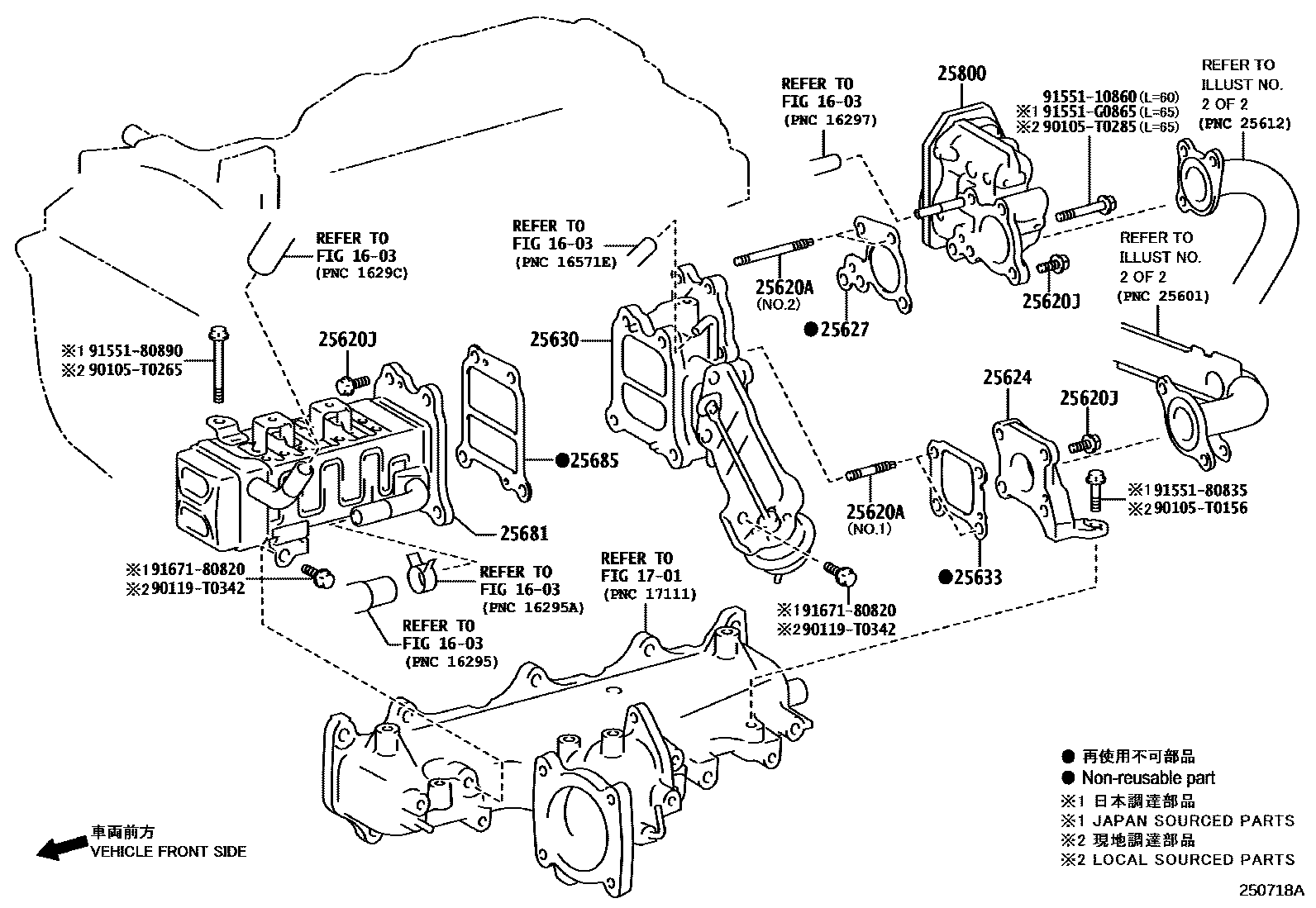

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0004 1EURO 2 0006 1 0009 1EURO 2 0011 1EURO 0

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i2GDFTV..GUN155,165..GCC¥80201507-202012

NO.1

main90126-08052i1GDFTV,2GDFTV..GUN156,16#..RHD..SA¥80201601-202104

NO.1

main90126-08064i1GDFTV..GUN156..IDNSU..6F¥120201708-201809

(J),NO.2

main90126-08064i1GDFTV..GUN156..6F..BZAGT;1GDFTV,2GDFTV..GUN156,16#..RHD..6F..SA¥120201708-201809

CHILE SPEC,(J),NO.2

main90126-08064i2GDFTV..GUN165..S..PH;2GDFTV..GUN165..IDNSU..(L,M)..(PH,VN)¥120201507-202008

(J),NO.1

main90126-T0018i1GDFTV..GUN156,166..IND¥190201507-202104

(L),NO.2

25620JBOLT(FOR EGR VALVE)

main90119-T0238i2GDFTV..GUN155..GCC;2GDFTV..GUN165..L..GCC¥80201708-201806

QATAR SPEC(EURO 4 REGULATION),(L)

main90119-T0238i2GDFTV..GUN155,165..GCC¥80201507-202104

(L)

main90119-T0238i2GDFTV..GUN155..GCC;2GDFTV..GUN165..L..GCC¥80201708-201806

SAUDI ARABIA SPEC(EURO4 REGULATION),(L)

main90119-T0238i2GDFTV..GUN155..GCC;2GDFTV..GUN165..L..GCC¥80201708-201806

GCC SPEC(EURO 4 REGULATION),(L)

main91671-80825i2GDFTV..GUN155,165..LHD..IDNSU..6FC..(GEN,VN)¥80201507-202008

(J)

25624ADAPTER, EGR VALVE

main25607-0E010i1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201710-201809

(L)

main25607-0E020i1GDFTV..GUN156..LHD..SA;2GDFTV..GUN165..RHD..GEN;1GDFTV..GUN156..IDNSU..GEN;1GDFTV..GUN156..THSUV..H..GEN201708-202009

main25607-11010i1GDFTV,2GDFTV..GUN156,16#..RHD..SA201601-202104

(J)

main25624-0E010i2GDFTV..GUN155,165..GCC201507-202010

THA SOURCED PARTS

main25624-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201610-202012

IND SOURCED PARTS

main25624-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)¥2,240201507-202008

(J)

25627GASKET, EGR VALVE

main25627-0E010i1GDFTV,2GDFTV..GUN15#..GCC201708-201806

GCC SPEC(EURO 4 REGULATION),THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN155,165..GCC201507-202010

THA SOURCED PARTS

main25627-0E010i1GDFTV..GUN156..GCC201601-202104

(L)

main25627-0E010i2GDFTV..GUN155..GCC;2GDFTV..GUN165..L..GCC201708-201806

QATAR SPEC(EURO 4 REGULATION),THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN155..GCC;2GDFTV..GUN165..L..GCC201708-201806

SAUDI ARABIA SPEC(EURO4 REGULATION),THA SOURCED PARTS

main25627-0E020i1GDFTV..GUN156,166..IND201709-202012

IND SOURCED PARTS

main25627-11050i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC¥270201507-202008

(J)

25630VALVE ASSY, EGR, NO.2

main25630-0E010i2GDFTV..GUN155,165..GCC201507-202004

IDN SOURCED PARTS

sub25630-0E030¥35,100

main25630-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201610-202005

IND SOURCED PARTS

sub25630-0E040

main25630-0E030i2GDFTV..GUN165..LHD;2GDFTV..GUN155..GCC,GEN;1GDFTV..GUN156..BZAGT,GCC,LA,PH,VN¥35,100202005-202010

IDN SOURCED PARTS

sub25630-0E031¥31,900

main25630-0E040i1GDFTV..GUN156,166..IND202005-202012

IND SOURCED PARTS

sub25630-0E041

main25630-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)¥42,200201507-202005

(J)

sub25630-11011¥35,100

main25630-11011i2GDFTV..GUN165..VNSUV¥35,100202006-202008

(J)

sub25630-11012¥31,900

25633GASKET, EGR VALVE

main25633-0E010i1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(A201507-202010

THA SOURCED PARTS

main25633-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201610-202012

IND SOURCED PARTS

main25633-11010i2GDFTV..GUN155,165..LHD..IDNSU..6FC..(GEN,VN)¥410201507-202008

(J)

25681COOLER, EGR, NO.1

main25681-0E010i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)¥33,500201507-202010

THA SOURCED PARTS

main25681-0E010i2GDFTV..GUN155,165..GCC¥33,500201507-201709

main25681-0E020i1GDFTV..GUN156,166..IND201610-202012

THA SOURCED PARTS

main25681-0E030i1GDFTV..GUN156,166..IND202006-202012

IND SOURCED PARTS

25685GASKET, EGR COOLER, NO.1

main25685-0E010i1GDFTV,2GDFTV..GUN15#,166..IND,MA201507-202010

THA SOURCED PARTS

main25685-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201709-202012

IND SOURCED PARTS

main25685-11010i2GDFTV..GUN155,165..LHD..IDNSU..6FC..(GEN,VN)¥410201507-202008

(J)

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010i1GDFTV..GUN156,166..IND201507-202104

(L)

main25800-11010i2GDFTV..GUN155,165..IDNSU..6FC..GCC¥20,200201507-202008

(J)

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155110860

main91551-10860¥130

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

20 parts on this diagram · 5 diagrams in section
