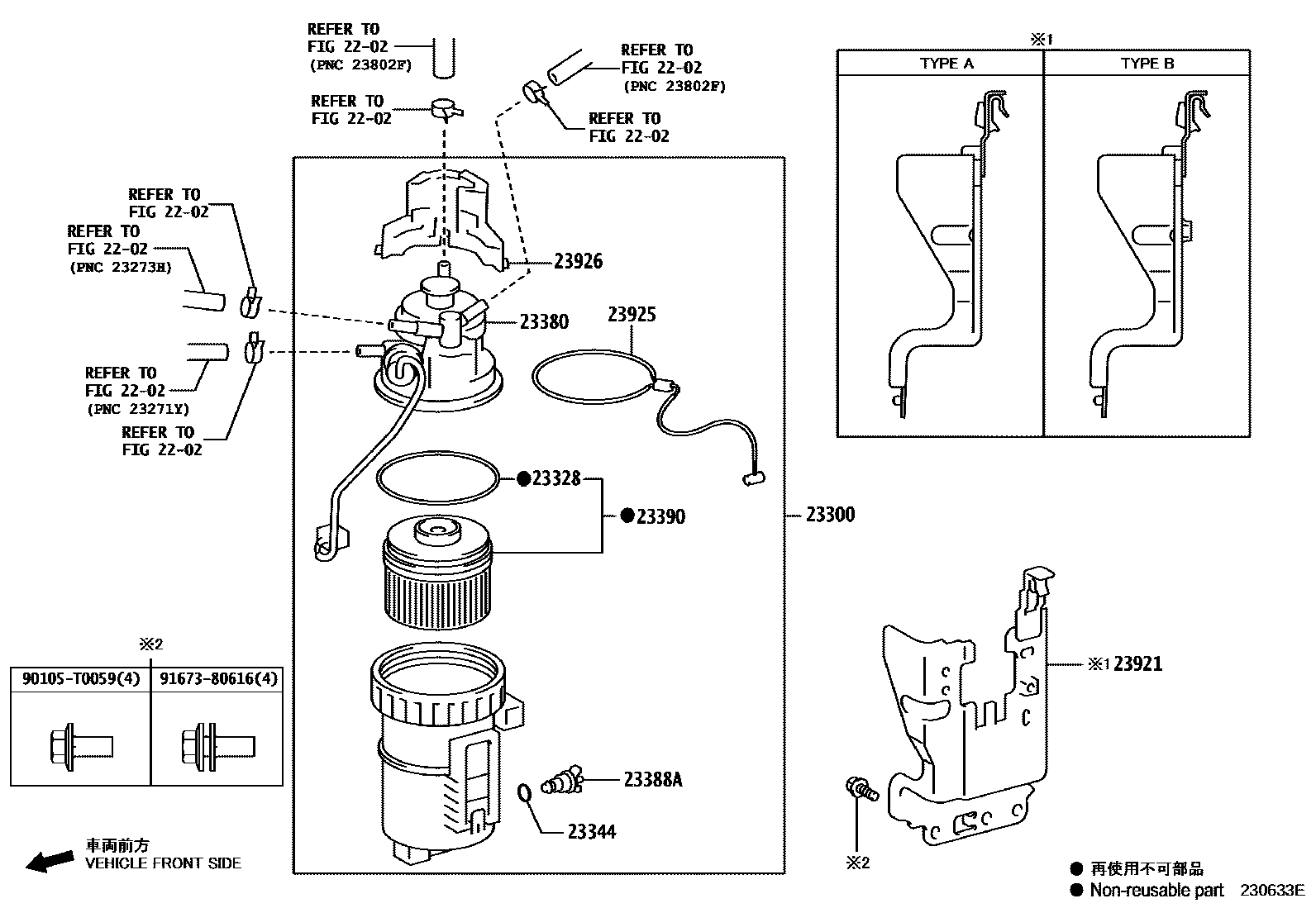

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER 0005 1 0006 1

2202

23300FILTER ASSY, FUEL

main23300-0L091i1GDFTV..GUN156..THSUV..(M,S)..GEN¥12,500201708-202005

main23300-0L100i1GDFTV..GUN156..HDCR..(ARL,BZAGT)201507-201602

sub23300-0L101

main23300-0L101i2GDFTV..GUN165..6F..SA;2GDFTV..GUN165..6FC..(L,S)..(SA,TH);1GDFTV,2GDFTV..GUN15#,166..HDCR..(ARL,BZAGT,SA)201603-202010

main23300-0L110i1GDFTV..GUN156..IART;1GDFTV,2GDFTV..GUN15#,16#..GCC,IDN,LA,PH,TH,VN201507-201602

sub23300-0L111

main23300-0L111i5LE..LAN155201603-202104

sub23300-0L112¥12,500

23328GASKET(FOR FUEL FILTER)

main23344-0L070i1KDFTV..KUN156¥270201507-202104

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i5LE..LAN155¥340201507-202104

23380CAP ASSY, FUEL FILTER

main23380-0L091i2GDFTV..GUN165..6F..SA;1GDFTV..GUN156..H..HDCR..BZAGT;2GDFTV..GUN165..6FC..(L,S)..(SA,TH);1GDFTV,2GDFTV..GUN15#,166..(AGTSU,SASUV,THSUV)..(L,M,S)..HDCR..(ARL,BZAGT,¥4,560201603-202010

main23380-0L111i5LE..LAN155201603-202104

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥390201507-202104

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i1GDFTV..GUN156,166..IND¥5,700201507-202104

main23390-0L090i1GDFTV..GUN156..THSUV..(M,S)..GEN¥5,700201708-202005

23921SUPPORT, FUEL FILTER

main23921-0L130i1GDFTV..GUN156..HDCR..BZAGT;1GDFTV,2GDFTV..GUN156,16#..RHD..SA201708-202104

TYPE A:REFER ILLUST.

main23921-0L130i5LE..LAN155201710-201906

MARK=D3

main23921-0L130i5LE..LAN155201906-202009

main23921-0L210i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,THSUV¥2,590201507-202012

TYPE B:REFER ILLUST.

main23921-0L210i1KDFTV,2KDFTV..KUN156,165¥2,590201512-201709

main23921-0L210i5LE..LAN155¥2,590201603-201710

MARK=D2

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i1KDFTV,2KDFTV..KUN156,165¥280201507-202104

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i1KDFTV,2KDFTV..KUN156,165¥1,680201507-202104

90105T0059

main90105-T0059

9167380616

main91673-80616¥60

12 parts on this diagram · 4 diagrams in section
