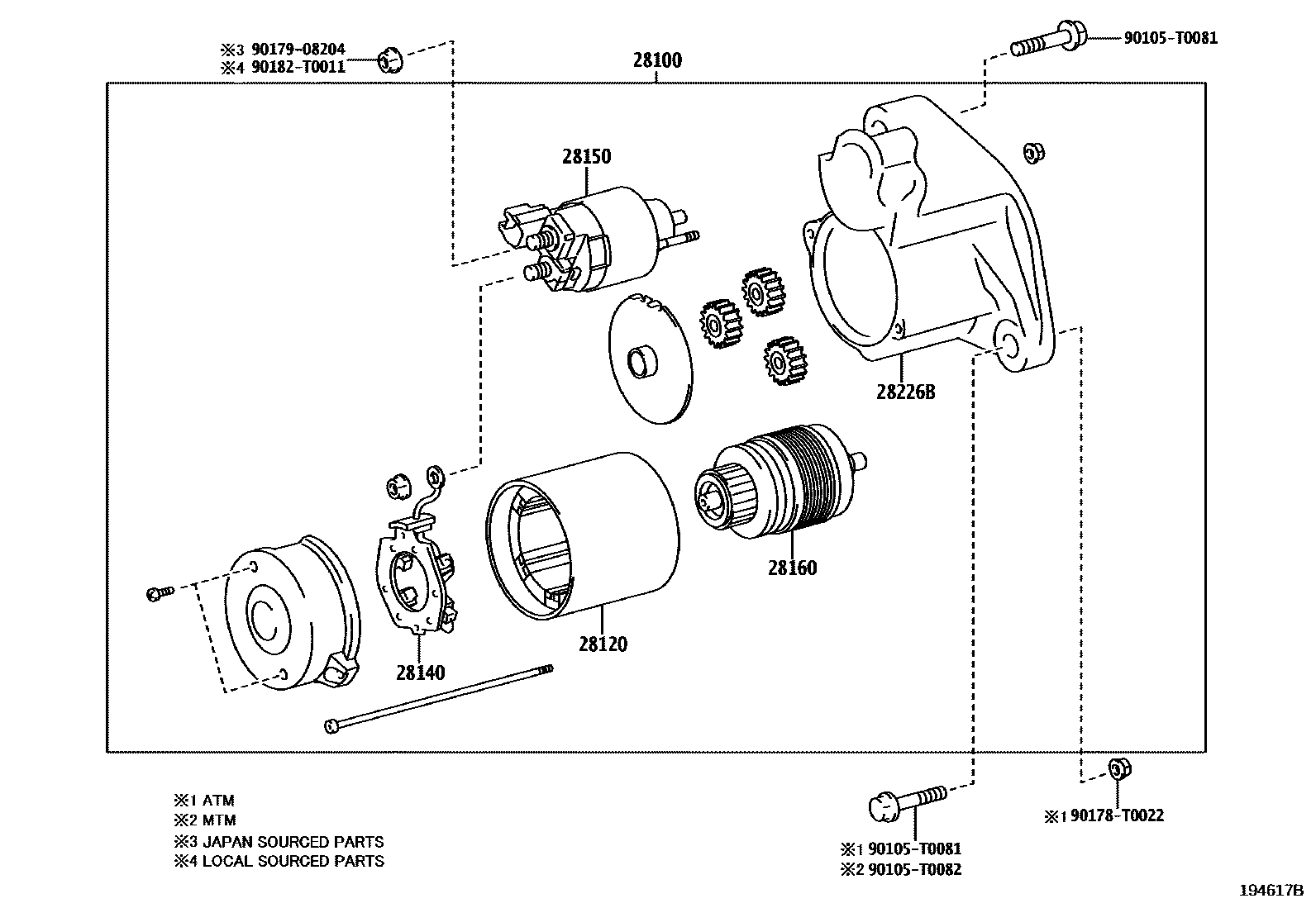

STARTER

0001 112V 2.0KW(DENSO) 0004 112V 2.2KW(VALEO) 0005 112V 2.4KW(DENSO),W(STOP & STA0006 112V 1.6KW(DENSO) 0007 112V 1.9KW(BOSCH) 0008 112V 1.4KW 0009 112V 1.4KW(BOSCH) 0010 112V 2.0KW(DENSO) 0011 112V 1.4KW(BOSCH) 0012 112V 1.4KW(BOSCH) 0013 112V 1.9KW,2.0KW(BOSCH) 0014 112V 2.2KW 0015 112V 2.7KW

28100STARTER ASSY

main28100-0C090i2TRFE..TGN156,166..(IDNSU,MASUV,PKNSU,THSUV,VNSUV)..(GCC,GEN,IDN,LA,MA,PH,PKN,TH,VN)201507-202104

12V 1.6KW

main28100-0C110i2TRFE..TGN156,166..SA201603-202009

12V 1.4KW

main28100-0C120i2TRFE..TGN156,166..AGTSU201512-202010

12V 1.4KW

main28100-0C150i2TRFE..TGN168201710-202010

12V 1.6KW,DENSO

main28100-0C160i2TRFE..TGN168201710-202010

12V 1.4KW,BOSCH

main28100-0L052i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

12V 2.7KW

main28100-0L100i1GDFTV,2GDFTV..GUN15#..TH201911-202005

12V 2.4KW

main28100-0L180i1GDFTV,2GDFTV,1KDFTV..GUN15#,165,KUN156..IDNSU,MASUV,PKNSU,VNSUV201601-202104

12V 2.0KW

main28100-0L190i1GDFTV..GUN156,166..6FC..IND201610-201709

12V 2.0KW

main28100-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU..(6F,6FC)201512-202010

12V 1.9KW,BOSCH

sub28100-0L201

main28100-0L210i1KDFTV..KUN156..AGTSU..5FC201512-201709

12V 2.0KW,BOSCH

main28100-0L220i1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN15#,16#,KUN156,165..(6F,6FC)..SA201603-202009

12V 1.9KW,BOSCH

sub28100-0L221

main28100-0L230i1KDFTV..KUN156..5FC..SA201603-201709

12V 2.0KW,BOSCH

main28100-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

12V 2.2KW,VALEO

sub28100-0L261

main28100-30110i1GDFTV,2GDFTV..GUN15#..TH201507-201911

12V 2.4KW

main28100-31190i1GRFE..GGN155,165201512-202101

12V 1.4KW

main28100-54491i5LE..LAN155201603-202009

12V 2.2KW

main28100-75141i2TRFE..TGN156..KZS201708-202005

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0C090i2TRFE..TGN166..IND201507-202012

main28120-0C120i2TRFE..TGN156,166..AGTSU201512-202010

main28120-0C160i2TRFE..TGN168201710-202010

BOSCH

main28120-0L050i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

main28120-0L180i1GDFTV,2GDFTV,1KDFTV..GUN15#,165,KUN156..IDNSU,MASUV,PKNSU,VNSUV201601-202104

main28120-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU..(6F,6FC)201512-202010

BOSCH

main28120-0L210i1KDFTV..KUN156..AGTSU..5FC201512-201709

BOSCH

main28120-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

VALEO

main28120-54260i5LE..LAN155201603-202009

main28120-54380i2TRFE..TGN156..KZS201708-202005

main28120-66040i1GRFE..GGN155,165201512-202101

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i2TRFE..TGN156,166..EPT201507-202101

main28140-0C120i2TRFE..TGN156,166..AGTSU201512-202010

main28140-0L180i1GDFTV,2GDFTV,1KDFTV..GUN15#,165,KUN156..IDNSU,MASUV,PKNSU,VNSUV201601-202104

main28140-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU..(6F,6FC)201512-202010

BOSCH

main28140-0L210i1KDFTV..KUN156..AGTSU..5FC201512-201709

BOSCH

main28140-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

VALEO

main28140-35060i1GRFE..GGN155,165201512-202101

main28140-62030i2TRFE..TGN156..KZS201708-202005

main28140-64040i5LE..LAN155201603-202009

main28140-77090i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i2TRFE..TGN168201607-202010

DENSO

main28150-0C120i2TRFE..TGN156,166..AGTSU201512-202010

main28150-0C160i2TRFE..TGN168201710-202010

BOSCH

main28150-0L050i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

main28150-0L180i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-201909

DENSO

main28150-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

BOSCH

main28150-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

VALEO

main28150-0Y170i1GDFTV..GUN156,166..6F..IND201610-202012

main28150-31190i1GRFE..GGN155,165201512-202101

main28150-54330i5LE..LAN155201603-202009

main28150-75120i2TRFE..TGN156..KZS201708-202005

28160ARMATURE ASSY, STARTER

main28160-0C090i2TRFE..TGN156,166..EPT201507-202101

main28160-0C120i2TRFE..TGN156,166..AGTSU201512-202010

main28160-0C150i2TRFE..TGN168201607-202010

DENSO

main28160-0C160i2TRFE..TGN168201710-202010

BOSCH

main28160-0L180i1GDFTV..GUN156,166..6FC..IND201601-201709

main28160-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU..(6F,6FC)201512-202010

BOSCH

main28160-0L210i1KDFTV..KUN156..AGTSU..5FC201512-201709

BOSCH

main28160-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

VALEO

main28160-54140i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

main28160-64041i5LE..LAN155201603-202009

main28160-74070i1GRFE..GGN155,165201512-202101

main28160-75120i2TRFE..TGN156..KZS201708-202005

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C090i2TRFE..TGN156,166..(IDNSU,MASUV,PKNSU,THSUV,VNSUV)..(GCC,GEN,IDN,LA,MA,PH,PKN,TH,VN)201507-202104

main28226-0C120i2TRFE..TGN156,166..AGTSU201512-202010

main28226-0C150i2TRFE..TGN168201607-202010

DENSO

main28226-0C160i2TRFE..TGN168201710-202010

BOSCH

main28226-0L180i1GDFTV,2GDFTV,1KDFTV..GUN15#,165,KUN156..IDNSU,MASUV,PKNSU,VNSUV201601-202104

main28226-0L200i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

BOSCH

main28226-0L260i2GDFTV..GUN155..THSUV..GCC;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L);1GDFTV,2GDFTV..GUN16#..THSUV201507-202005

VALEO

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022

9017908204

main90179-08204

90182T0011

main90182-T0011

11 parts on this diagram · 13 diagrams in section
