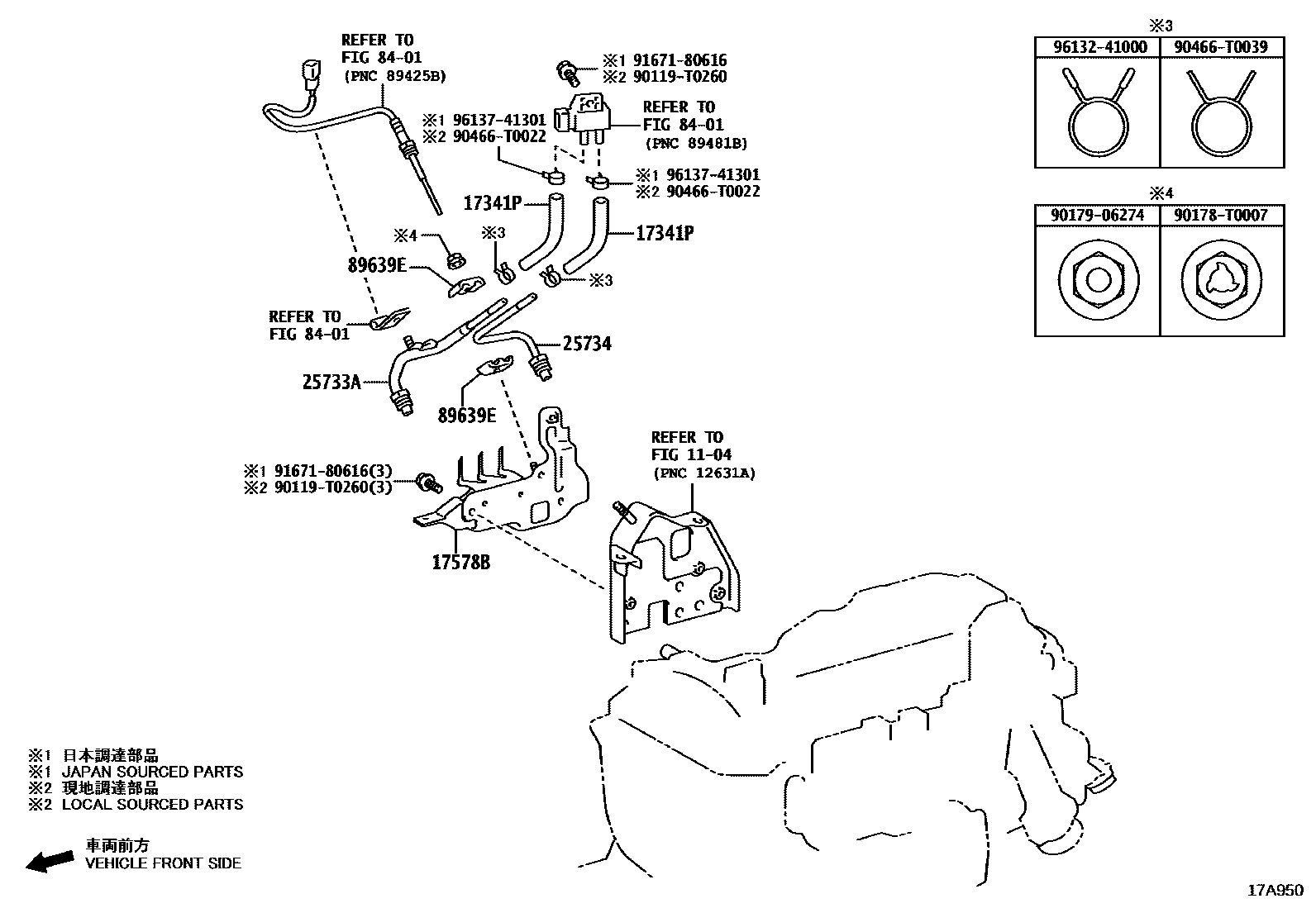

VACUUM PIPING
1104
17341PHOSE, AIR
(L)
CHILE SPEC,*582
*582
CHILE SPEC,(L)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582
*502
*468
CHILE SPEC,*468
*502
*272
CHILE SPEC,*272
17578BCLAMP, PIPE
CHILE SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582
*582
CHILE SPEC,*582
BRAZIL 2017- DIESEL OBD,*582
*502
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582
*468
CHILE SPEC,*468
CHILE SPEC,*272
*272
25733APIPE, VACUUM, NO.1
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main25733-0E010i1GDFTV..GUN156..H..HDCR..BZAGT;1GDFTV..GUN156..(AGTSU,THSUV)..(L,M,S)..HDCR..(ARL,BZAGT,GEN)201507-202012
25734PIPE, VACUUM, NO.2
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main25734-0E010i1GDFTV..GUN156..H..HDCR..BZAGT;1GDFTV..GUN156..(AGTSU,THSUV)..(L,M,S)..HDCR..(ARL,BZAGT,GEN)201507-202012
8401
89639ECLAMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
MADE IN THAILAND
CHILE SPEC,MADE IN THAILAND
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
MADE IN JAPAN
CHILE SPEC,MADE IN JAPAN
90119T0260
main90119-T0260
90178T0007
main90178-T0007
9017906274
main90179-06274
90466T0022
main90466-T0022
90466T0039
main90466-T0039
9167180616
main91671-80616
9613241000
main96132-41000
9613741301
main96137-41301
15 parts on this diagram · 9 diagrams in section
