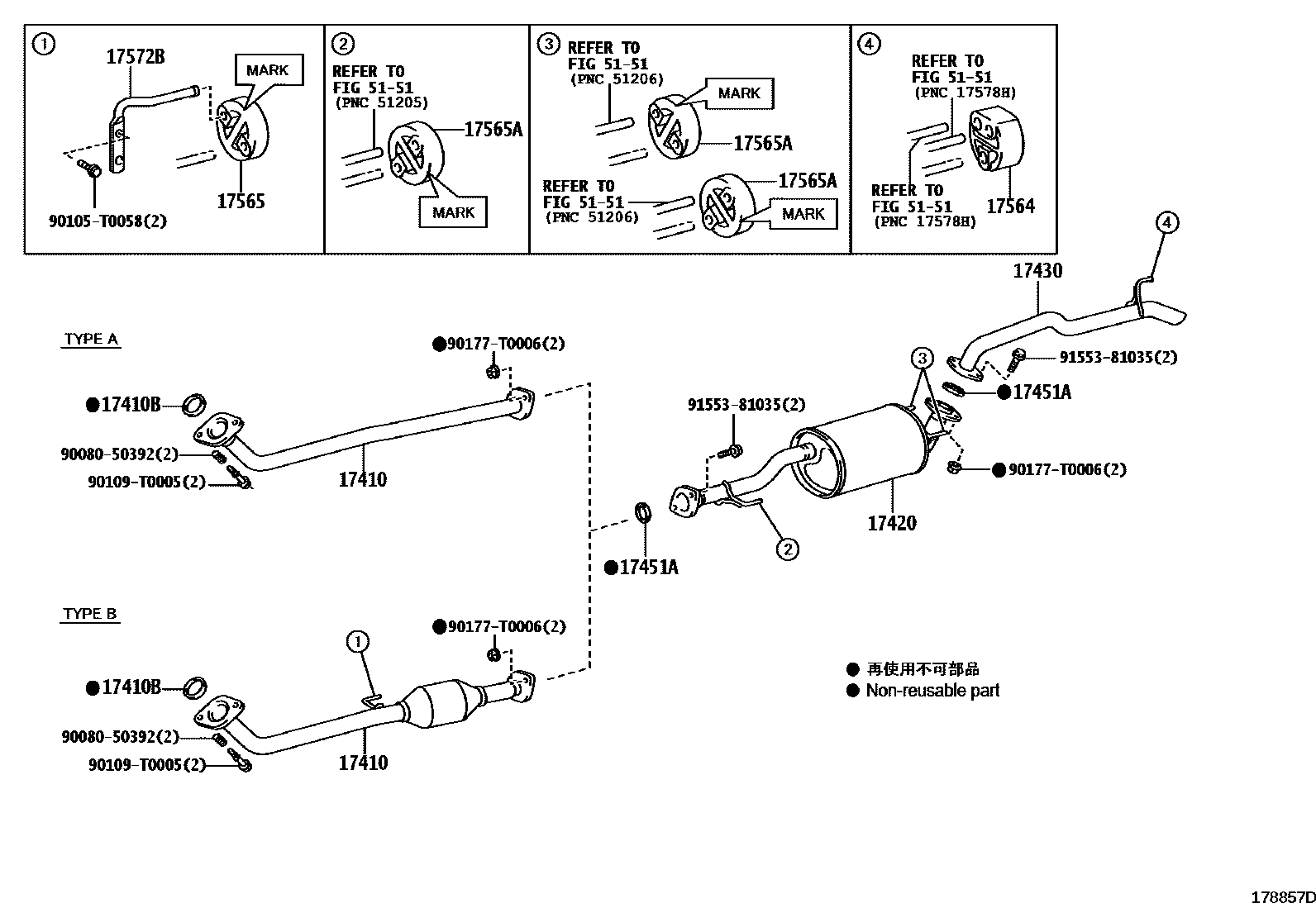

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
main17401-0C550i2TRFE..TGN156..L..LA;2TRFE..TGN156..S..GCC;2TRFE..TGN166..AGTSU..L;2TRFE..TGN166..IDNSU..S..GCC;2TRFE..TGN166..LHD..IDNSU..(GEN,LA,PH);2TRFE..TGN166..(AGTSU,THSUV,V201507-202010
MARK 3T
MARK=CL
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
sub17410-0E081
17410BGASKET, EXHAUST PIPE
MADE IN THAILAND
MADE IN INDIA
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
main17405-0L210i1GDFTV..GUN156..THSUV..(H,L);1GDFTV..GUN156..RHD..THSUV..(M,S);1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN155,16#,KUN156,165,201507-202104
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
MADE IN THAILAND
MADE IN INDIA
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L070
MARK:17565-0L070
QATAR SPEC(EURO 4 REGULATION),MARK:17565-0L070
SAUDI ARABIA SPEC(EURO4 REGULATION),MARK:17565-0L070
GCC SPEC(EURO 4 REGULATION),MARK:17565-0L070
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L070
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L070
PAINTED=NOTHING
MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
NO MARK
PAINTED=PURPLE
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
main17565-0L080i2TRFE..TGN166;1G#,2GDFTV..GGN155,165,GUN15#,165..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV;1GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GUN166,KUN156,165,LAN155,TGN156,168201610-202007
MARK:17565-0L080
MADE IN INDIA
MARK:17565-0L090
NO MARK
MADE IN THAILAND
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
SAUDI ARABIA SPEC(EURO4 REGULATION)
GCC SPEC(EURO 4 REGULATION)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
QATAR SPEC(EURO 4 REGULATION)
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
90177T0006
main90177-T0006
9155381035
main91553-81035
17 parts on this diagram · 5 diagrams in section
