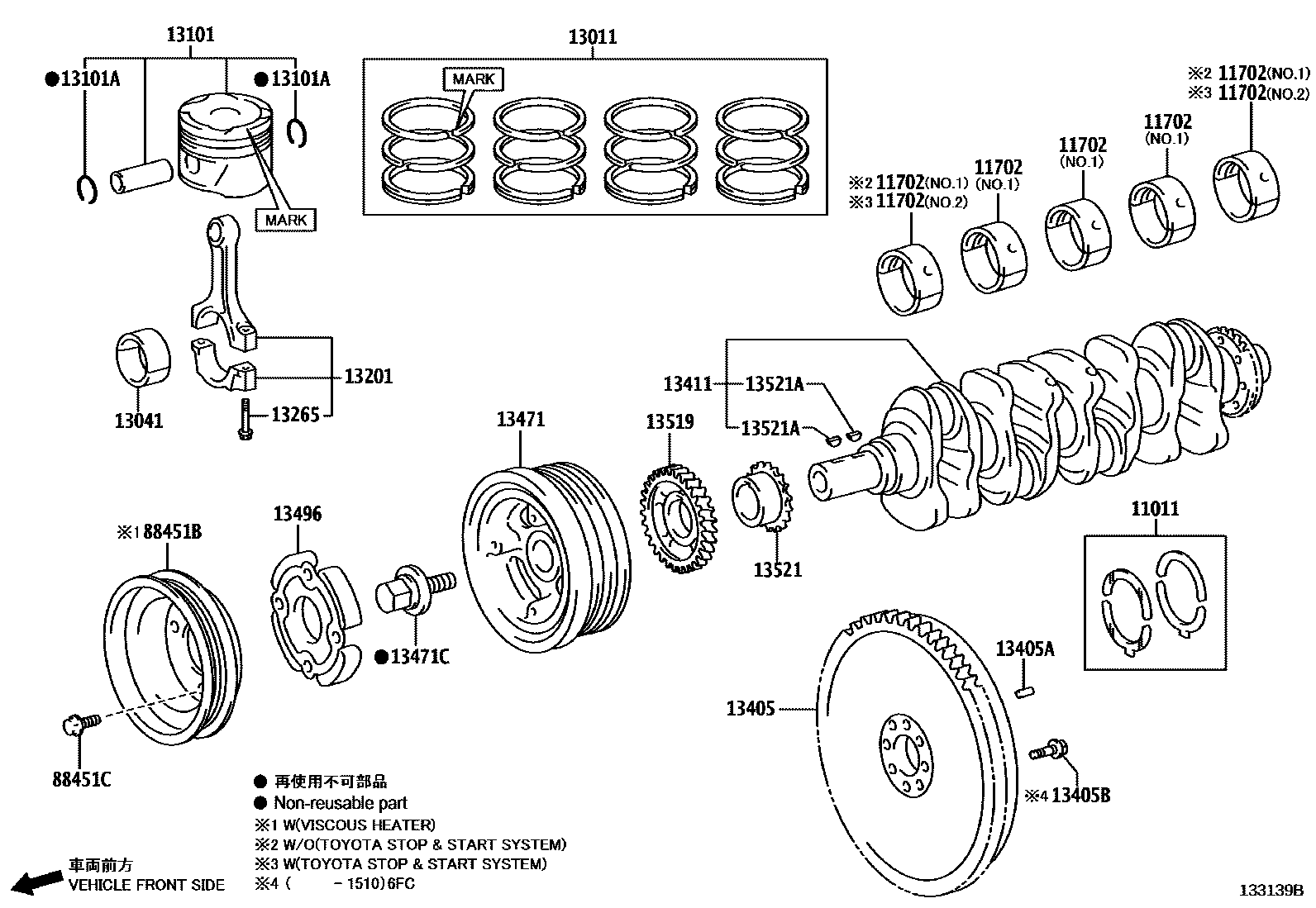

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD,(L)
STD,(J)
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
MARK 2,NO.1,*652
MARK 3,NO.1,*652
MARK 4,NO.1,*652
main11701-0E010-05i2GDFTV..GUN165..6F..GCC;2GDFTV..GUN165..(H,S)..GCC;2GDFTV..GUN165..(AGTSU,VNSUV)..L;2GDFTV..GUN165..RHD..(IDNSU,MASUV,SASUV);2GDFTV..GUN155..(L,M,S)..(GEN,IDN,MA,SA201507-202104
MARK 5,NO.1,*652
main11701-0E010-06i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..6FC..(PH,TH,VN)201507-202104
MARK 6,NO.1,*652
MARK 2,NO.2,*652
MARK 3,NO.2,*652
main11701-0E020-04i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..6FC..(PH,TH,VN)201507-202012
MARK 4,NO.2,*652
MARK 5,NO.2,*652
main11701-0E020-06i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..6FC..(PH,TH,VN)201507-202012
MARK 6,NO.2,*652
MARK 2,NO.1,*650
MARK 3,NO.1,*650
MARK 4,NO.1,*650
MARK 5,NO.1,*650
MARK 6,NO.1,*650
MARK 2,NO.1,(J)
MARK 3,NO.1,(J)
MARK 4,NO.1,(J)
MARK 5,NO.1,(J)
MARK 6,NO.1,(J)
MARK 2,NO.2,(J)
sub11701-35040
MARK 4,NO.2,(J)
sub11701-35040
MARK 5,NO.2,(J)
sub11701-35040
U/S 0.25
U/S 0.25
main11704-75032i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104
U/S 0.25
sub11704-75033
U/S 0.25,REFER REPAIR MANUAL
sub11704-75033
U/S 0.50
U/S 0.50
13011RING SET, PISTON
STD,#,(L)
STD,(L)
main13011-0E022i2GDFTV..GUN165..6FC..SA;2GDFTV..GUN165..RHD..(M,S);1GDFTV..GUN156..LHD..6F..(BZAGT,SA);1GDFTV..GUN156..6FC..(BZAGT,GEN,PKN,SA);1GDFTV,2GDFTV..GUN155,166..RHD..6FC..202005-202104
STD,MARK=1G,(L)
STD
STD,MARK=G1,(J)
sub13011-11201
STD
STD
STD
main13011-75200i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104
STD,(J)
STD,#,(J)
STD,*555
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 3,THA SOURCED PARTS
sub13041-0E021
MARK 2,IND SOURCED PARTS
sub13041-0E041
MARK 3,IND SOURCED PARTS
sub13041-0E041
MARK 4,IND SOURCED PARTS
sub13041-0E041
MARK 5,IND SOURCED PARTS
sub13041-0E041
MARK 6,IND SOURCED PARTS
sub13041-0E041
MARK2,REFER R/M
MARK3,REFER R/M
MARK4,REFER R/M
MARK5,REFER R/M
MARK6,REFER R/M
MARK 2,(J)
sub13041-11051
main13041-11060-02i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
MARK 2,(J)
sub13041-11061
main13041-11060-03i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
MARK 3,(J)
sub13041-11061
main13041-11060-04i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
MARK 4,(J)
sub13041-11061
main13041-11060-05i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
MARK 5,(J)
sub13041-11061
main13041-11060-06i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
MARK 6,(J)
sub13041-11061
MARK 1
MARK 2
MARK 3
MARK 4
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,*555
STD,*163
STD,*555
STD,MARK 1,MARK=1GD20,(L)
sub13101-0E021
main13101-0E020-01i1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA201610-202012
STD,MARK 1,MARK=1GD20
sub13101-0E021
STD,MARK 2,MARK=1GD20,(L)
sub13101-0E021
main13101-0E020-02i1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA201610-202012
STD,MARK 2,MARK=1GD20
sub13101-0E021
STD,MARK 1,REFER R/M
STD,MARK 2,REFER R/M
STD,MARK 3,REFER R/M
STD,MARK 1,REFER R/M
STD,MARK 2,REFER R/M
STD,MARK 3,REFER R/M
STD,MARK 1,MARK=2GD80
STD,MARK 2,MARK=2GD80
main13101-11190-01i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
STD,MARK 1,MARK=1GD20,(J)
sub13101-11191
main13101-11190-02i1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA)201507-201809
STD,MARK 2,MARK=1GD20,(J)
sub13101-11191
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
sub13201-09B81
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,IND SOURCED PARTS
MARK B,IND SOURCED PARTS
MARK C,IND SOURCED PARTS
MARK A,(J)
MARK B,(J)
MARK C,(J)
main13201-11050-A0i1GDFTV..GUN156..6F..ARL;1GDFTV..GUN156,166..BZAGT,GCC,GEN,LA,PH,PKN,SA,VN201507-202104
MARK A,(J)
MARK B,(J)
MARK C,(J)
(J)
(J)
13405FLYWHEEL SUB-ASSY
MARK 0C030
MARK 0C040
main13405-0E020i1GDFTV,2GDFTV..GUN15#,16#..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
sub13405-0E100
ARG SOURCED PARTS
ARG SOURCED PARTS
IND SOURCED PARTS
sub13405-0E101
MARK=0L021
(J)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,(J)
L=23,OD=8
L=23,OD=8,#,(J)
main90250-10192i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN165..(THSUV,VNSUV)..6F..(TH,VN)201507-202008
L=22,OD=10,(J)
L=22,OD=10,(L)
L=22,OD=10
L=23,OD=8
L=23,OD=8,#,(L)
L=15,OD=5,(L)
L=15,OD=5
13405BBOLT, FLYWHEEL SETTING
(J)
main90105-13015i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201808-202008
(J)
(L)
(L)
#,(J)
#,(L)
13411CRANKSHAFT
#,(L)
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
(J)
(J)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
#,(J)
#,(L)
main90119-18003i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
(J)
(L)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),MADE IN THAILAND
main13521-0C030i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201707-202104
(L),MADE IN IDN
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
#,(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
(J)
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451CBOLT, FLANGE W/WASHER
20 parts on this diagram · 6 diagrams in section
