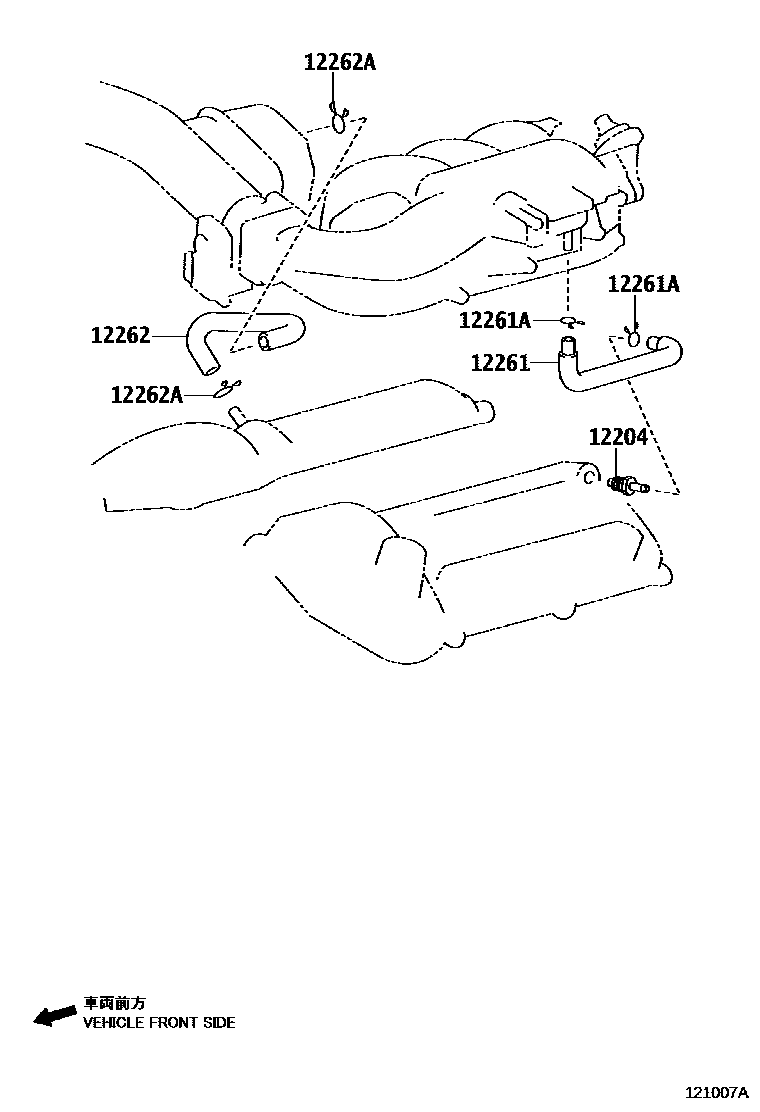

VENTILATION HOSE

0001 1 0002 1 0003 1COLD SPEC 0004 1 0005 1 0006 1 0007 1 0008 1ASIA COLD COUNTRY SPEC

12204VALVE SUB-ASSY, VENTILATION

main12204-0C030i2TRFE..TGN168;2TRFE..TGN156..KZS¥1,000201607-202010

main12204-0C030i2TRFE..TGN156,166..THSUV..(GCC,TH)¥1,000201507-202005

*163

main12204-0C030i2TRFE..TGN166..IND¥1,000201512-202104

*447

main12204-31030i1GRFE..GGN155,165¥800201512-202101

12261HOSE, VENTILATION

main12261-0C030i2TRFE..TGN166..IND201512-202104

*447

main12261-0C030i2TRFE..TGN168201607-202010

main12261-0C040i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

*163

main12261-0E010i1GDFTV..GUN156..THSUV..(H,L);1GDFTV..GUN156..RHD..THSUV..(M,S);1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,MASUV,SASUV,THSU201507-202104

THA SOURCED PARTS

main12261-0E020i1GDFTV..GUN156,166..IND201610-202012

IND SOURCED PARTS

main12261-0L021i2KDFTV..KUN165201603-201709

main12261-0L030i1KDFTV..KUN156201512-201709

main12261-0P060i1GRFE..GGN155,165201512-202101

main12261-11240i2GDFTV..GUN155,165..IDNSU..6FC..GCC¥1,940201507-202008

(J)

main12261-54200i5LE..LAN155¥520201603-202009

main12261-75140i2TRFE..TGN156..KZS¥400201708-202005

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0026i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

#,(L)

main90466-T0032i2KDFTV..KUN165201603-201709

main90467-14001i2TRFE..TGN166..IND¥70201507-202104

#,(J)

main90467-14017i1GRFE..GGN155,165¥110201512-202101

main90467-18003i5LE..LAN155¥120201603-202009

12262HOSE, VENTILATION, NO.2

main12262-0C050i2TRFE..TGN166..IND201512-202104

main12262-0C060i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

main12262-0C070i2TRFE..TGN156..MA201811-202012

main12262-0E010i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

main12262-0L010i1KDFTV..KUN156..AGTSU,SASUV201512-201709

main12262-0P090i1GRFE..GGN155,165201512-202101

main12262-75240i2TRFE..TGN156..KZS¥640201708-202005

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005i1GDFTV..GUN156,166..IND¥120201507-202104

main90466-T0027i2TRFE..TGN156..MA201811-202012

NO.1

main90466-T0027i2TRFE..TGN156..MA201507-202104

(L),NO.1

main90466-T0075i2TRFE..TGN166..IND201908-202104

(L),NO.2

main90467-21004i2TRFE..TGN166..IND¥130201507-202104

(J),NO.1

main90467-21152i1GRFE..GGN155,165¥350201512-202101

main90467-24038i2TRFE..TGN168;2TRFE..TGN166..L..GEN;2TRFE..TGN156..(L,M)..(GEN,KZS);2TRFE..TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,SA,VN);2TRFE..TGN156,166..(AGTSU,INDSU,SASUV)..(¥180201507-202012

NO.2

main90467-24038i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV¥180201908-202104

(J),NO.2

5 parts on this diagram · 8 diagrams in section
