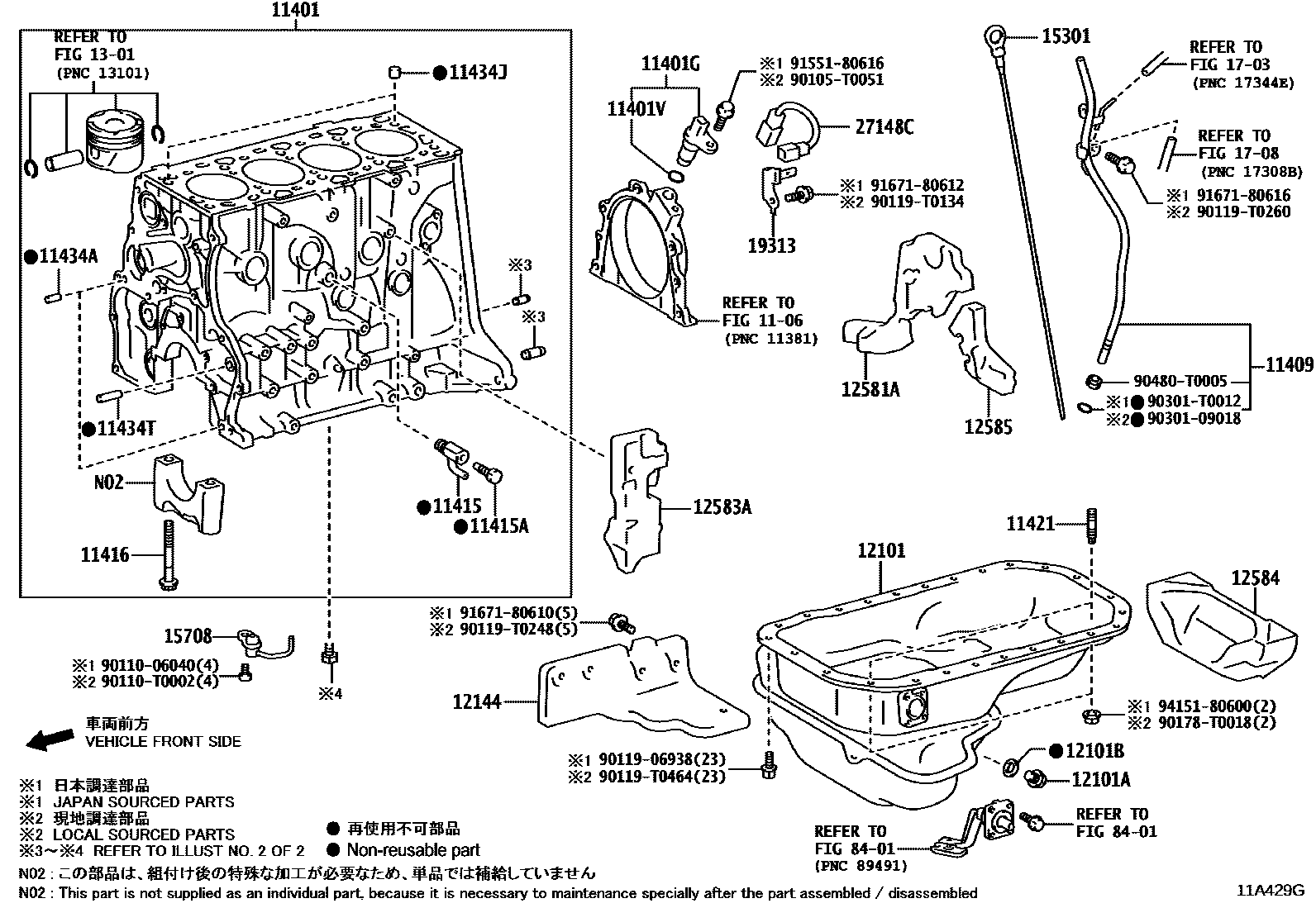

CYLINDER BLOCK
1106
11401BLOCK SUB-ASSY, CYLINDER
sub11401-39796
sub11401-80838
main11401-09790i1GDFTV..GUN156..IDNSU..6FC..LA;1GDFTV..GUN156..(IDNSU,THSUV)..6F;1GDFTV..GUN156..(AGTSU,VNSUV)..6FC..(M,S)..(BZAGT,VN)201507-201907
sub11401-09791
sub11401-09792
sub11401-09793
main11401-09800i2GDFTV..GUN165..VNSUV..L;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..6F..(GCC,IDN,SA,TH);2GDFTV..GUN165..LHD..(THSUV,VNSUV)..(H,S)201507-201907
sub11401-09801
sub11401-09802
sub11401-09821
sub11401-09822
sub11401-09823
sub11401-80845
sub11401-80858
sub11401-80A06
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
(J)
(L)
main90910-09087i1GRFE..GGN155,165;1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202101
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
JAPAN SOURCED PARTS
(J)
main90910-02191i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
*272
main90910-02191i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
MADE IN INDONESIA
(L)
*582
11421BOLT, STUD(FOR OIL PAN)
main90126-06028i1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-08120i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008
L=18,OD=8,*272
L=18,OD=8,*582
main90250-T0007i1GDFTV..GUN156,166..IND;1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201512-202012
L=18,OD=8
L=8,OD=11
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
*272
*582
(L)
main90253-T0007i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
(J)
(L)
12101PAN SUB-ASSY, OIL
main12101-0C030i2TRFE..TGN168;2TRFE..TGN156,166..5F..(GCC,KZS);2TRFE..TGN156,166..M..(LA,MA,VN);2TRFE..TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA,PKN,SA,VN)201512-202104
CS AMERICA SPEC
SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
MADE IN INDONESIA
MADE IN THAILAND
BRAZIL 2017- DIESEL OBD
MADE IN THAILAND
ARGENTINA SPEC(EURO 4 REGULATION)
main12101-0E010i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
*582
MADE IN INDIA
main12101-11120i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008
*272
sub12101-35100
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i2TRFE..TGN156,16#..AGTSU..L;2TRFE..TGN166..(AGTSU,IDNSU)..(BZAGT,PH,VN);2TRFE..TGN156..(H,S)..(BZAGT,GEN,KZS,PKN,SA);2TRFE..TGN156,166..(EPTSU,IDNSU,MASUV,SASUV,THS201507-202104
*272
*582
main90341-T0004i1GDFTV..GUN156,166..IND;1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201512-202012
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*582
*272
(J)
(L)
12144SILENCER, OIL PAN COVER
MADE IN THAILAND
BRAZIL 2017- DIESEL OBD
ARGENTINA SPEC(EURO 4 REGULATION)
main12144-0E010i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
*582
MADE IN INDIA
main12144-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
*272
12581AINSULATOR, CYLINDER BLOCK, NO.1
*582
main12581-0E010i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
main12581-11020i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008
*272
12583AINSULATOR, CYLINDER BLOCK, NO.3
main12583-0E010i1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA201610-202010
*582
main12583-11020i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
*272
12585INSULATOR, CYLINDER BROCK, NO.5
main12585-0E010i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
*582
main12585-11020i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008
*272
1301
15301GAGE SUB-ASSY, OIL LEVEL
MADE IN THAILAND
MADE IN INDONESIA
ARGENTINA SPEC(EURO 4 REGULATION)
sub15301-0E011
*582
sub15301-0E011
*582
main15301-11070i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
*272
15708NOZZLE SUB-ASSY, OIL, NO.1
MADE IN INDONESIA
(L)
main15708-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008
(J)
MADE IN JAPAN
1703
1708
19313BRACKET, CRANK POSITION SENSOR HARNESS
*582
main19313-0E010i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-202010
main19313-11010i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008
*272
27148CWIRE, CONNECTING
MADE IN THAILAND
MADE IN INDIA
*272
8401
90105T0051
main90105-T0051
9011006040
main90110-06040
90110T0002
main90110-T0002
9011906938
main90119-06938
90119T0134
main90119-T0134
90119T0248
main90119-T0248
90119T0260
main90119-T0260
90119T0464
main90119-T0464
90178T0018
main90178-T0018
9030109018
main90301-09018
90301T0012
main90301-T0012
90480T0005
main90480-T0005
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612
9167180616
main91671-80616
9415180600
main94151-80600
45 parts on this diagram · 8 diagrams in section
