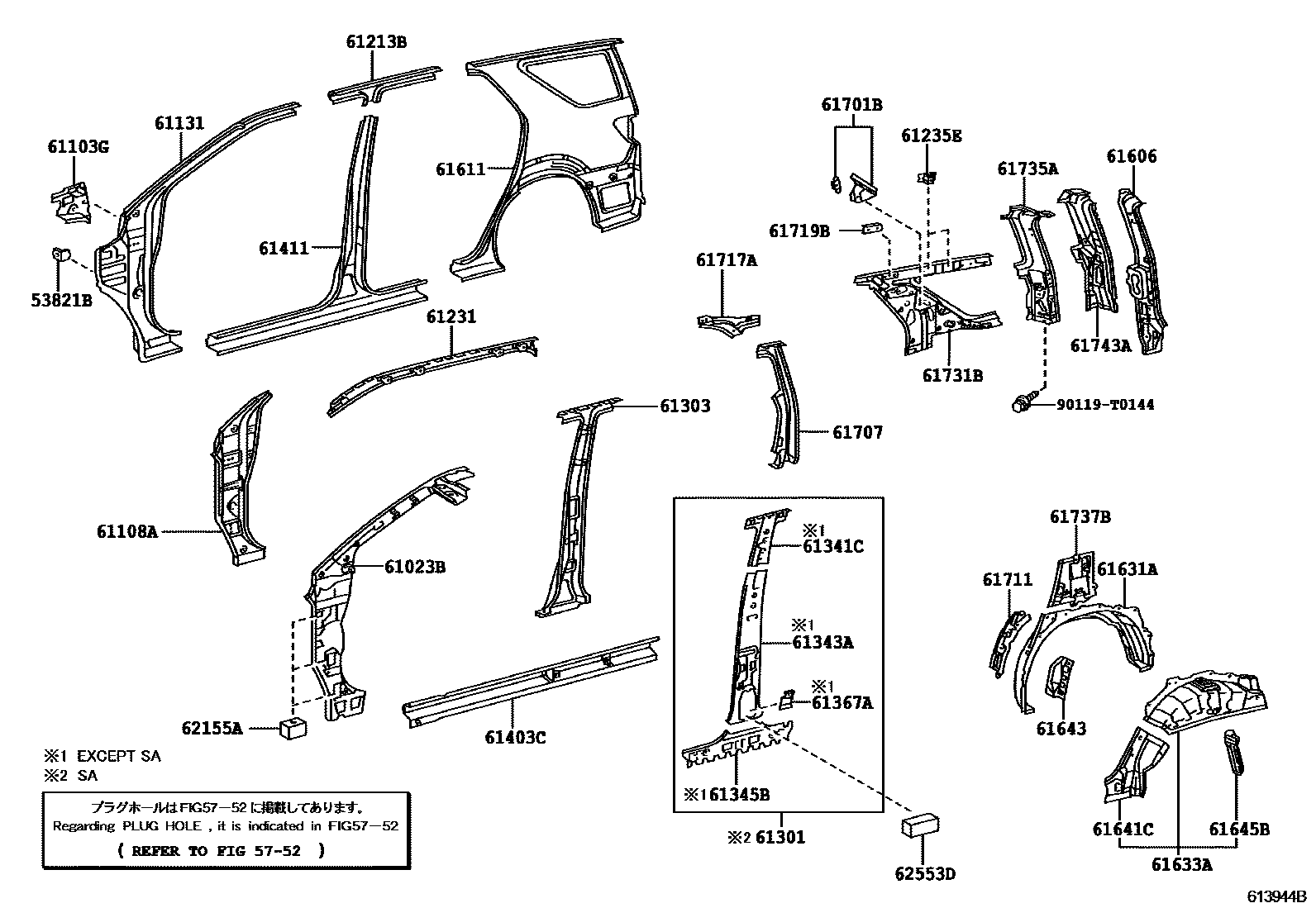

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE 0003 1RH SIDE 0004 1LH SIDE

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iKUN51,6#..(5F,5FC)..IND201107-201703

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K022iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

sub61023-0K091

main61023-0K091iKUN51,6#..(5F,5FC)..IND201107-201703

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K080iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K040iGGN50,TGN51..EPT201107-201703

61231RAIL, ROOF SIDE, INNER RH

main61210-0K040iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

61235EBRACKET, ASSIST GRIP, NO.1

main61235-0K030iKUN51,6#..(5F,5FC)..IND201107-201703

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0K904iKUN51..RHD..SA;KUN51..LHD..5F..SA;GGN50,60,KUN6#,LAN50,TGN51..SA201108-201512

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K060iKUN51,6#..(5F,5FC)..IND201107-201703

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K040iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN201107

61343APILLAR, CENTER BODY, INNER RH

main61343-0K041iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN201107

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K010iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN201107

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K010iGGN50,60,KUN5#,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN201107

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K010iKUN60,TGN51,61..VN201107-201703

61411PANEL, ROCKER, OUTER RH

main61411-0K040iKUN51,6#..(5F,5FC)..IND201107-201703

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-0K060iKUN51,6#..(5F,5FC)..IND201107-201703

61611PANEL, QUARTER, RH

main61611-0K060iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0K031iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0K030iGGN50,TGN51..EPT201107-201703

main61607-0K040iTGN61..HTWCF201110-201510

AIR CONDITIONER-SINGLE AIR CONDITIONER

main61607-0K040iTGN61..HTWCF201110-201510

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main61607-0K040iTGN61..HTWCF201110-201510

FRONT HEATER-WITH(AIR CONDITIONER)

main61607-0K040iKUN51..DLX201204-201510

main61607-0K040iTGN61..4FC..HTWC..LA201212-201510

OWNER'S MANUAL-ENGLISH & SPANISH(SEPARATED)

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0K030iKUN51,6#..(5F,5FC)..IND201107-201703

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61643-0K020iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0K030iKUN51,6#..(5F,5FC)..IND201107-201703

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-0K020iKUN51,6#..(5F,5FC)..IND201107-201703

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-0K020iKUN51,6#..(5F,5FC)..IND201107-201703

61711PANEL, ROOF SIDE, OUTER RH

main61711-0K020iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

61719BBRACKET, ROOF SIDE, INNER

main61719-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

61731BPANEL, ROOF SIDE, INNER RH

main61731-0K050iKUN51,6#..(5F,5FC)..IND201107-201703

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0K021iTGN61..HTWCF201110-201509

FRONT HEATER-WITH(AIR CONDITIONER)

sub61735-0K903

main61735-0K021iTGN61..HTWCF201110-201509

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub61735-0K903

main61735-0K021iTGN61..HTWCF201110-201509

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

sub61735-0K903

main61735-0K021iKUN51..DLX201204-201509

sub61735-0K903

main61735-0K021iTGN61..4FC..HTWC..LA201212-201509

OWNER'S MANUAL-ENGLISH & SPANISH(SEPARATED)

sub61735-0K903

main61735-0K903iTGN51..PKN201107-201703

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61503-0K041iKUN51,6#..(5F,5FC)..IND201107-201703

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

62553DPAD, PILLAR, NO.3

main62557-0K010iTGN51..PKN201107-201703

main62557-0K050iGGN50..LA;KUN51..DLX;KUN51..DCR..(CO,LA);GGN50,TGN51,61..(4FC,5F)..(CO,LA)201110-201303

main62557-0K060iKUN51..IDSUV..LA;GGN50,TGN61..IDSUV..(4FC,5FC)..(GEN,LA)201107-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62557-0K100iGGN50..5F..CO;GGN50,TGN61..(4FC,5FC)..HTWC..LA;KUN51,TGN61..(DCR,HTWCF)..(CO,LA)201110-201303

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62557-0K100iKUN51..IDSUV..(4FC,5F);GGN50,KUN60,TGN51,61..IDSUV201111-201510

90119T0144

main90119-T0144

36 parts on this diagram · 4 diagrams in section
