FRAME

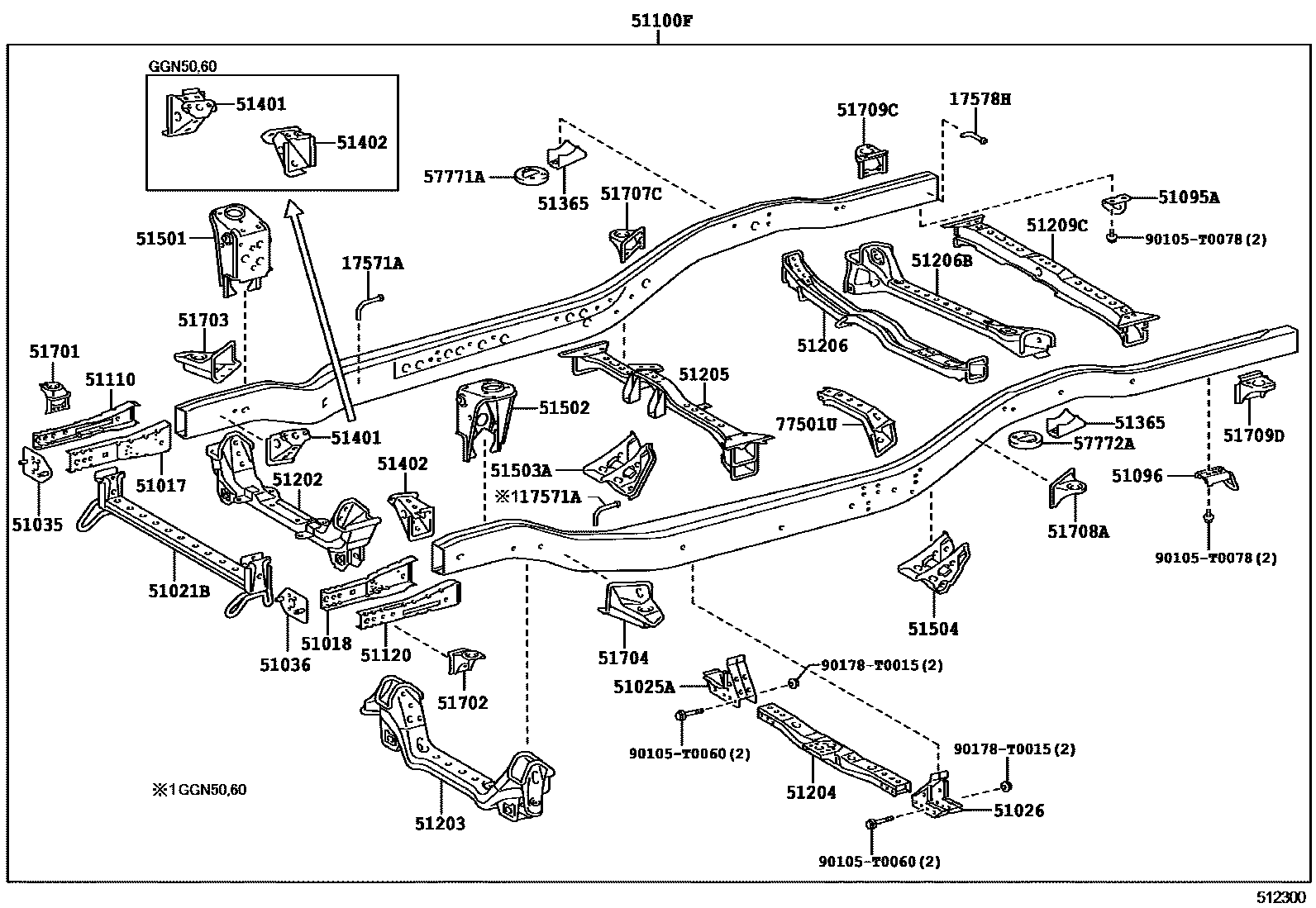

0001 1 0002 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1KDFTV,2KDFTV..KUN51,6#..(5F,5FC)..IND201107-201703

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L010i1KDFTV,2KDFTV..KUN51,6#..(5F,5FC)..IND201107-201703

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-0K020iKUN51,6#..(5F,5FC)..IND¥3,760201107-201703

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-0K020iKUN60,TGN51,61..VN¥3,760201107-201703

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-0K020iTGN51..PKN¥7,500201107-201703

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0K010iKUN60,TGN61..IDSUV..GEN;GGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

sub51025-0K030

main51025-0K030iKUN51,6#..(5F,5FC)..IND201107-201703

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-0K010iKUN60,TGN61..IDSUV..(GCC,IDN,PHL)201110-201510

sub51026-0K030

main51026-0K030iKUN51,6#..(5F,5FC)..IND201107-201703

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0K010iTGN51..PKN¥1,510201107-201703

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0K010iKUN51,6#..(5F,5FC)..IND¥1,510201107-201703

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iKUN60,TGN51,61..VN201107-201703

51100FFRAME SUB-ASSY

main51001-0KB91iKUN6#..(4FC,5F)..IND201201-201608

main51001-0KC03iTGN61..SUVW..(GEN,IDN,PHL,TH,VN)201107-201611

main51001-0KC13iTGN51..SUVW..(GEN,IDN,MA,VN)201107-201211

sub51001-0KC14

main51001-0KC14iTGN51..PKN201212-201611

main51001-0KC24iKUN51..SUVW..5F..GEN;KUN51..LHD..SUVW..GEN;KUN5#..SUVW..(MA,PHL,TH)201107-201601

main51001-0KC34iKUN6#..SUVW..(4FC,5F)..(GEN,IDN,PHL,TH,VN)201107-201611

main51001-0KC52iTGN51..SUVW..(EPT,GCC)201107-201211

sub51001-0KC53

main51001-0KC53iTGN51..SUVW..(EPT,GCC)201212-201612

main51001-0KC61iKUN51..CO,LA201110-201302

sub51001-0KC62

main51001-0KC62iKUN51..SUVW..(CO,LA)201303-201309

sub51001-0KC63

main51001-0KC63iKUN51..SUVW..(CO,LA)201310-201510

main51001-0KC73iLAN50201108-201211

sub51001-0KC74

main51001-0KC74iLAN50201212-201512

main51001-0KC81iTGN61..4FC..(CO,LA)201110-201302

sub51001-0KC82

main51001-0KC82iTGN61..4FC..(CO,LA)201303-201309

sub51001-0KC83

main51001-0KC83iTGN61..4FC..(CO,LA)201310-201510

main51001-0KC91iTGN61..5F..(CO,LA)201110-201302

sub51001-0KC92

main51001-0KC92iTGN61..5F..(CO,LA)201303-201309

sub51001-0KC93

main51001-0KC93iTGN61..SUVW..5F201310-201510

main51001-0KD11iGGN50..5FC..(ANCOM,CO,LA)201110-201302

sub51001-0KD12

main51001-0KD12iGGN50..SUVW..5FC..(ANCOM,CO,LA)201303-201309

sub51001-0KD13

main51001-0KD13iGGN50..SUVW..5FC..(CO,LA)201310-201510

main51001-0KD21iGGN50..5F..CO201111-201211

main51001-0KD22iGGN50..5F..CO201212-201302

sub51001-0KD23

main51001-0KD23iGGN50..5F..CO201303-201309

sub51001-0KD24

main51001-0KD24iGGN50..5F..CO201310-201510

main51001-0KD31iGGN60..ANCOM201204-201302

sub51001-0KD32

main51001-0KD32iGGN60..ANCOM201303-201309

sub51001-0KD33

main51001-0KD33iGGN60..ANCOM201310-201502

main51001-0KD82iTGN51..SA201108-201211

sub51001-0KD83

main51001-0KD83iTGN51..SA201212-201512

main51001-0KD93iKUN51..SA;KUN51..SASUV201108-201512

main51001-0KE03iKUN6#..SA201108-201512

main51001-0KE12iGGN50..SA201108-201512

main51001-0KE22iGGN60..SA201108-201512

main51001-0KJ42iKUN51..THSUV;KUN51..5F..IND;KUN51..RHD..SUVW..(4FC,5FC)..(GEN,IND)201107-201608

main51001-0KJ51iTGN61..IDSUV..4FC..GCC201107-201308

main51001-0KJ61iTGN61..SUVW..5F..GCC201107-201308

main51001-0KJ71iGGN50..(SUVW,THSUV)..5FC..(GCC,GEN)201107-201612

main51001-0KJ81iGGN50..(SUVW,THSUV)..5F..(GCC,GEN)201107-201211

sub51001-0KJ82

main51001-0KJ82iGGN50..(SUVW,THSUV)..5F..(GCC,GEN)201212-201308

main51001-0KK61iTGN51..CO201111-201211

sub51001-0KK62

main51001-0KK62iTGN51..CO201212-201302

sub51001-0KK63

main51001-0KK63iTGN51..CO201303-201309

sub51001-0KK64

main51001-0KK64iTGN51..CO201310-201510

main51001-0KK70iGGN60..ANCOM201502

main51001-0KK90iKUN6#..5FC..TH201208-201504

main51001-0KL00iKUN6#..5FC..IND201301-201608

main51001-0KL70iTGN51..RHD..IDSUV201210-201510

sub51001-0KC14

main51001-0KL80iTGN51..IDSUV..GCC201210-201510

sub51001-0KC53

main51001-0KL90iKUN50..IDN;KUN51..IDSUV..5F..GEN;KUN51..LHD..IDSUV..(GEN,PHL)201210-201510

sub51001-0KC24

main51001-0KM00iGGN50..IDSUV..5FC201210-201510

sub51001-0KJ71

main51001-0KM10iGGN50..IDSUV..5F201210-201510

sub51001-0KJ82

main51001-0KM20iTGN61..IDSUV..4FC..GCC201210-201510

sub51001-0KJ51

main51001-0KM30iTGN61..IDSUV..(GEN,IDN,PHL)201210-201510

sub51001-0KC03

main51001-0KM40iTGN61..IDSUV..5F201210-201510

sub51001-0KJ61

main51001-0KM50iKUN60..IDSUV201210-201510

sub51001-0KC34

main51001-0KM80iTGN51..KZS201403-201703

main51001-0KN40iKUN51..IDSUV..LA;KUN51..RHD..IDSUV..4FC201308-201510

sub51001-0KJ42

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-0K020iKUN51,6#..(5F,5FC)..IND¥3,600201107-201703

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-0K020iKUN51,6#..(5F,5FC)..IND¥3,600201107-201703

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-0K031iKUN60,TGN51,61..VN¥26,300201107-201703

main51201-0K061iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K030iKUN60,TGN51,61..VN¥27,600201107-201703

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0K010iKUN61..4FC;KUN61..5F..SA;KUN60..(4FC,5F)..(GEN,IDN,PHL,SA,TH,VN);GGN60,TGN61..(4FC,5FC)..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

main51203-0K021iKUN51..SUVW..(CO,LA);GGN50..SUVW..5FC..(CO,LA)201110-201510

sub51203-0K090

main51203-0K030iTGN61..5F201107-201510

main51203-0K051iGGN50,TGN51..(4FC,5F)..CO201111-201211

sub51203-0K100

main51203-0K052iGGN50,TGN51..(4FC,5F)..CO201212-201510

main51203-0K090iGGN50..ANCOM201107-201612

main51203-0K100iGGN50,TGN51..IDSUV..(4FC,5F)201107-201211

sub51203-0K101

main51203-0K101iTGN51..EPT201210-201703

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0K032iGGN50,TGN51..EPT201107-201703

main51204-0K052iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN60,KUN60,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201611

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0K040iKUN51..PHL,TH;KUN51..RHD..5F..GEN;KUN51..LHD..(IDSUV,SUVW)..GEN;KUN50,6#,TGN51,61..GEN,IDN,MA,PHL,TH,VN201107-201611

main51205-0K060iKUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(A201107-201703

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-0K021iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201703

main51206-0K030iGGN50,KUN5#,60,TGN51,61..IDSUV201210-201510

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-0K010iTGN51..KZS201107-201703

51365STOPPER, REAR BUMPER

main57081-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0K010iTGN51..EPT201107-201703

main51401-0K020iKUN51..SUVW..(CO,LA)201110-201510

sub51401-0K050

main51401-0K030iLAN50201108-201512

main51401-0K040iGGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107-201612

main51401-0K050iKUN61..4FC;KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);KUN5#,60..GEN,IDN,MA,PHL,SA,TH,VN201107-201611

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0K010iTGN51,61..CO,GCC,GEN,IDN,KZS,LA,MA,PHL,SA,TH201107-201703

main51402-0K020iKUN51..SUVW..(CO,LA)201110-201510

sub51402-0K050

main51402-0K030iLAN50201108-201512

main51402-0K040iGGN50..EPT201107-201612

main51402-0K050iKUN51,6#..(5F,5FC)..IND201107-201611

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-0K020iGGN50,60..ANCOM201107-201703

main51501-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201303-201310

main51501-0K040iGGN50,60..ANCOM201310-201510

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-0K020iKUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,MA,PHL,SA,TH201107-201703

main51502-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201303-201310

main51502-0K040iGGN50,60..ANCOM201310-201510

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-0K020iKUN51,6#..(5F,5FC)..IND201107-201703

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-0K020iKUN51,6#..(5F,5FC)..IND201107-201703

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-0K020iGGN50,60,KUN5#,6#,LAN50,TGN51,61¥1,820201107-201605

sub51701-KK010¥1,330

main51701-KK010iKUN51,6#..IND¥1,330201605-201703

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-0K020iGGN50,60,KUN5#,6#,LAN50,TGN51,61¥1,820201107-201605

sub51701-KK010¥1,330

main51701-KK010iKUN51,6#..IND¥1,330201605-201703

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201605

main51707-0K020iTGN51..PKN201605-201703

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201605

main51708-0K020iKUN51,6#..IND201605-201703

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-0K010iKUN51,6#..(5F,5FC)..IND201107-201703

57771APLATE, REAR SPRING, RH

main57771-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201605

sub57771-KK010

main57771-KK010iKUN51,6#..IND201605-201703

57772APLATE, REAR SPRING, LH

main57771-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201605

sub57771-KK010

main57771-KK010iKUN51,6#..IND201605-201703

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K010iTGN51..KZS201107-201703

90105T0060

main90105-T0060

90105T0078

main90105-T0078¥150

90178T0015

main90178-T0015
