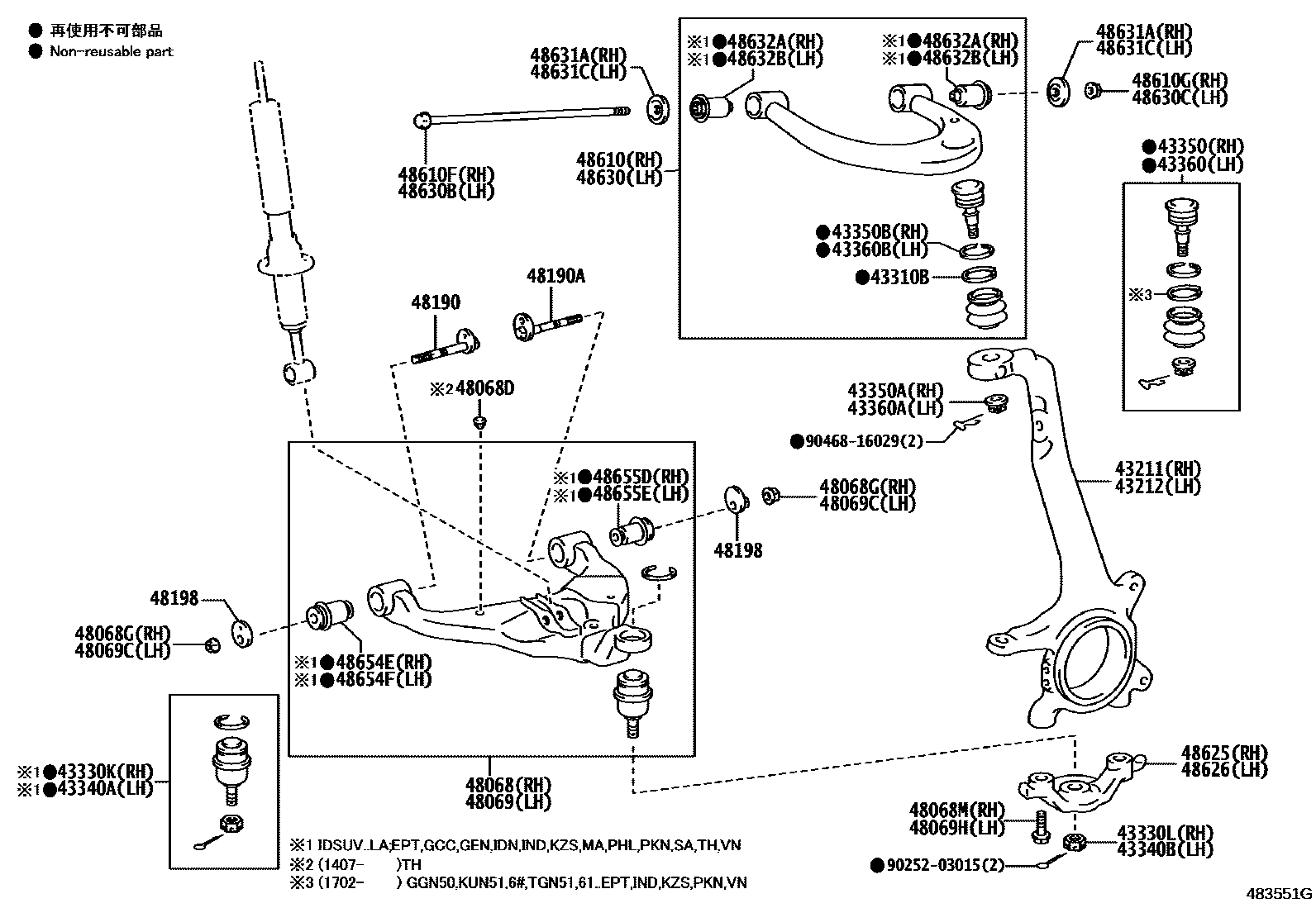

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0K030supersedes 43211-0K040iKUN60,TGN51,61..VN201107-201611

43212KNUCKLE, STEERING, LH

main43212-0K030supersedes 43212-0K040iTGN51..PKN201107-201609

43310BRING, SET (FOR DUST COVER)

main90580-10001×2iKUN51,6#..(5F,5FC)..IND201107-201608

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iKUN51,6#..(5F,5FC)..IND201107-201608

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201702

main43310-09017iTGN51201702-201703

main43310-09030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iTGN51..PKN201107-201609

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGGN50,TGN51..EPT201107-201612

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201702

main43310-09017iTGN51201702-201703

main43310-09030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iKUN51,6#..(5F,5FC)..IND201107-201608

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iTGN51..KZS201107-201703

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K040iKUN51,6#..(5F,5FC)..IND201107-201608

main48068-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-T1018×2iKUN51,6#,TGN61..TH201407-201504

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0081×2iKUN51,6#..(5F,5FC)..IND201107-201608

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201405

main90105-T0305×2iTGN51..KZS201405-201703

(L)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K040iTGN51..PKN201107-201609

main48069-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0081×2iGGN50,TGN51..EPT201107-201612

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107-201405

main90105-T0305×2iKUN60,TGN51,61..VN201405-201611

(L)

48190CAM ASSY, CAMBER ADJUST

main48190-0K010×2iKUN51,6#..(5F,5FC)..IND201107-201608

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-0K030×2iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

48198CAM, CAMBER ADJUST, NO.2

main48198-0K010×4iKUN51,6#..(5F,5FC)..IND201107-201608

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K040iKUN51,6#..(5F,5FC)..IND201107-201608

main48610-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iKUN51,6#..(5F,5FC)..IND201107-201608

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iKUN51,6#..(5F,5FC)..IND201107-201608

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K020iKUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,60,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH)201107

main48625-0K040iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K020iGGN50,TGN51..EPT201107-201612

main48626-0K040iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K040iKUN60,TGN51,61..VN201107-201611

main48630-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iKUN51,6#..(5F,5FC)..IND201107-201608

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-T2007×2iKUN51,6#..(5F,5FC)..IND201107-201608

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-T2007×2iKUN51,6#..(5F,5FC)..IND201107-201608

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K040×2iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48632-0K050×2iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

sub48632-0K110

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K040×2iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48632-0K050×2iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

sub48632-0K110

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K040iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48654-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K040iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48654-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K040iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48655-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K040iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

main48655-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-202110

9025203015

main90252-03015

9046816029

main90468-16029

41 parts on this diagram · 1 diagram in section
