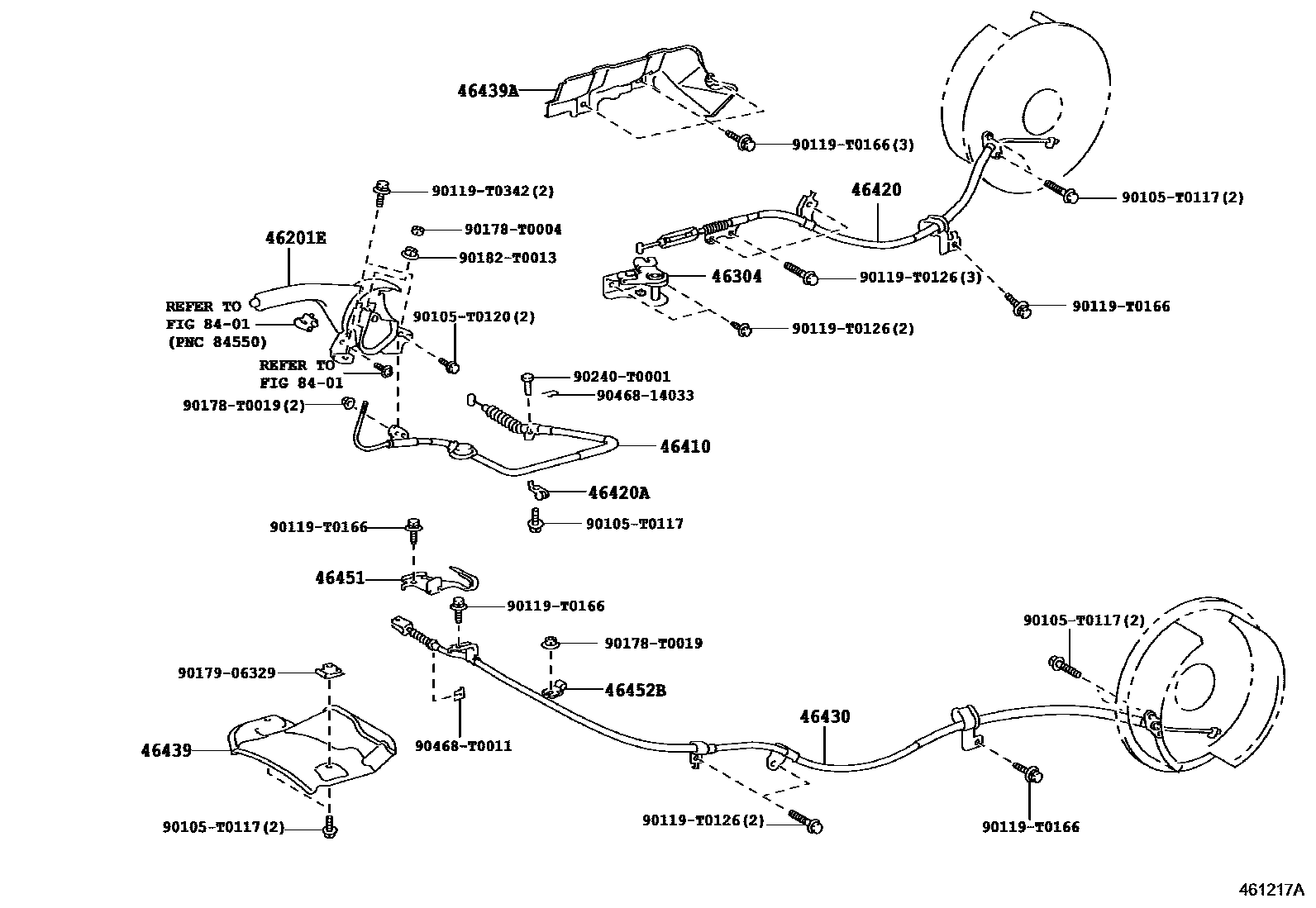

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K070-B0iKUN60,TGN61..TH;KUN51,61..5FC..TH201203-201308

DK.GRAY,TRIM1#

main46201-0K070-C0iKUN51,6#,TGN51,61..KZS,TH201308-201703

BLACK,TRIM2#,4#

main46201-0K070-E1iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,MA,PHL,PKN,TH,VN)201107-201308

ASH BROWN,TRIM4#

main46201-0K080-C0iKUN51,6#..IND201401-201608

BLACK,TRIM2#,4#

main46201-0K080-E1iKUN51,61..IND201201-201401

ASH BROWN,TRIM4#

main46201-0K090-C0iGGN50,KUN5#,60..IDSUV;TGN51,61..GEN,IDN,PHL201308-201510

BLACK,TRIM2#,4#

main46201-0K090-E1iGGN50,KUN51,60,TGN51,61..IDSUV201107-201308

ASH BROWN,TRIM4#

main46201-0K100-C0iGGN50,60,KUN51,6#,LAN50,TGN51..(SASUV,SUVW)..(GEN,SA)201310-201512

BLACK,TRIM2#,4#

main46201-0K100-E0iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201310

ASH BROWN,TRIM4#

main46201-0K110-C0iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201310-201510

BLACK,TRIM2#,4#

main46201-0K110-E0iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201310

ASH BROWN,TRIM4#

main46201-0K120-C0iGGN50,60..ANCOM201404

BLACK,TRIM4#

main46201-0K120-E0iGGN50,60..ANCOM201204-201404

ASH BROWN,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K021iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main46304-0K030iTGN51..KZS201107-201703

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K010iKUN51,61..5FC..TH;GGN50,60,KUN50,60,LAN50,TGN51,61..SUVW,THSUV;KUN51,61..(SASUV,SUVW,THSUV)..(CO,GEN,LA,PHL,SA)201107-201302

main46410-0K011iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201303

main46410-0K020iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main46410-0K030iKUN51,6#..IND201201-201608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K050iTGN51..PKN201107-201609

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iKUN51,6#..(5F,5FC)..IND201107-201608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K051iKUN51,6#..(5F,5FC)..IND201107-201608

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

main46439-0K030iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K050iKUN51,6#..(5F,5FC)..IND201107-201608

46451BRACKET, CABLE SUPPORT

main46451-0K040iKUN51,6#..(5F,5FC)..IND201107-201608

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

23 parts on this diagram · 1 diagram in section
