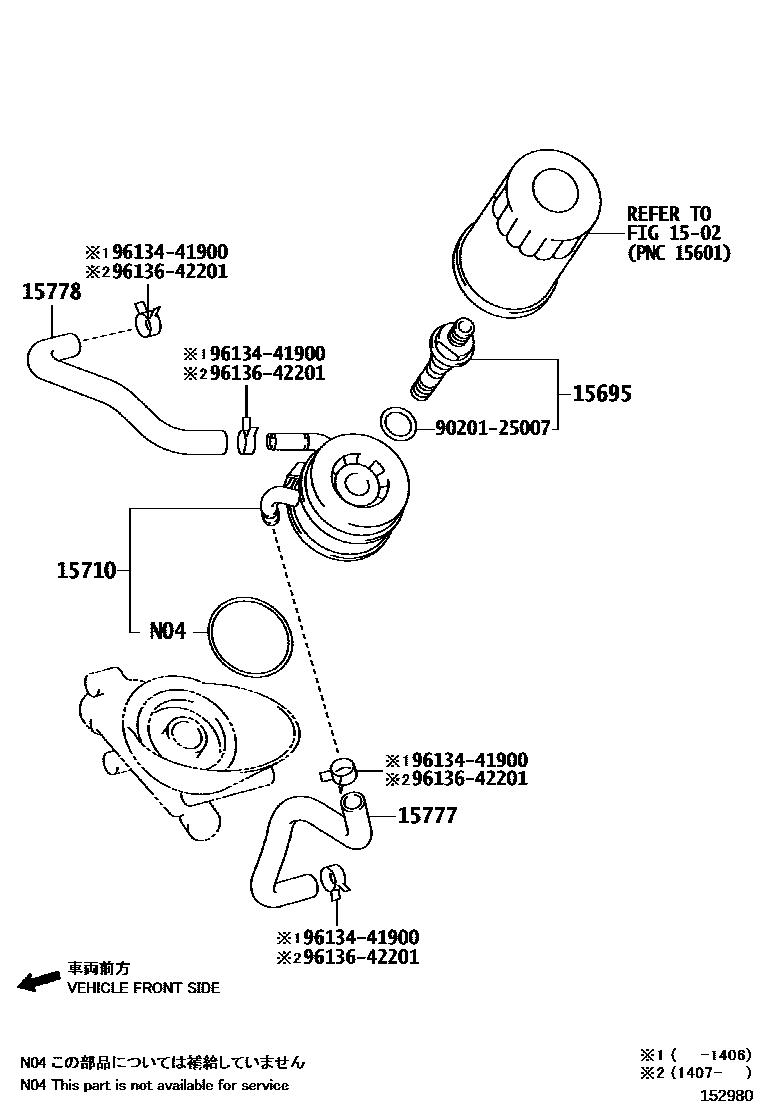

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1502

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

15710COOLER ASSY, OIL

main15710-0L010i2KDFTV..KUN60..5F..IND201107-201608

*130

main15710-0L020i1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51,61..IND,PHL,SA,TH201107-201608

*130

main15710-0L040i1KDFTV..KUN51..SUVW..(CO,LA)201110-201510

main15710-30010i1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)201107-201512

*360

main15710-30030i2KDFTV..KUN60..5F..TH201208-201608

*360

main15710-31010i1GRFE..GGN50..EPT201107-201612

main15710-54050i5LE..LAN50201108-201512

15777HOSE, OIL COOLER

main15777-0P020i1GRFE..GGN50,60201107-201612

(L)

main15777-31010i1GRFE..GGN50..EPT201107-201612

(J)

15778HOSE, OIL COOLER, NO.2

main15778-0P020i1GRFE..GGN50,60201107-201612

(L)

main15778-31010i1GRFE..GGN50..EPT201107-201612

(J)

9020125007

main90201-25007

9613441900

main96134-41900

9613642201

main96136-42201

8 parts on this diagram · 3 diagrams in section
