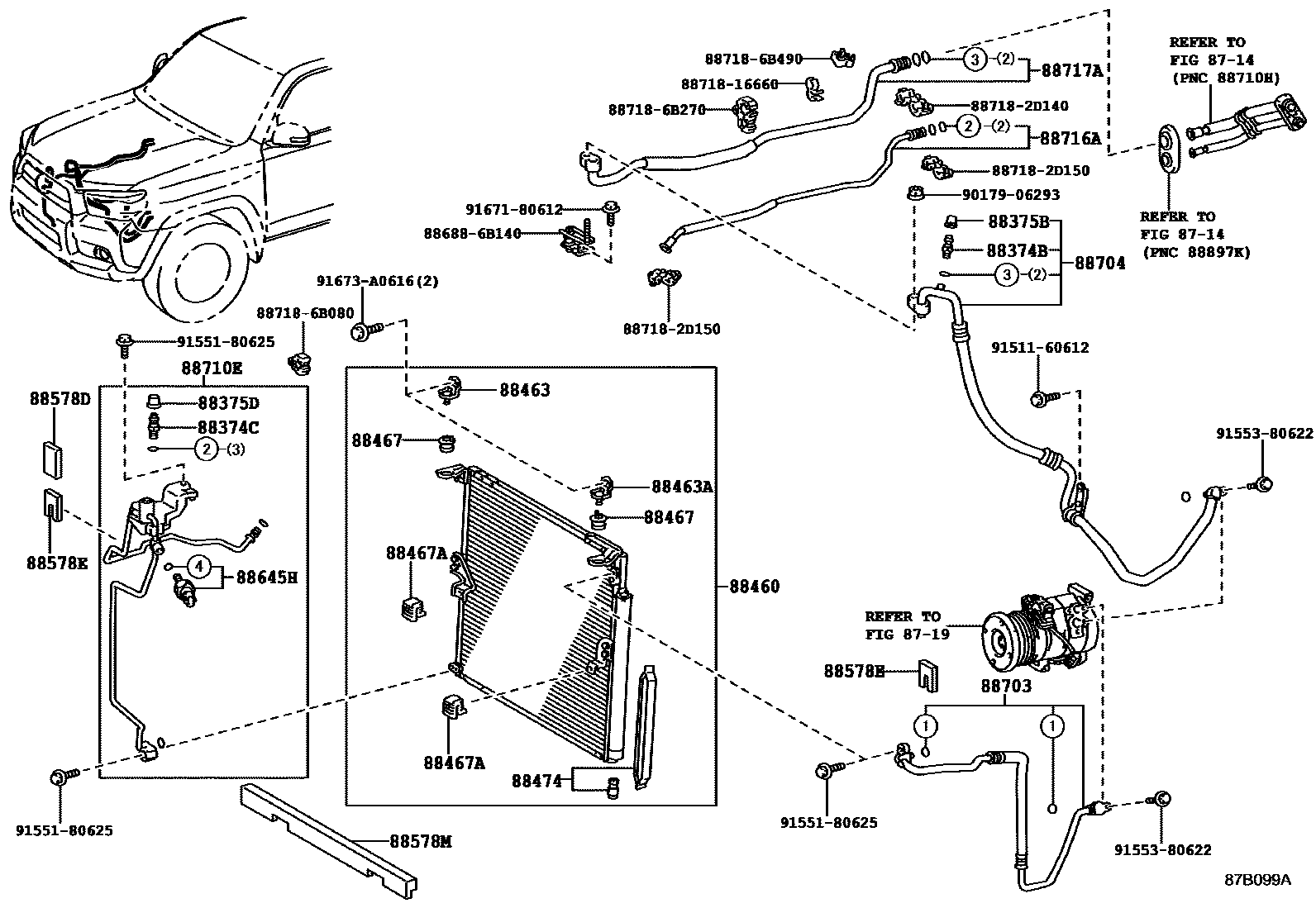

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88463BRACKET, COOLER CONDENSER, NO.1
88463ABRACKET, COOLER CONDENSER, NO.2
88467CUSHION, COOLER CONDENSER, NO.1
88467ACUSHION, COOLER CONDENSER, NO.2
88474DRYER, COOLER
88578MPACKING, COOLING PIPE, NO.3
88645HSWITCH, PRESSURE NO.1
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88716APIPE, COOLER REFRIGERANT LIQUID, A
88717APIPE, COOLER REFRIGERANT SUCTION, A
886886B140BRACKET, COOLER DIAPHRAGM
main88688-6B140
8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-16660
887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D140
887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D150
887186B080PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-6B080
887186B270PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-6B270
887186B490PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-6B490
9017906293
main90179-06293
9151160612
main91511-60612
9155180625
main91551-80625
9155380622
main91553-80622
9167180612
main91671-80612
91673A0616
main91673-A0616
34 parts on this diagram · 2 diagrams in section
