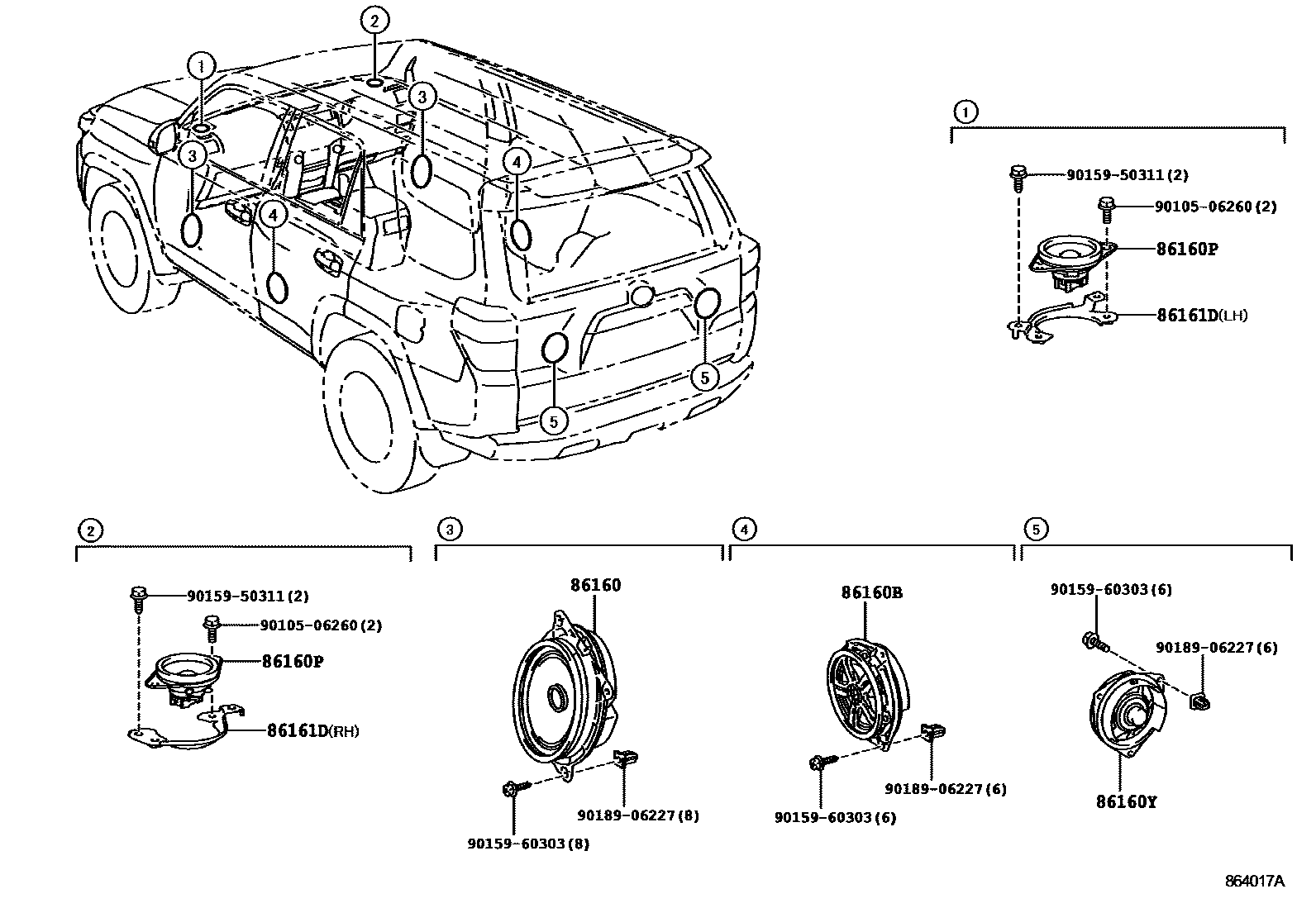

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-58240iGRN28#200908-201908

86160BSPEAKER ASSY, REAR

main86160-2B580iGRN28#200908-201109

main86160-52300iGRN28#201110-201908

86160PSPEAKER ASSY, FRONT NO.2

main86160-47070iGRN28#200908-201908

86160YSPEAKER ASSY, REAR NO.2

main86160-2B580iGRN28#200908-201109

main86160-52300iGRN28#201110-201908

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-35030iGRN28#200908-201908

RH

main86161-35040iGRN28#200908-201908

LH

9010506260

main90105-06260

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

9 parts on this diagram · 1 diagram in section
