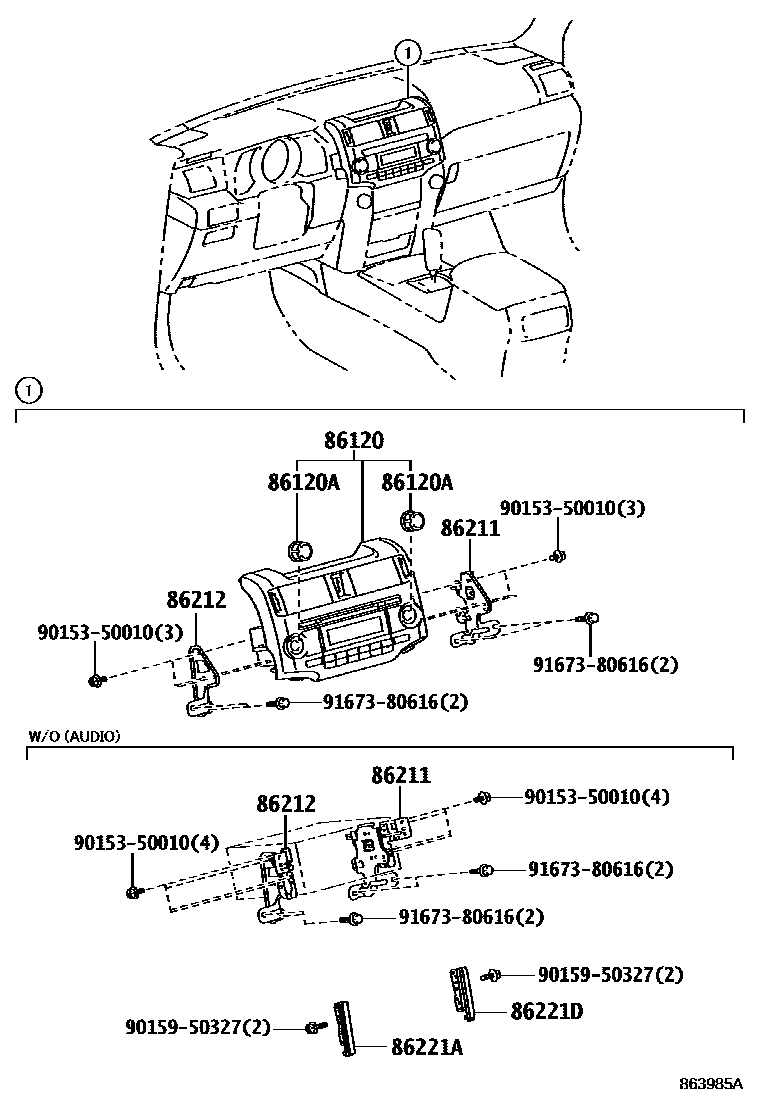

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1AUX & USB & ECU 0005 1CONDENSER 0006 1I-POD/VTR CABLE

86120RECEIVER ASSY, RADIO

main90010-22072

main86120-35550

86120AKNOB, RADIO RECEIVER SWITCH

86211BRACKET, RADIO, NO.1

main86211-35090iGRN28#200908-201308

main86211-35090iGRN28#201308-201908

AUDIO-*DA

86212BRACKET, RADIO, NO.2

main86212-35090iGRN28#200908-201308

main86212-35090iGRN28#201308-201908

AUDIO-*DA

86221PANEL, STEREO COMPONENT

main86221-35020iGRN28#201908

86221APANEL, RADIO RECEIVER

main86221-52050iGRN28#200908-201908

86221DPANEL, RADIO RECEIVER

main86221-52060iGRN28#200908-201908

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

10 parts on this diagram · 6 diagrams in section
