ANTI-THEFT DEVICE

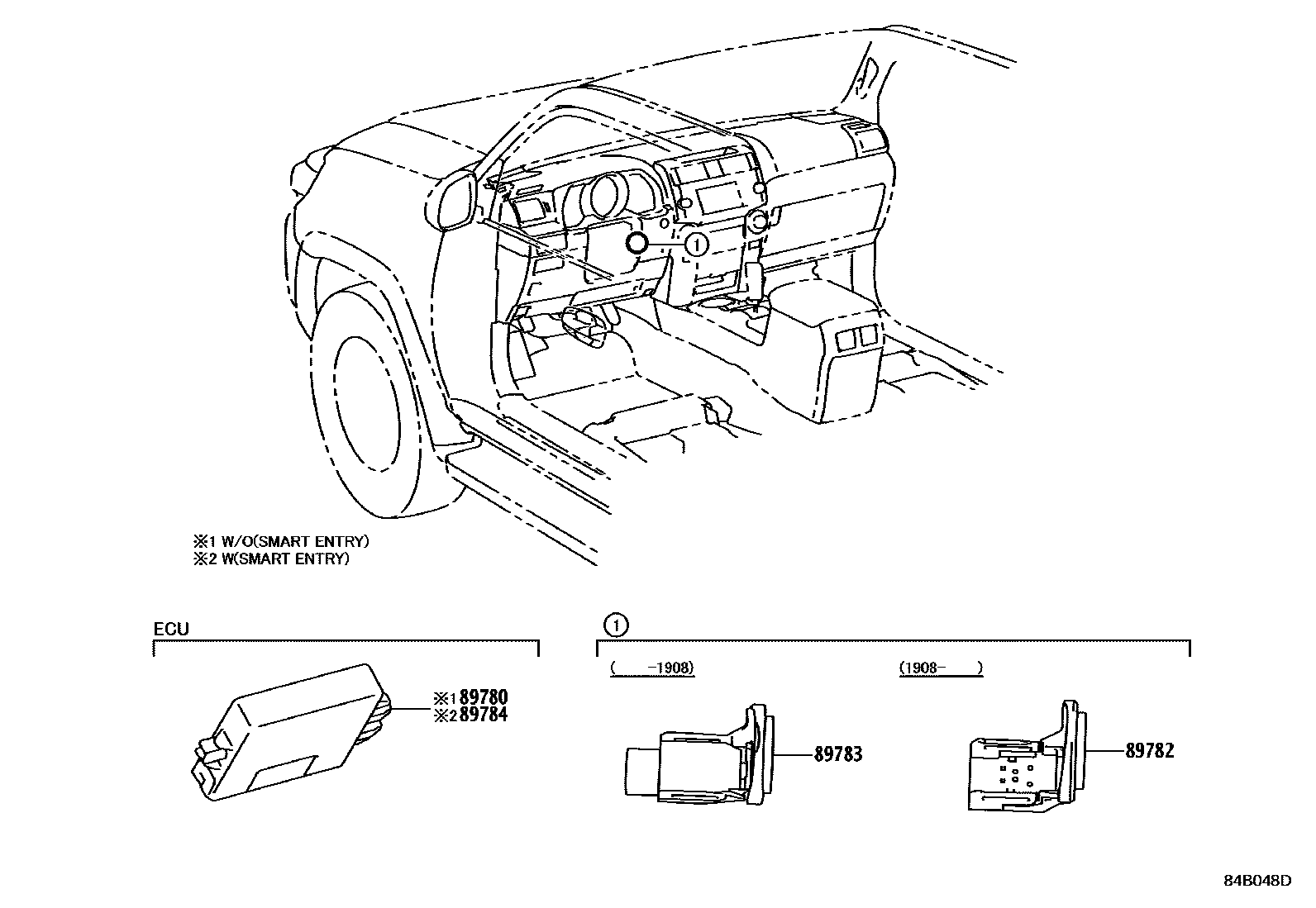

Parts diagram
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-33291i201908-202208
main89780-35130i200908-201908
89782COIL, TRANSPONDER KEY
main89782-60050i201908-202208
89783AMPLIFIER, TRANSPONDER KEY
main89783-35040i200908-201106
sub89783-35041
main89783-35041i201107-201211
sub89783-35042
main89783-35042i201212-201308
sub89783-35043
main89783-35060i201308-201609
sub89783-35061
main89783-35061i201610-201908
89784COMPUTER, IMMOBILIZER CODE
main89784-60190i202208

4 parts on this diagram · 1 diagram in section
