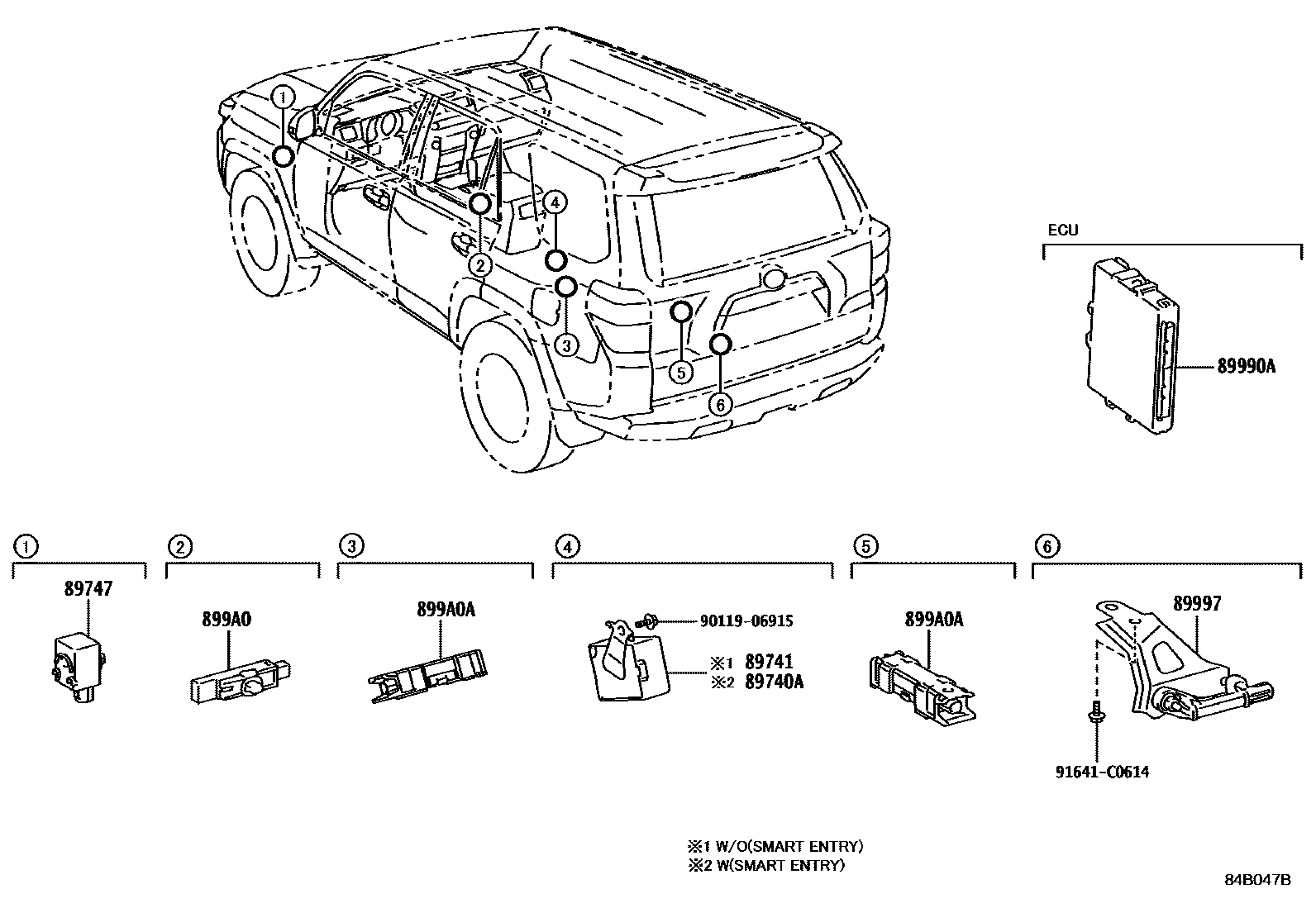

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-35050iGRN28#202208

89741RECEIVER, DOOR CONTROL

main89741-35060iGRN28#200908-201004

main89741-35060iGRN28#201308-201908

PANAMA SPEC

main89741-35090iGRN28#201004-201908

main89741-35100iGRN28#201908-202208

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRN28#200908-201908

89990ACOMPUTER ASSY, SMART KEY

main89990-35080iGRN28#202208

89997ANTENNA, ELECTRICAL KEY

main89997-35020iGRN28#202208

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iGRN28#202208

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iGRN28#202208

9011906915

main90119-06915

91641C0614

main91641-C0614

9 parts on this diagram · 1 diagram in section
