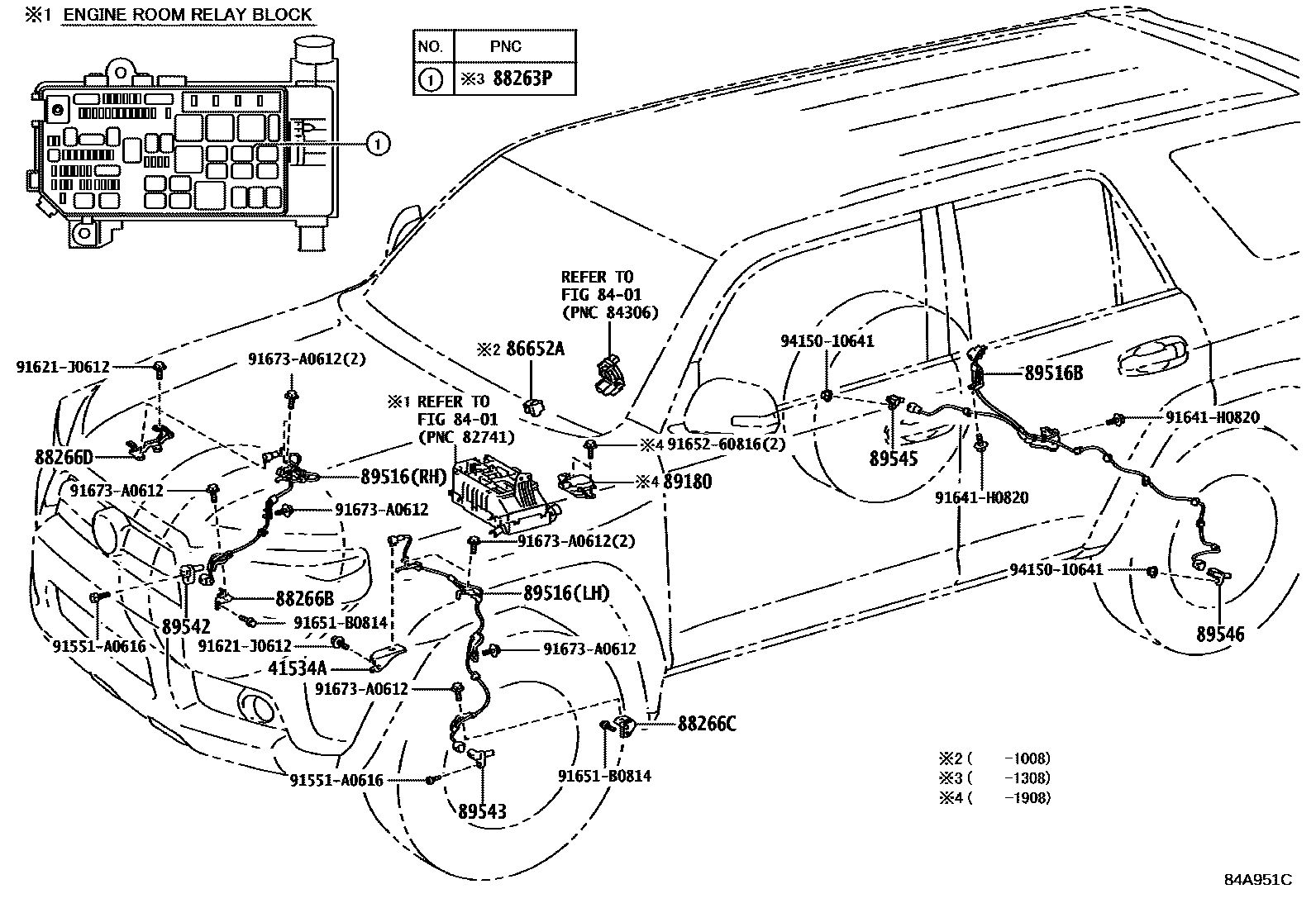

ABS & VSC
41534ABRACKET, FRONT DIFFERENTIAL BREATHER
8401
86652ABUZZER ASSY, SKID CONTROL
88263PRELAY, STOP LAMP CONTROL
88266DCLAMP, SKID CONTROL SENSOR, NO.3
89180SENSOR ASSY, YAWRATE
89516WIRE, SKID CONTROL SENSOR
RH
LH
RH
LH
89516BWIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
91551A0616
main91551-A0616
91621J0612
main91621-J0612
91641H0820
main91641-H0820
91651B0814
main91651-B0814
9165260816
main91652-60816
91673A0612
main91673-A0612
9415010641
main94150-10641
21 parts on this diagram · 1 diagram in section
