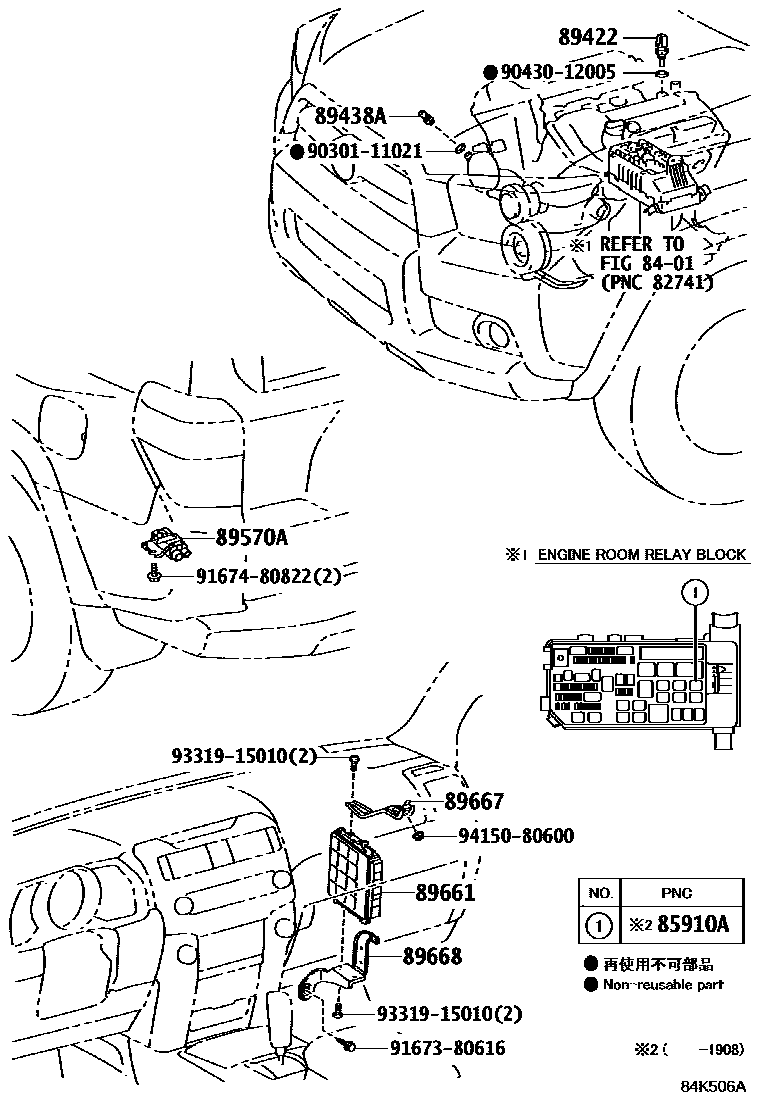

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1CHILE SPEC

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGRN28#200908-201908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRN28#200908-201908

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iGRN28#200908-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60170iGRN28#200908-201908

89661COMPUTER, ENGINE CONTROL

main89661-35F00iGRN280200908-201110

main89661-35F10iGRN285200908-201110

main89661-35J60iGRN280201110-201508

main89661-35J70iGRN285201110-201508

main89661-35L70iGRN280201908

DENSO

main89661-35L80iGRN285201908

DENSO

main89661-35N30iGRN280201508-201908

main89661-35N40iGRN285201508-201908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60270iGRN28#200908-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60290iGRN28#200908-201908

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331915010

main93319-15010

9415080600

main94150-80600

14 parts on this diagram · 2 diagrams in section
