METER

0001 1 0002 1

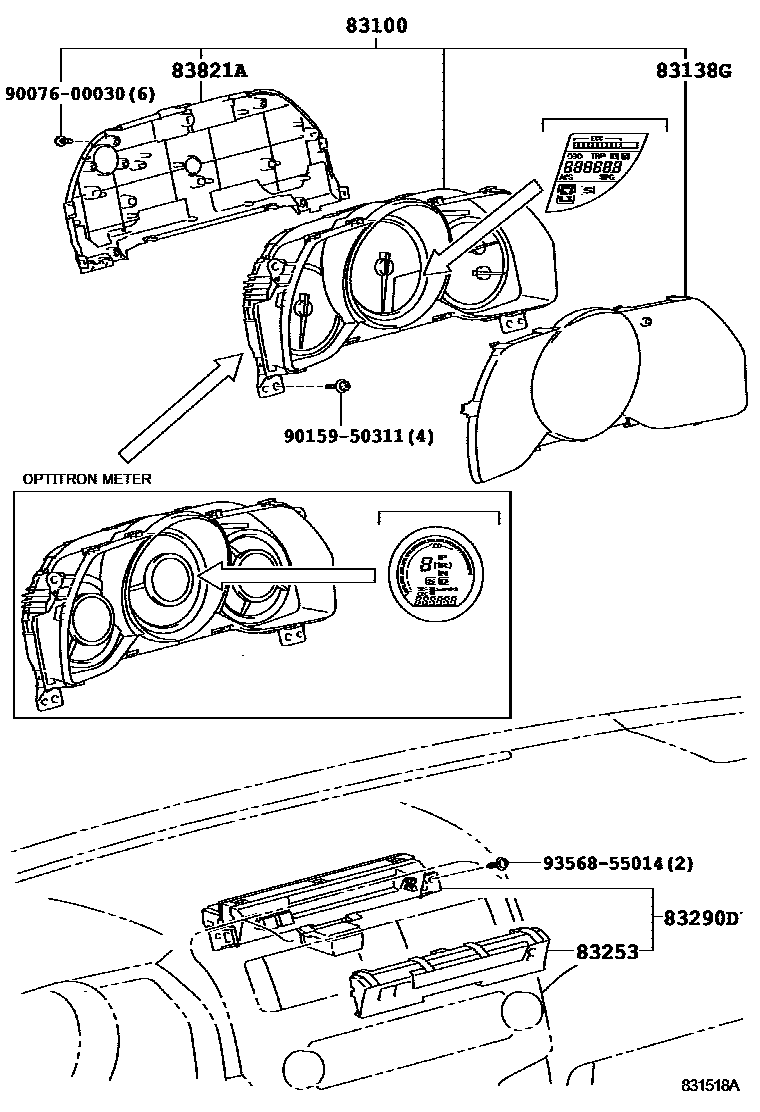

83100METER ASSY, COMBINATION

main83800-35K60iGRN28#200908-201007

sub83800-35N40

main83800-35N40iGRN28#201008-201110

main83800-35N41iGRN28#201110-201308

main83800-35Q20iGRN28#201308-201908

main83800-35U00iGRN28#201908-202108

YAZAKI

main83800-35U80iGRN28#202108

YAZAKI

83138GGLASS, COMBINATION METER

main83852-35J60iGRN28#200908-201908

main83852-35S20iGRN28#201908

83253GLASS, CENTER DISPLAY

main83253-35040iGRN28#200908-201006

sub83253-35041

main83253-35041iGRN28#201006-201908

83290DMETER ASSY, ACCESSORY

main83290-35050iGRN28#200908-201308

main83290-35100iGRN28#201308-201908

83821ACOVER, COMBINATION METER, NO.1

main83821-35J60iGRN28#200908-201908

9007600030

main90076-00030

9015950311

main90159-50311

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
