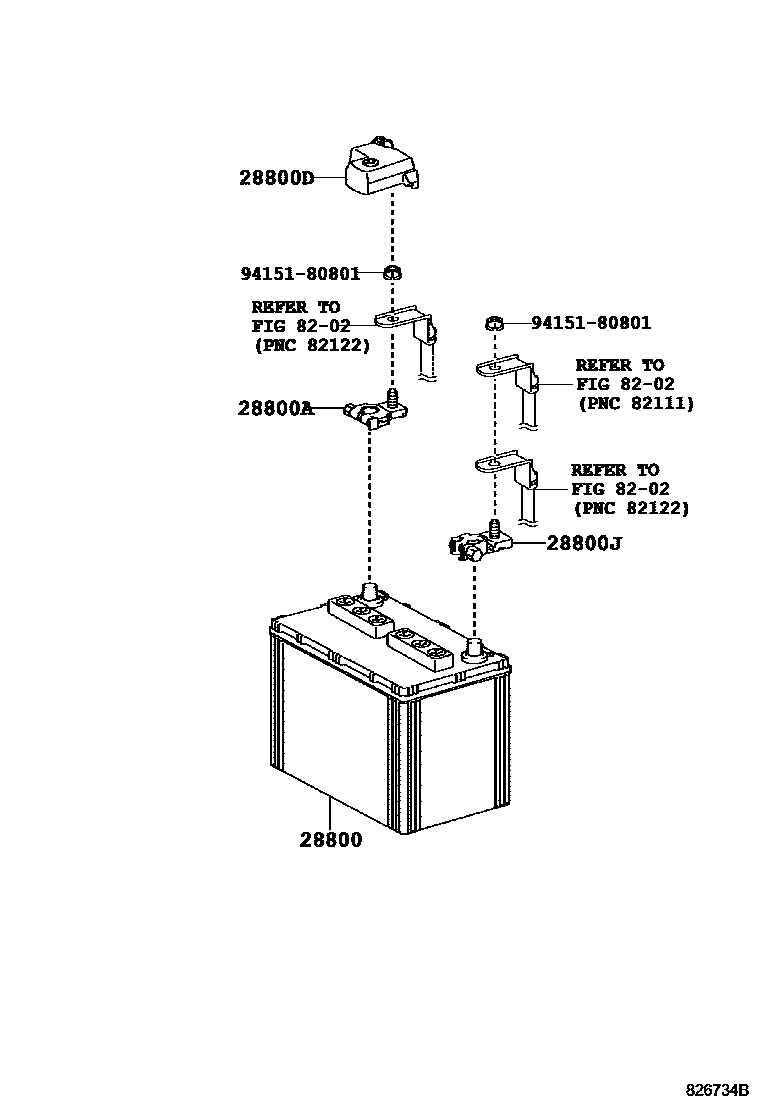

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i1GRFE..GRN28#200908-201204

80D26L,FURUKAWA

sub28800-38080

main28800-17122i1GRFE..GRN28#202209

80D26L

main28800-28210i1GRFE..GRN28#201204-201308

80D26L,PANASONIC

sub28800-28211

main28800-28210i1GRFE..GRN28#201308-201908

80D26L

sub28800-28211

main28800-38080i1GRFE..GRN28#201908-202208

80D26L

sub28800-38081

main28800-54020i1GRFE..GRN28#200908-201308

80D26L,YUASA

sub28800-67102

28800ATERMINAL, BATTERY POSITIVE

main90982-05069i1GRFE..GRN28#200908-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60041i1GRFE..GRN28#201908

main82821-60270i1GRFE..GRN28#200908-201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GRFE..GRN28#200908-201908

8202

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
