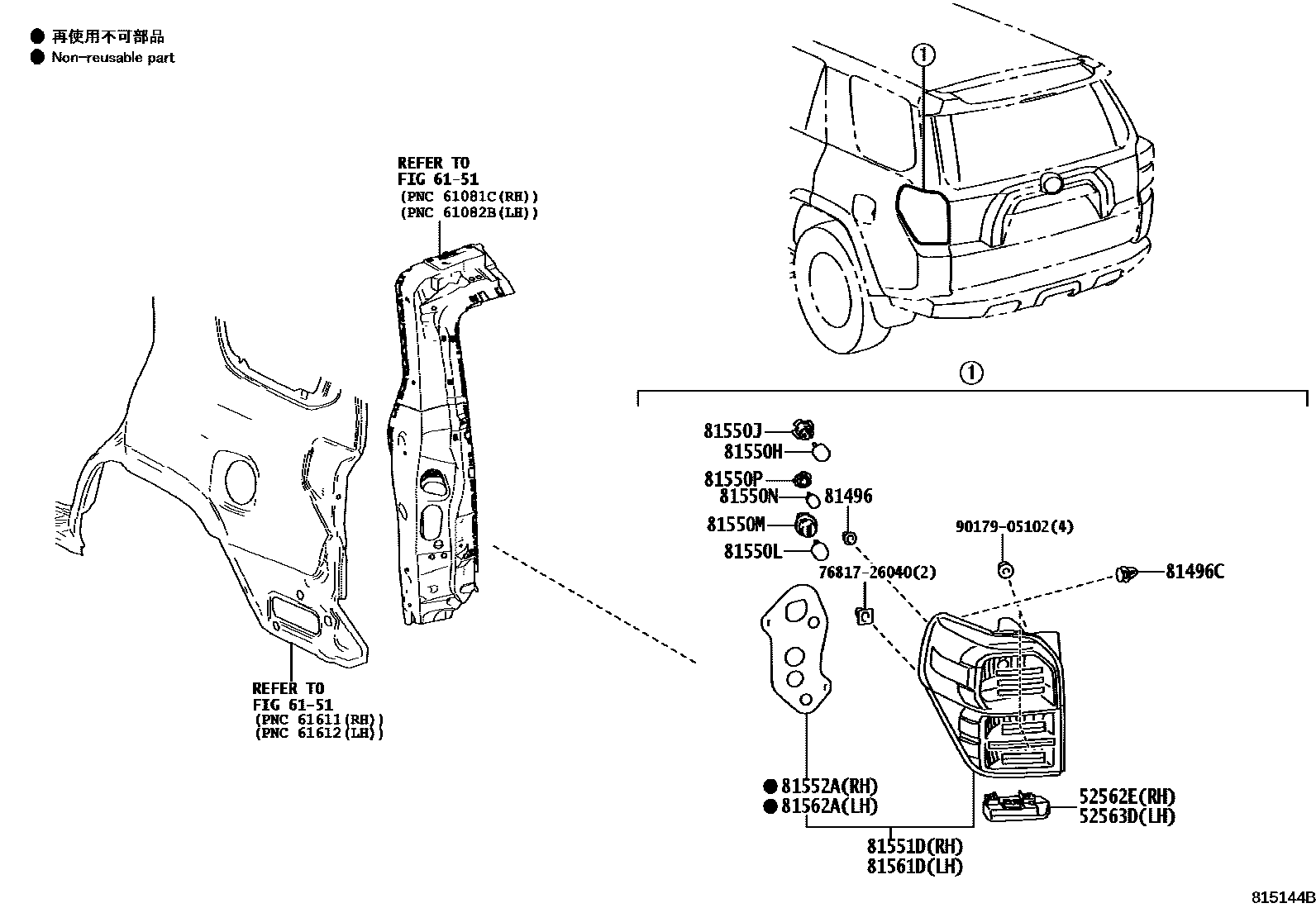

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-35040iGRN28#200908-201908

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-35040iGRN28#200908-201908

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGRN28#200908-201908

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGRN28#200908-201908

81550HBULB, TAIL & STOP LAMP

main90981-13044iGRN28#200908-201308

81550JSOCKET, TAIL & STOP LAMP

main90075-60033iGRN28#200908-201308

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iGRN28#200908-201308

main90981-15021iGRN28#201308-201908

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60025iGRN28#200908-201308

81550NBULB, BACK UP LAMP

main90981-11059iGRN28#200908-201308

main90981-11059iGRN28#201308-201908

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60035iGRN28#200908-201308

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-35360iGRN28#200908-201308

main81551-35400iGRN28#201308-201411

sub81551-35401

main81551-35401iGRN28#201411-201601

sub81551-35402

main81551-35402iGRN28#201601-201908

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-35360iGRN28#200908-201308

main81552-35400iGRN28#201308-201908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-35360iGRN28#200908-201308

main81561-35390iGRN28#201308-201411

sub81561-35391

main81561-35391iGRN28#201411-201601

sub81561-35392

main81561-35392iGRN28#201601-201908

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-35360iGRN28#200908-201308

main81562-35390iGRN28#201308-201908

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9017905102

main90179-05102

17 parts on this diagram · 2 diagrams in section
