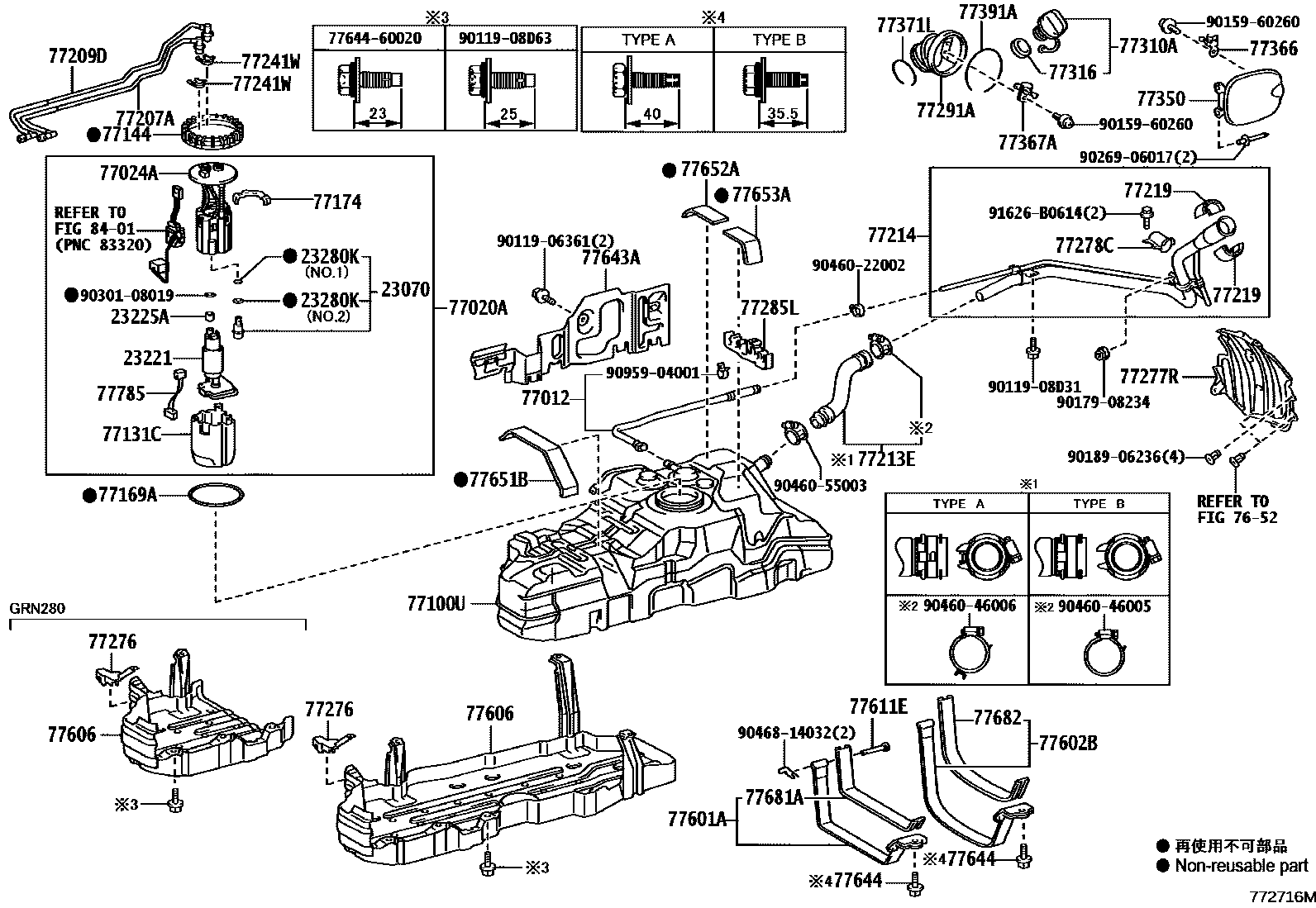

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1CHILE SPEC,FUEL TANK 0003 1FUEL TUBE 0004 1CHILE SPEC,FUEL TUBE

23070VALVE ASSY, FUEL MAIN

main23070-31010i1GRFE..GRN28#201308-201908

23221PUMP, FUEL

main23220-31430i1GRFE..GRN28#200908-201308

23225ASPACER, FUEL PUMP

main23225-23010i1GRFE..GRN28#200908-201308

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1GRFE..GRN28#200908-201308

NO.1:REFER ILLUST.

main90301-15024i1GRFE..GRN28#200908-201308

NO.2:REFER ILLUST.

7652

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-35090supersedes 77012-60201iGRN28#201406-201908

CHILE SPEC

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-35151supersedes 77020-60411iGRN28#201406-201908

CHILE SPEC

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60430iGRN28#201708-201908

main77024-35070supersedes 77024-60430iGRN28#201406-201908

CHILE SPEC

77100UTANK SUB-ASSY, FUEL

main77001-35A20supersedes 77001-35A31iGRN28#201908

CHILE SPEC

77131CSUB-TANK, FUEL, NO.1

main77131-60090iGRN28#200908-201308

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGRN28#201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30050supersedes 77169-47030iGRN28#201406-201908

CHILE SPEC

77174SUPPORT, FUEL SUCTION, NO.1

main77174-60020iGRN28#201908

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-35090supersedes 77204-60100iGRN28#201908

CHILE SPEC

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35470supersedes 77209-60530iGRN28#201908

CHILE SPEC

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-35410supersedes 77213-60390iGRN28#201908

CHILE SPEC

77214PIPE, FUEL TANK FILLER

main77210-35050iGRN28#201406-201408

CHILE SPEC

main77210-35080supersedes 77210-60430iGRN28#201908-202204

CHILE SPEC

main77210-35081supersedes 77210-60430iGRN28#202205

CHILE SPEC

77219COVER, FUEL TANK FILLER PIPE

main77219-48030supersedes 77219-52040iGRN28#201908

CHILE SPEC

77241WCLIP, TUBE JOINT

main77241-33011×2iGRN28#200912-201308

main77241-60320×2iGRN28#200908-200911

77276PROTECTOR, FUEL HOSE

main77276-35040iGRN28#201908

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-35040iGRN28#200908-201308

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77277-35050supersedes 77277-60190iGRN28#201406-201908

CHILE SPEC

77285LCLAMP, FUEL TUBE, NO.1

main77285-35610supersedes 77285-35770iGRN28#201406-201908

CHILE SPEC

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-35150iGRN28#201308-201908

77310ACAP ASSY, FUEL TANK

main77300-12020iGRN28#202011

main77300-52030iGRN28#201908-202011

main77300-52040iGRN28#201406-201408

CHILE SPEC

main77300-53020supersedes 77300-52030iGRN28#201408-201908

CHILE SPEC

77316GASKET, FUEL TANK CAP

main77316-52040iGRN28#200908-201308

77350LID ASSY, FUEL FILLER OPENING

main77350-35070iGRN28#200908-201110

main77350-35071iGRN28#201111-201308

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-35030iGRN28#201308-201908

77367ACLAMP, FUEL FILLER LID PIN, NO.1

main77367-35020iGRN28#200908-201308

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGRN28#200908-201308

77391ARING, FUEL INLET BOX

main77391-12060iGRN28#200908-201308

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60340iGRN28#200908-201308

main77601-60420iGRN28#201607-201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60120iGRN28#201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60190iGRN285201908

main77606-60200iGRN280201908

77611EPIN, FUEL TANK BAND

main77653-35040×2iGRN28#200908-201308

77643APROTECTOR, FUEL TANK, NO.3

main77643-35020iGRN28#200908-201308

main77643-35040iGRN28#201602-201908

77644BOLT, FUEL TANK

main77644-35030×2iGRN28#200908-201308

main90119-10A27×2iGRN28#202311

TYPE B:REFER ILLUST.

77651BCUSHION, FUEL TANK

main77651-35080supersedes 77651-35070iGRN28#201908

CHILE SPEC

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGRN28#201908

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iGRN28#201308-201908

77681ASEAT, FUEL TANK BAND

main77681-60210iGRN28#200908-201308

77682SEAT, FUEL TANK BAND, LH

main77681-35041iGRN28#200908-201308

77785HARNESS, FUEL PUMP

main77785-60020iGRN28#200908-201308

main77785-60021iGRN28#201804-201908

8401

7764460020BOLT, FUEL TANK

main77644-60020

9011906361

main90119-06361

9011908D31

main90119-08D31

9011908D63

main90119-08D63

9015960260

main90159-60260

9017908234

main90179-08234

9018906236

main90189-06236

9026906017

main90269-06017

9030108019

main90301-08019

9046022002

main90460-22002

9046046005

main90460-46005

9046046006

main90460-46006

9046055003

main90460-55003

9046814032

main90468-14032

9095904001

main90959-04001

91626B0614

main91626-B0614
