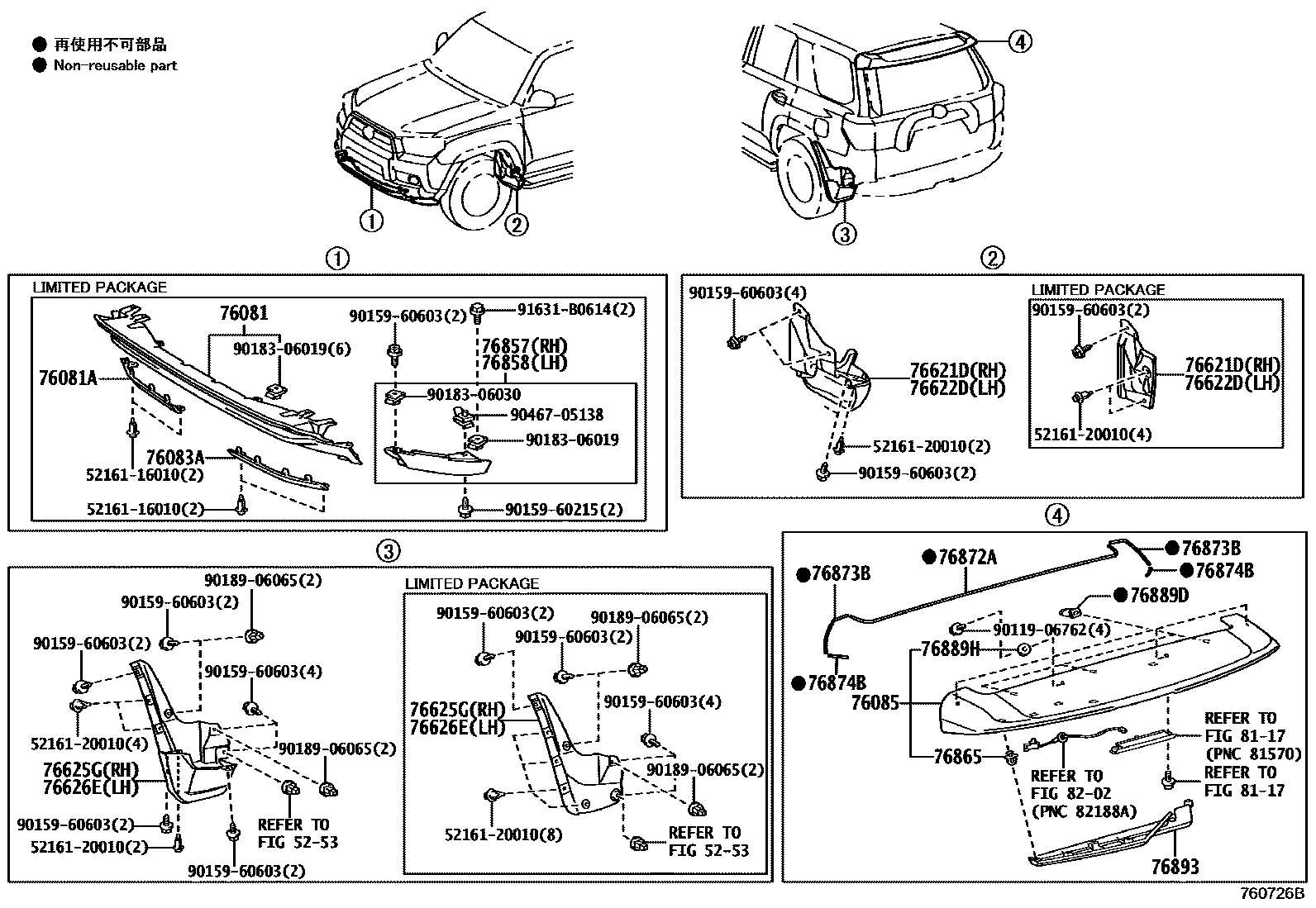

SPOILER & SIDE MUDGUARD

0001 1 0002 1

5253

76081SPOILER SUB-ASSY, FRONT

main52675-35020

main53285-35060

76081ASPOILER SUB-ASSY, FRONT RH

76083ASPOILER SUB-ASSY, FRONT LH

76085SPOILER SUB-ASSY, REAR

main76085-35903iGRN28#200908-201908

PAINT REQ.

76621DMUDGUARD, FRONT FENDER, RH

main76603-35050iGRN28#200908-201308

main76621-35150iGRN28#201308-201908

76622DMUDGUARD, FRONT FENDER, LH

main76604-35050iGRN28#200908-201308

main76622-35150iGRN28#201308-201908

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76607-35110iGRN28#200908-201308

main76625-35250iGRN28#201308-201908

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76608-35110iGRN28#200908-201308

main76626-35250iGRN28#201308-201908

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-35020

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-35020

76865RETAINER, REAR SPOILER, NO.1

main76865-35030iGRN28#200908-201908

76872APROTECTOR, REAR SPOILER, NO.1

main76872-35010iGRN28#200908-201908

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-35040iGRN28#200908-201908

76874BPROTECTOR, REAR SPOILER, LH

main76874-35030iGRN28#200908-201611

sub76874-35050

main76874-35040iGRN28#202107

main76874-35050iGRN28#201612-202106

sub76874-35040

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iGRN28#200908-201908

76889HSEAL, REAR SPOILER, NO.1

main76889-21040iGRN28#200908-201908

76893COVER, REAR SPOILER, NO.1

main76893-35050iGRN28#200908-201102

sub76893-35051

sub62653-35010

main76893-35051iGRN28#201102-201908

8117

8202

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

5216120010CUSHION, REAR BUMPER GUARD, NO.1

main52161-20010

9011906762

main90119-06762

9015960215

main90159-60215

9015960603

main90159-60603

9018306019

main90183-06019

9018306030

main90183-06030

9018906065

main90189-06065

9046705138

main90467-05138

91631B0614

main91631-B0614

30 parts on this diagram · 2 diagrams in section
