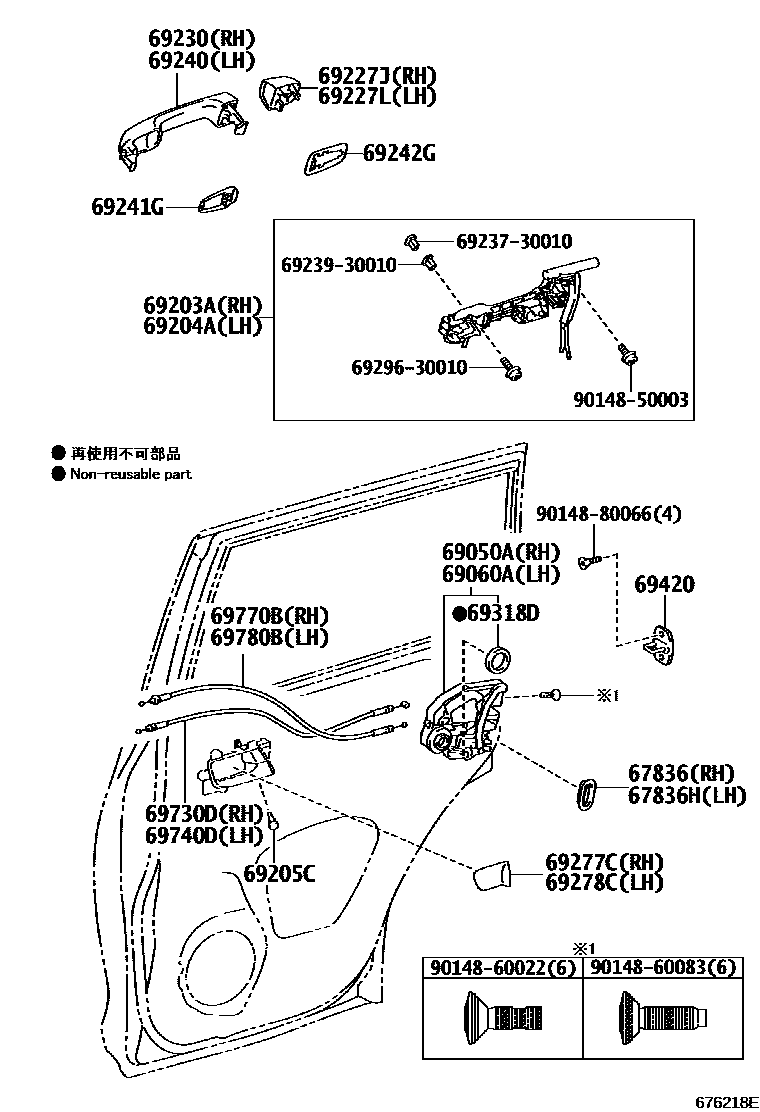

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
RED M.M.,3R3
DK.BLUE MC.,8S6
*CR,LIMITED PACKAGE
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
RED M.M.,3R3
DK.BLUE MC.,8S6
*CR,LIMITED PACKAGE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
RED M.M.,3R3
DK.BLUE MC.,8S6
LIMITED PACKAGE,SILVER ME.
LIMITED PACKAGE,SILVER ME.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK.GRAY,1L7
BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
RED M.M.,3R3
DK.BLUE MC.,8S6
LIMITED PACKAGE,SILVER ME.
LIMITED PACKAGE,SILVER ME.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014860083
main90148-60083
9014880066
main90148-80066
28 parts on this diagram · 1 diagram in section
