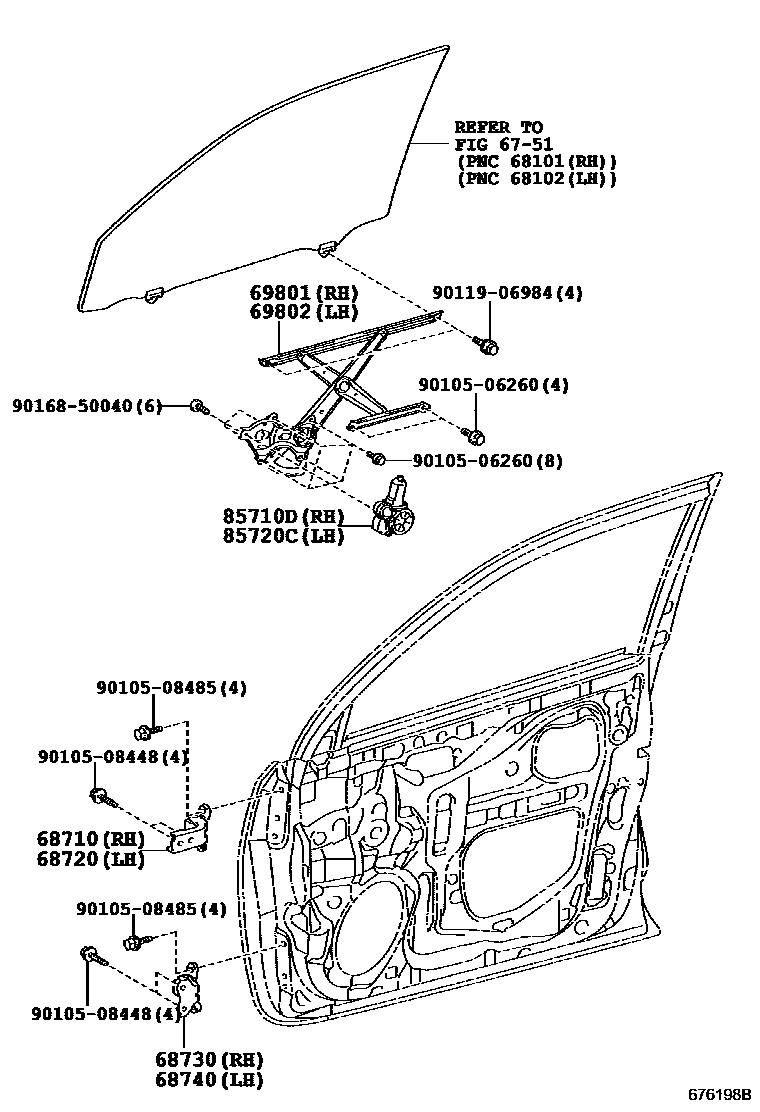

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iGRN28#200908-201908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iGRN28#200908-201908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iGRN28#200908-201908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iGRN28#200908-201908

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60090iGRN28#200908-201908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60090iGRN28#200908-201908

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12490iGRN28#201302-201501

main85710-60300iGRN28#201012-201302

sub85710-12490

main85710-60310iGRN28#201508-201908

main85710-60370iGRN28#201502-201508

main85710-75010iGRN28#200908-201011

sub85710-12490

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490iGRN28#201302-201501

main85720-60280iGRN28#201012-201302

sub85720-12490

main85720-60310iGRN28#201508-201908

main85720-60350iGRN28#201502-201508

main85720-75010iGRN28#200908-201011

sub85720-12490

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
