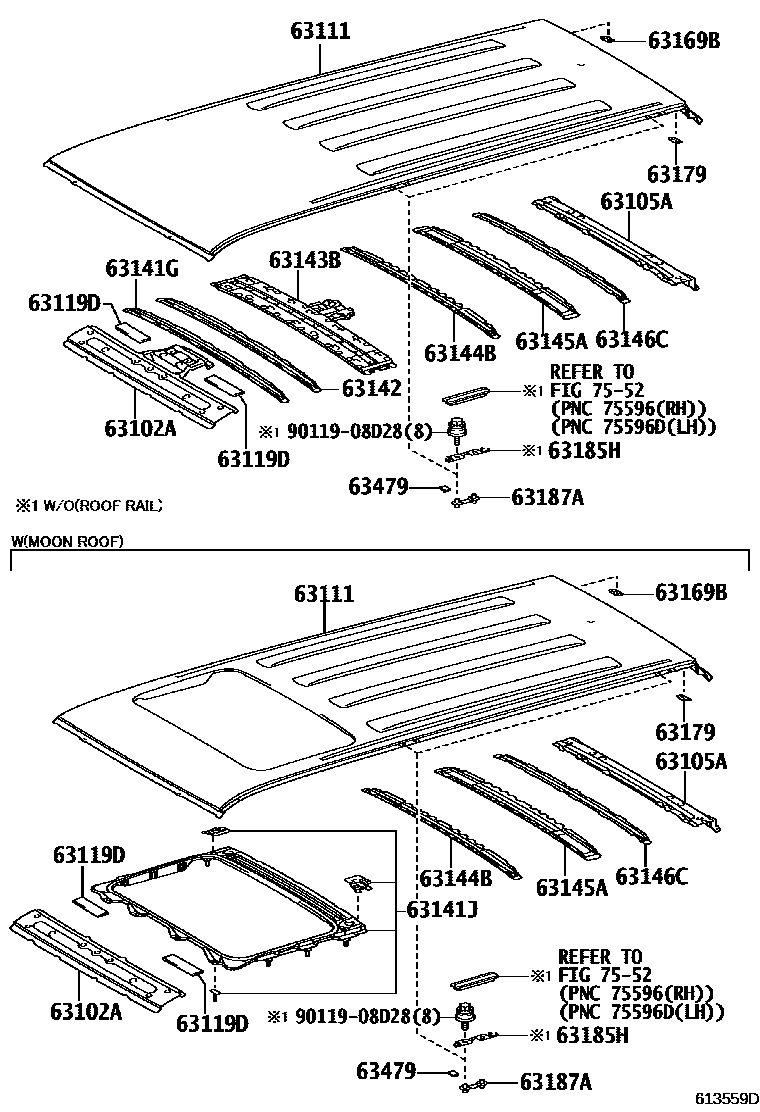

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-35060iGRN28#200908-201206

sub63102-35061

main63102-35061iGRN28#201207-201209

main63102-35070iGRN28#200908-201206

MOON ROOF-WITH(TILT UP & SLIDE)

sub63102-35071

main63102-35071iGRN28#201207-201209

MOON ROOF-WITH(TILT UP & SLIDE)

main63102-35090iGRN28#201209-201908

main63102-35100iGRN28#201209-201908

MOON ROOF-WITH(TILT UP & SLIDE)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-35090iGRN28#200908-201908

63111PANEL, ROOF

main63111-35310iGRN28#200908-201908

main63111-35320iGRN28#200908-201908

MOON ROOF-WITH(TILT UP & SLIDE)

63119DPAD, ROOF PANEL, NO.1

main63119-35010iGRN28#200908-201107

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-35030iGRN28#200908-201908

63141JREINFORCEMENT, ROOF PANEL

main63107-35010iGRN28#200908-201908

MOON ROOF-WITH(TILT UP & SLIDE)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-35060iGRN28#200908-201908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-35010iGRN28#200908-201908

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63103-35030iGRN28#200908-201908

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-35010iGRN28#200908-201908

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63126-35040iGRN28#200908-201908

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iGRN28#200908-201908

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iGRN28#200908-201001

main63179-35030iGRN28#201002-201908

63185HBRACKET, ROOF RACK

main63185-42020iGRN28#200908-201908

63187ABRACKET, ROOF RACK, REAR

main63187-35020iGRN28#200908-201908

63479RETAINER, ROOF INNER RACK

main63479-60020iGRN28#200908-201908

7552

9011908D28

main90119-08D28

18 parts on this diagram · 3 diagrams in section
