SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
57442PLUG, STEP PANEL HOLE
5752
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61311BPILLAR, CENTER BODY, OUTER RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61401FREINFORCEMENT SUB-ASSY, ROCKER PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61824CPAD, NOISE SHUTTER, NO.1
61825CPAD, NOISE SHUTTER, NO.2
9011906802
main90119-06802
9011906897
main90119-06897

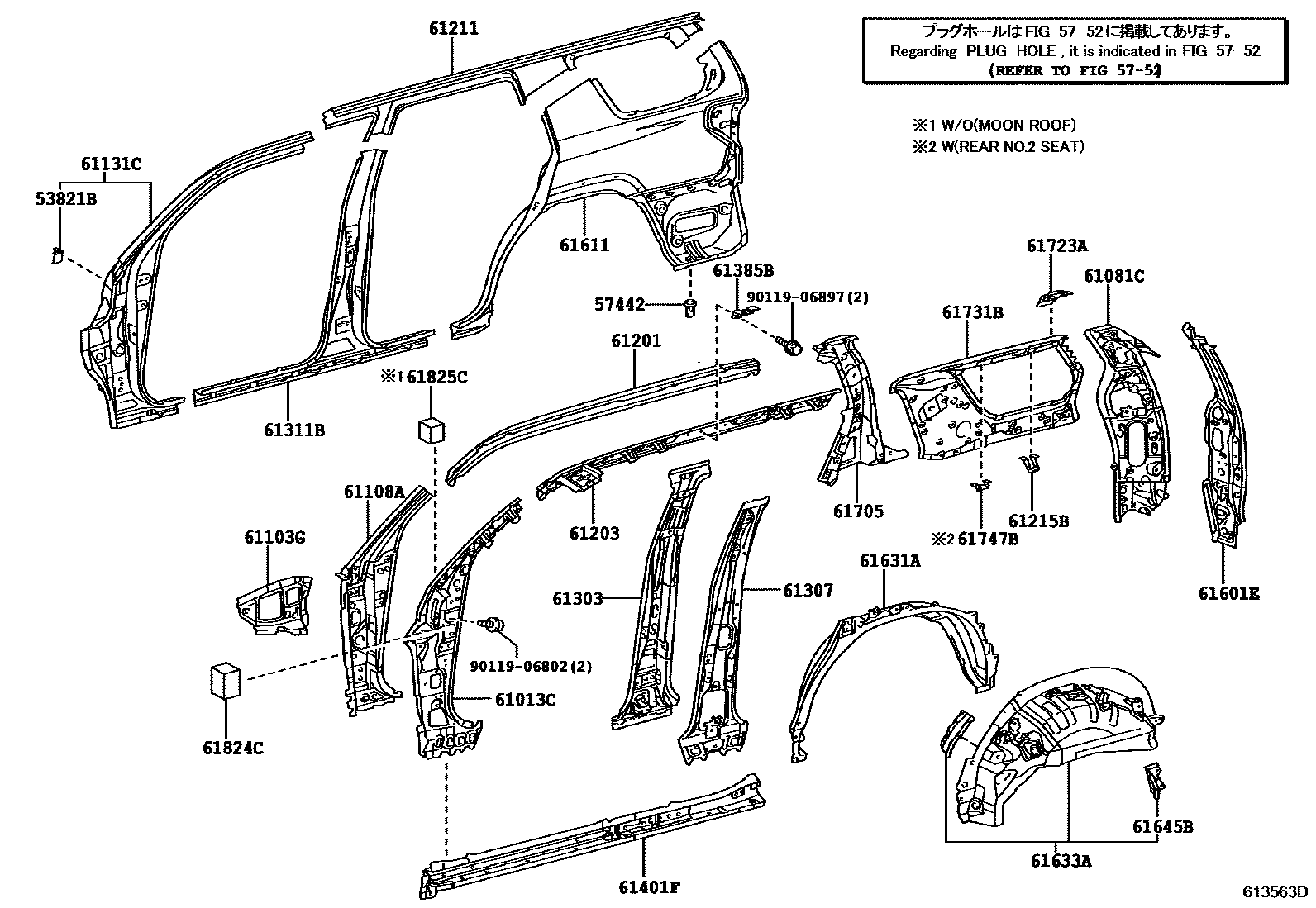

30 parts on this diagram · 2 diagrams in section
