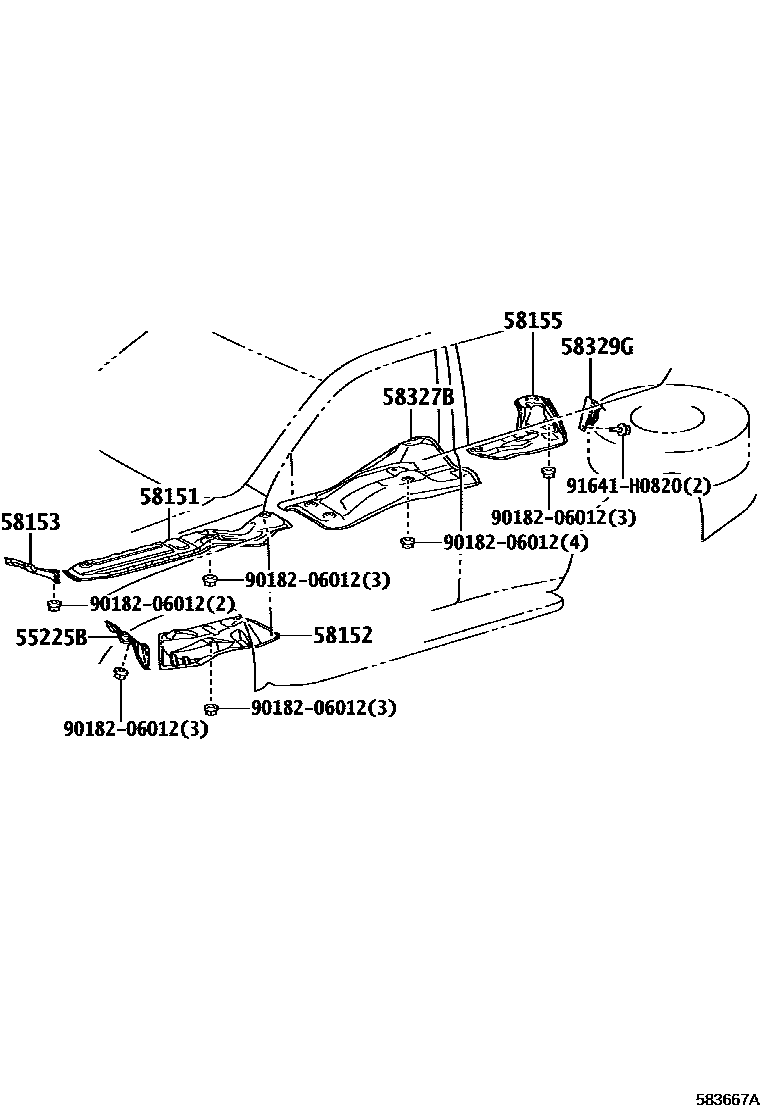

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-60050iGRN28#200908-201801

sub55225-60070

main55225-60070iGRN28#201802-201908

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60120iGRN28#200908-201009

sub58151-60121

main58151-60121iGRN28#201010-201801

sub58151-60122

main58151-60122iGRN28#201802-201908

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-60040iGRN28#201802-201908

main58152-60060iGRN28#200908-201801

sub58152-60040

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35130iGRN28#200908-201801

sub58153-60130

main58153-60130iGRN28#201802-201908

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60070iGRN28#200908-201908

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60100iGRN28#200908-201607

sub58327-60101

main58327-60101iGRN28#201608-201908

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main5192A-60010iGRN28#200908-201908

9018206012

main90182-06012

91641H0820

main91641-H0820

9 parts on this diagram · 1 diagram in section
