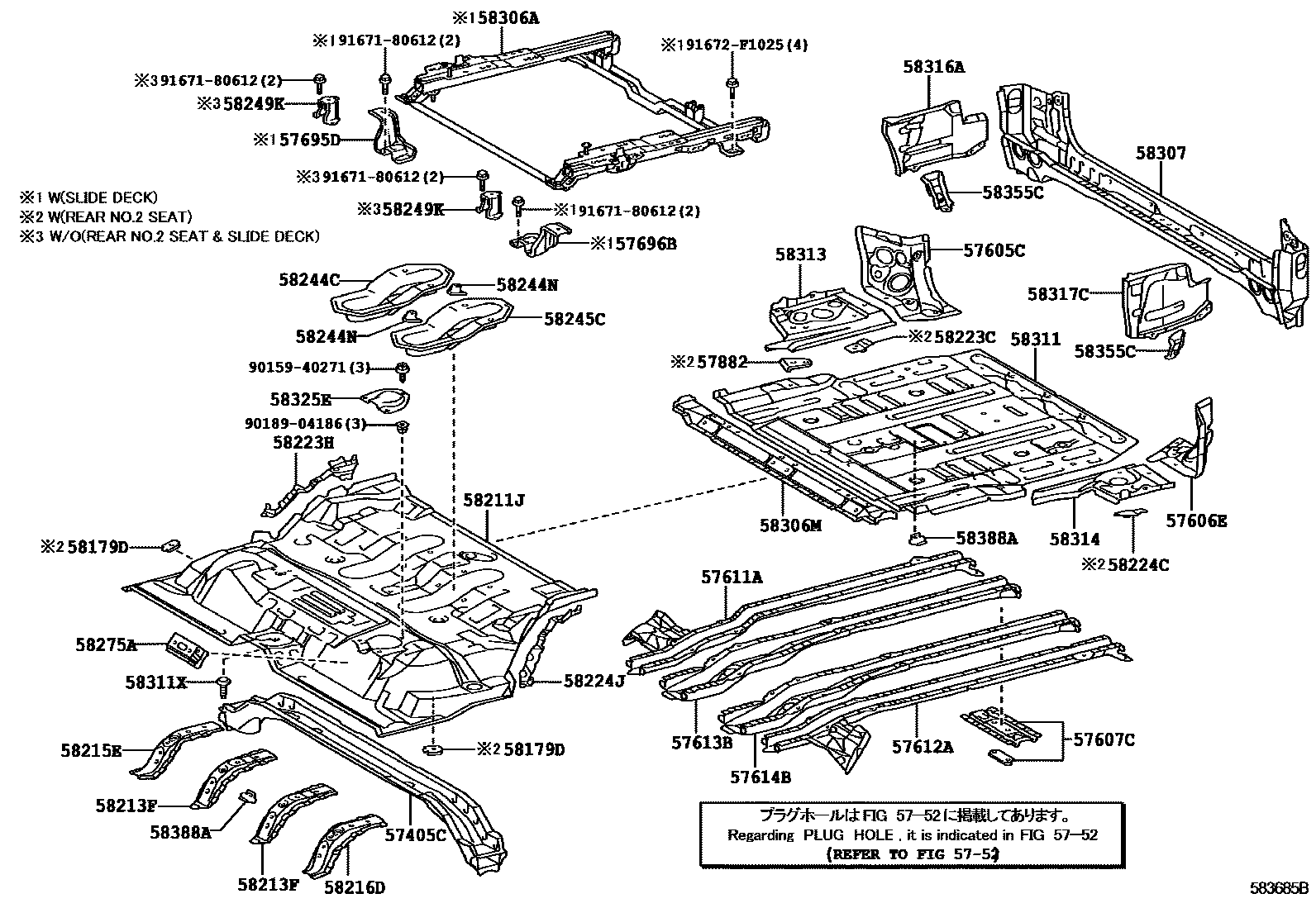

REAR FLOOR PANEL & REAR FLOOR MEMBER
57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
5752
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57613BMEMBER, REAR FLOOR SIDE CENTER, RH
sub57603-60241
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
sub57603-60261
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
sub57603-60261
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
sub57603-60261
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
sub57603-60261
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
57614BMEMBER, REAR FLOOR SIDE, CENTER LH
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
sub57603-60261
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
sub57603-60261
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
sub57603-60261
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
sub57603-60261
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
sub57604-60121
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
DECK CARPET & MAT-WITH(SLIDE DECK)
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
DECK CARPET-WITH(SLIDE DECK)
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
DECK CARPET-WITH(SLIDE DECK)
DECK CARPET & MAT-WITH(SLIDE DECK)
57882REINFORCEMENT, BELT ANCHOR, NO.4
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58179DBRACKET, CLAMP FLOOR
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58211JPAN, CENTER FLOOR
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58213FREINFORCEMENT, CENTER FLOOR PANEL
58223CREINFORCEMENT, SEAT SET, NO.1
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58224CREINFORCEMENT, SEAT SET, NO.2
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58244NSTOPPER, REAR SEAT CUSHION BRACKET
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58249KBRACKET, CENTER FLOOR BOARD SUPPORT
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58306ARAIL SUB-ASSY, FLOOR SIDE, INNER
DECK CARPET-WITH(SLIDE DECK)
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER
DECK CARPET & MAT-WITH(SLIDE DECK)
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58311PAN, REAR FLOOR
DECK CARPET & MAT-WITH(SLIDE DECK)
DECK CARPET-WITH(SLIDE DECK)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58314PANEL, REAR FLOOR SIDE, LH
SR5 PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-LEATHER
LIMITED PACKAGE&DECK CARPET-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)&SEAT COVERMATERIAL-FABRIC(POWER SEAT)
DECK CARPET & MAT-WITH(THIRD SEAT)&REAR NO.2 SEAT-WITH(50:50)
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58388ABRACKET,REAR FLOOR PLATE
9015940271
main90159-40271
9018904186
main90189-04186
9167180612
main91671-80612
91672F1025
main91672-F1025
42 parts on this diagram · 1 diagram in section
