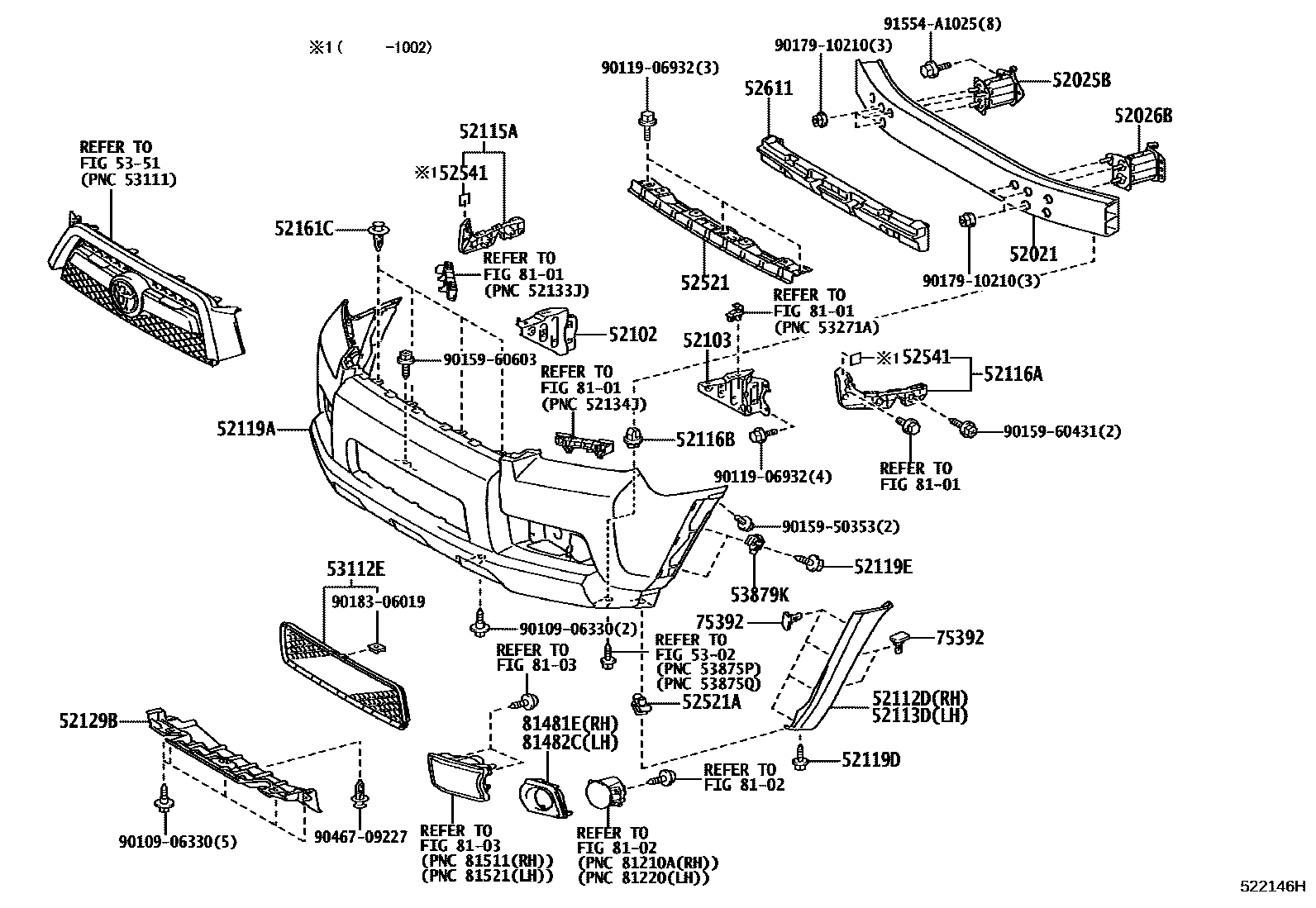

FRONT BUMPER & BUMPER STAY
52102BRACKET SUB-ASSY, FRONT BUMPER, RH
52103BRACKET SUB-ASSY, FRONT BUMPER, LH
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
52116BRETAINER, FRONT BUMPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
52119DSCREW, NO.1
52119ESCREW, NO.2
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
5351
53879KRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
TYPE A:REFER ILLUST.
LIMITED PACKAGE
TYPE B:REFER ILLUST.
LIMITED PACKAGE
8101
8102
8103
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9010906330
main90109-06330
9011906932
main90119-06932
9015950353
main90159-50353
9015960431
main90159-60431
9015960603
main90159-60603
9017910210
main90179-10210
9018306019
main90183-06019
9046709227
main90467-09227
91554A1025
main91554-A1025
38 parts on this diagram · 5 diagrams in section
