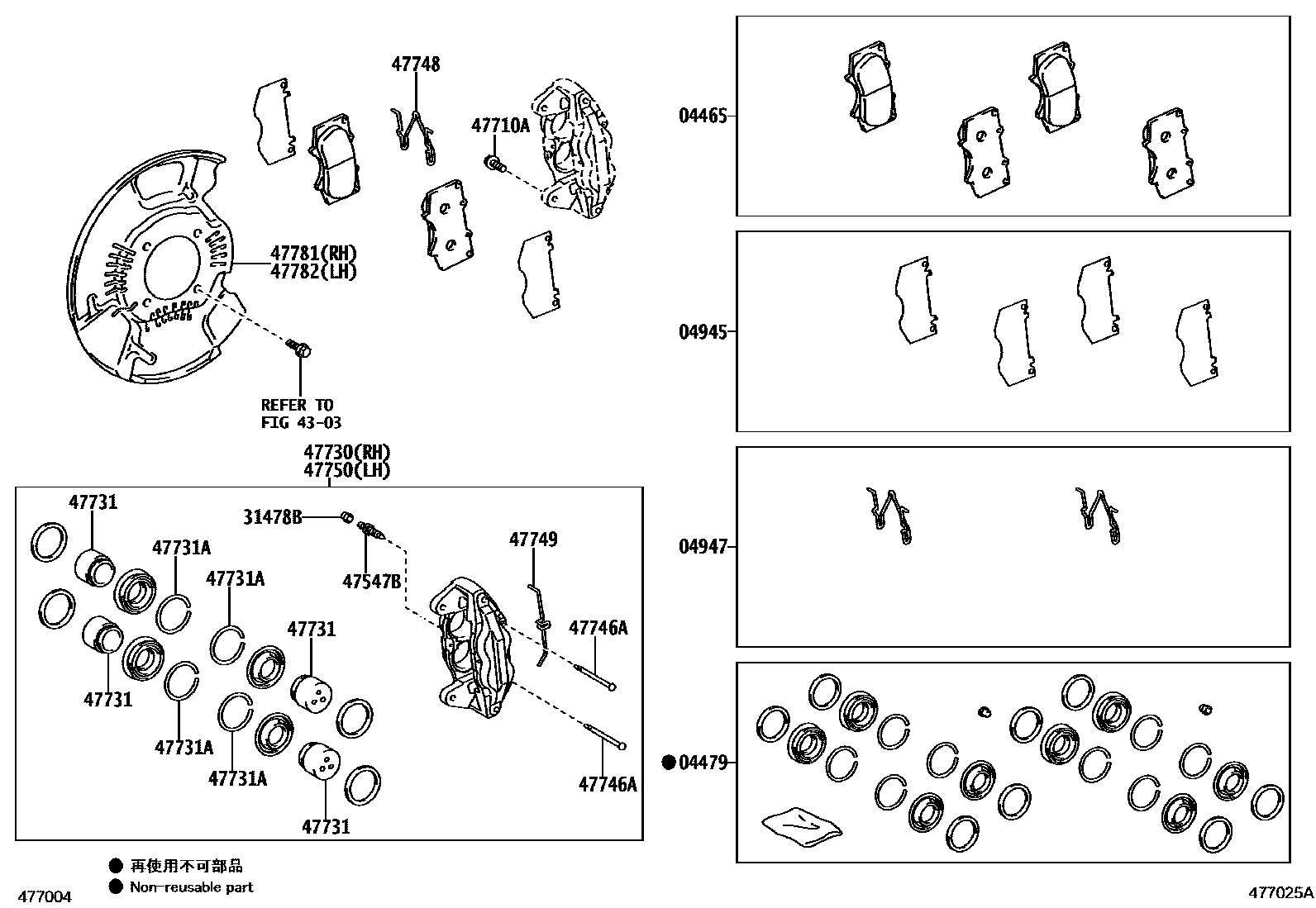

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35330iGRN28#201908

MARK ADVICS VC070H

main04465-60320iGRN28#201308-201908

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60080iGRN28#200908-201308

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60090iGRN28#200908-201308

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iGRN28#200908-201308

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGRN28#200908-201308

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGRN28#200908-201308

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iGRN28#200908-201308

*12-1.25PX35-27

main90105-14198×4iGRN28#201505-201908

*14-1.5PX35-30.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60300iGRN28#200908-201308

main47730-60350iGRN28#201908

47731PISTON, FRONT DISC BRAKE

main47731-60300×8iGRN28#200908-201308

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002×8iGRN28#200908-201308

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main47735-60300×4iGRN28#200908-201308

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010×2iGRN28#200908-201308

47749CLIP, PIN HOLD

main47743-60280×2iGRN28#200908-201308

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60300iGRN28#200908-201308

main47750-60350iGRN28#201505-201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60140iGRN28#200908-201308

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60140iGRN28#200908-201308

17 parts on this diagram · 1 diagram in section
