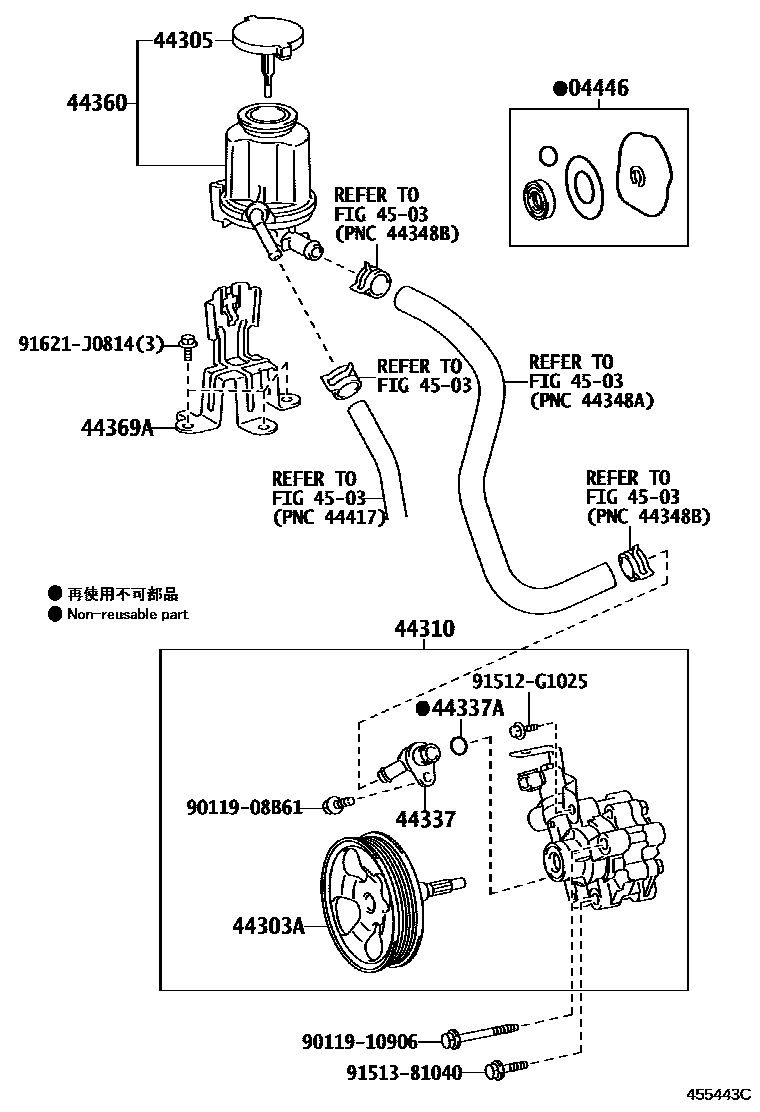

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-60260iGRN28#200908-201908

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60020iGRN28#200908-201908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28060iGRN28#200908-201207

sub44305-28061

main44305-28061iGRN28#201208-201908

44310PUMP ASSY, VANE

main44310-60540iGRN28#200908-201305

sub44310-60541

main44310-60541iGRN28#201306-202002

sub44310-60542

main44310-60542iGRN28#202003

44337UNION, POWER STEERING SUCTION PORT

main44337-60230iGRN28#200908-201908

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iGRN28#200908-201908

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iGRN28#200908-201207

sub44360-60321

main44360-60321iGRN28#201208-201908

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iGRN28#200908-201908

4503

9011908B61

main90119-08B61

9011910906

main90119-10906

91512G1025

main91512-G1025

9151381040

main91513-81040

91621J0814

main91621-J0814

14 parts on this diagram · 1 diagram in section
