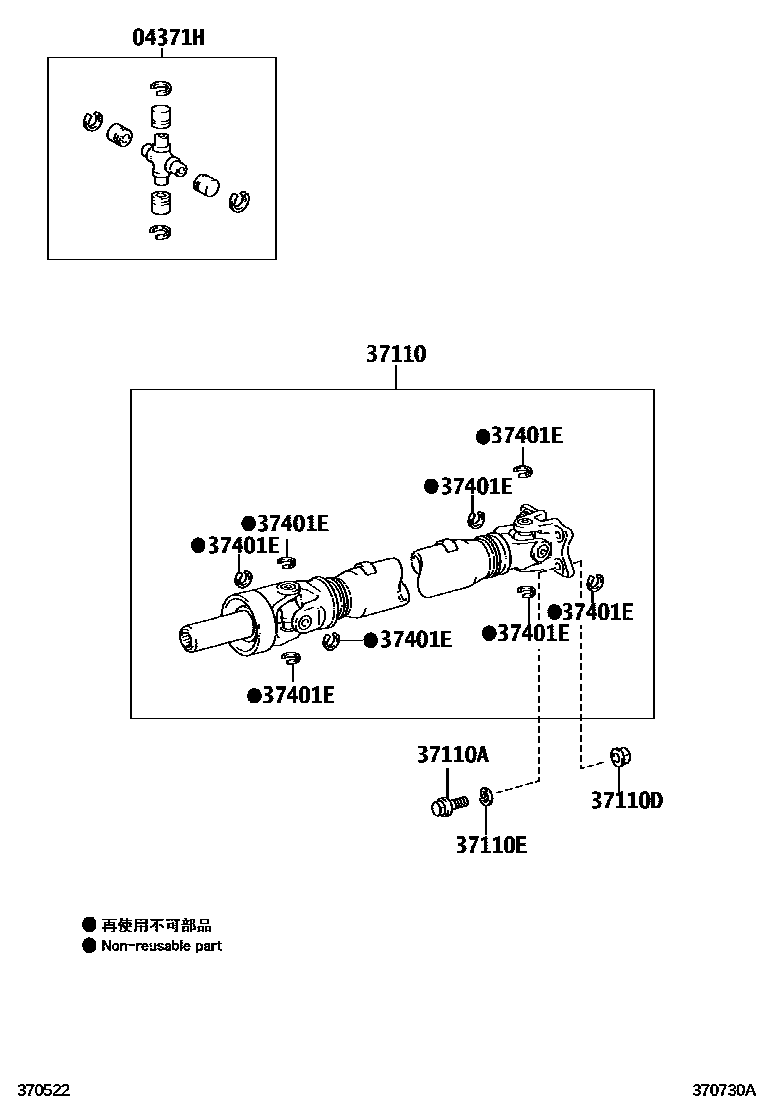

PROPELLER SHAFT & UNIVERSAL JOINT
04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
37110ABOLT (FOR PROPELLER SHAFT)
*11-1.00PX28-16
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
6 parts on this diagram · 3 diagrams in section
