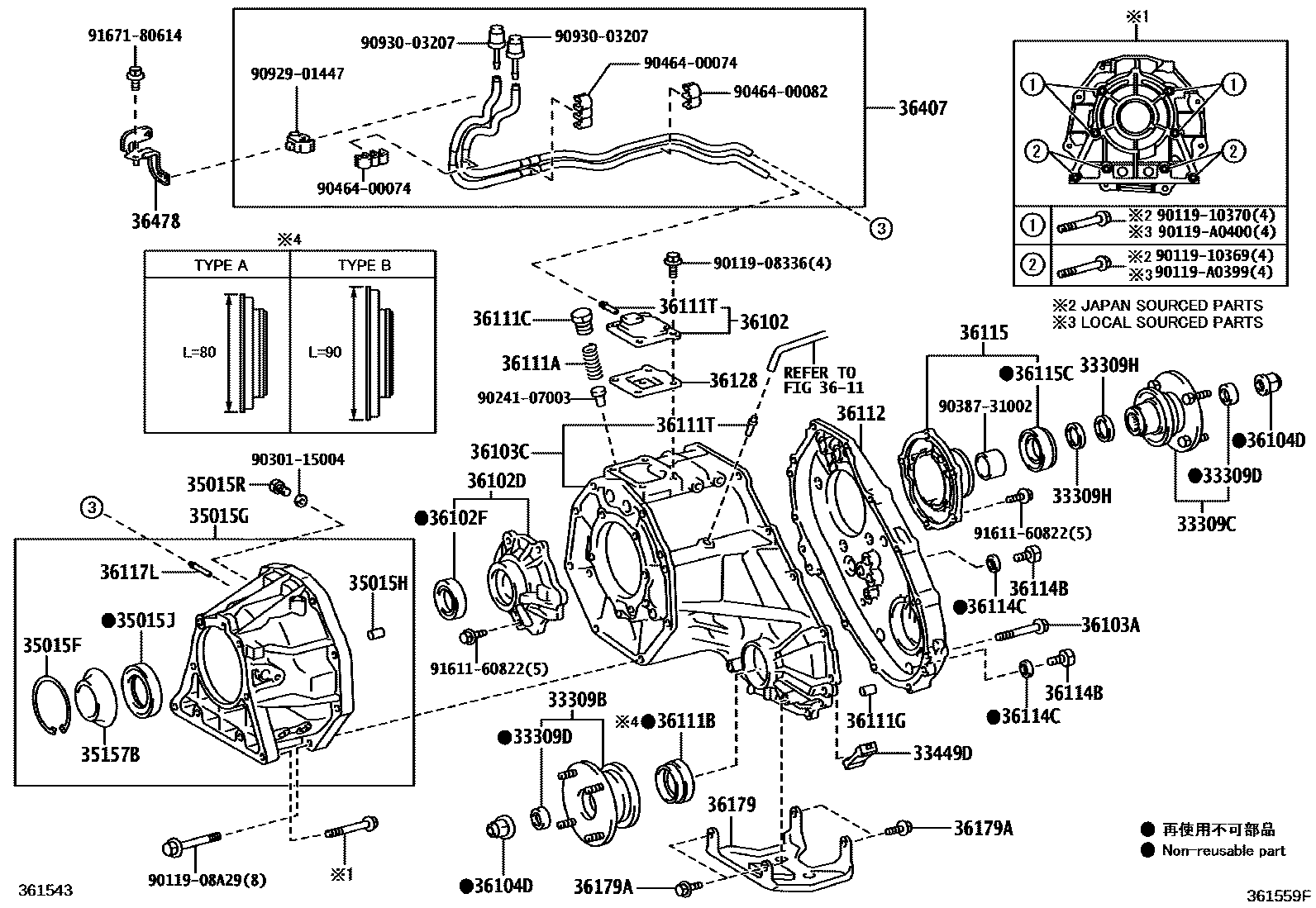

TRANSFER CASE & EXTENSION HOUSING

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35111iGRN285200908-201308

sub33309-35112

sub90311-41017

main33309-35111iGRN285201308-201411

PNC 36111B=TYPE A

sub33309-35112

sub90311-41017

main33309-35112iGRN285201411-201904

PNC 36111B=TYPE B

sub33309-35113

main33309-35113iGRN285201905-201908

PNC 36111B=TYPE B

main33309-35113iGRN285201908

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iGRN285200908-201908

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGRN285200908-201908

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030iGRN285200908-201908

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGRN285200908-201908

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRN285200908-201908

35015GADAPTER, TRANSFER, REAR

main35015-0C010iGRN285201205-201511

(L)

main35015-35120iGRN285200908-201908

(J)

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iGRN285200908-201908

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRN285200908-201908

35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRN285200908-201908

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGRN285200908-201908

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iGRN285200908-201908

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRN285200908-201908

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90311-43008iGRN285200908-201908

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGRN285200908-201908

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35070iGRN285200908-201908

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iGRN285200908-201908

3611

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGRN285200908-201908

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iGRN285200908-201308

main90311-41013iGRN285201308-201411

TYPE A:REFER ILLUST.

main90311-41017iGRN285201411-201908

TYPE B:REFER ILLUST.

main90311-41017iGRN285201908

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGRN285200908-201908

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRN285200908-201908

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRN285200908-201908

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-35090iGRN285200908-201908

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGRN285200908-201908

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGRN285200908-201908

36115HOUSING, TRANSFER EXTENSION

main36105-35050iGRN285200908-201908

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGRN285200908-201912

sub90311-41020

main90311-41020iGRN285201912

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGRN285200908-201908

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iGRN285200908-201908

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60030iGRN285200908-201908

36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)

main91611-G0820iGRN285200908-202309

main91671-80820iGRN285202310

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60230iGRN285200908-201908

36478BRACKET, TRANSFER BREATHER

main36478-60060iGRN285200908-201908

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

90119A0399

main90119-A0399

90119A0400

main90119-A0400

9024107003

main90241-07003

9030115004

main90301-15004

9038731002

main90387-31002

9046400074

main90464-00074

9046400082

main90464-00082

9092901447

main90929-01447

9093003207

main90930-03207

9161160822

main91611-60822

9167180614

main91671-80614

49 parts on this diagram · 1 diagram in section
