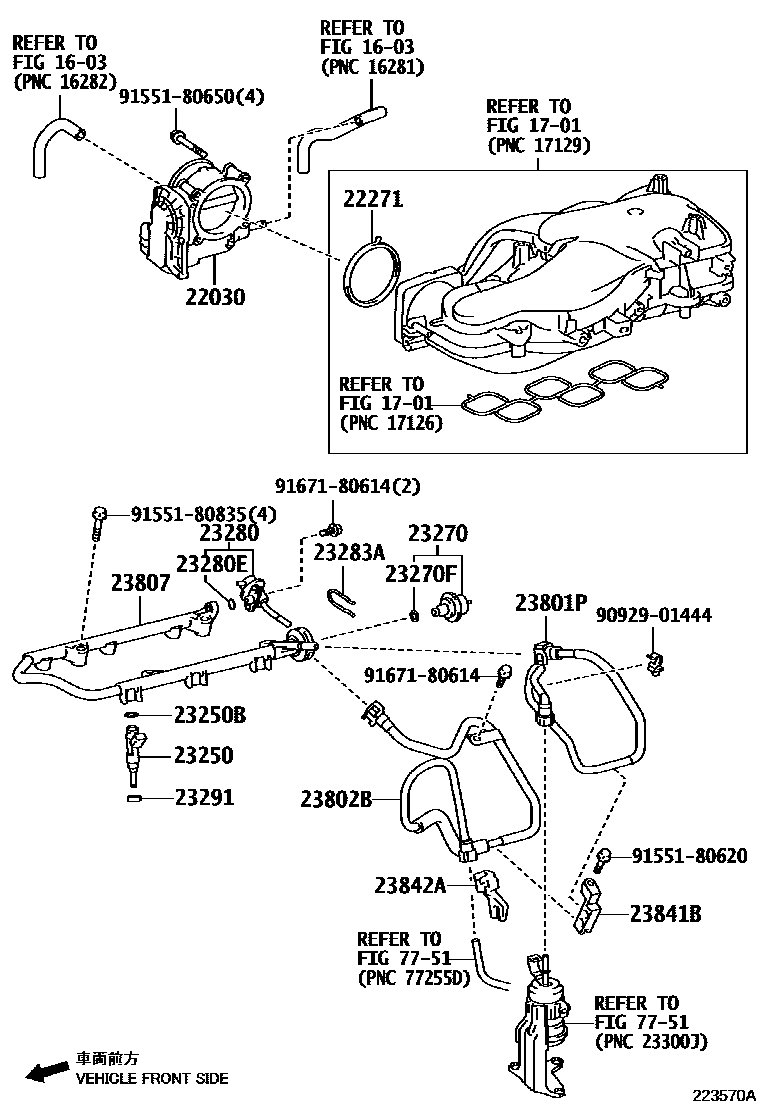

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31060i1GRFE..GRN28#201308-201908

22271GASKET, THROTTLE BODY

main22271-31040i1GRFE..GRN28#200908-201308

23250INJECTOR ASSY, FUEL

main23209-39215×6i1GRFE..GRN28#200908-201308

main23209-39445×6i1GRFE..GRN28#202212

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i1GRFE..GRN28#200908-201308

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31080i1GRFE..GRN28#200908-201201

main23270-31140i1GRFE..GRN28#201201-201308

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GRN28#200908-201308

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31050i1GRFE..GRN28#200908-201201

main23280-31051i1GRFE..GRN28#201201-201308

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07034i1GRFE..GRN28#200908-201308

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GRN28#201308-201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i1GRFE..GRN28#201908

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31170supersedes 23801-31160i1GRFE..GRN28#201406-201908

CHILE SPEC

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31110i1GRFE..GRN28#200908-201308

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31120i1GRFE..GRN28#201908

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050supersedes 23841-31080i1GRFE..GRN28#201406-201908

CHILE SPEC,NO.1

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-50010i1GRFE..GRN28#200908-201308

7751

9092901444

main90929-01444

9155180620

main91551-80620

9155180650

main91551-80650

9155180835

main91551-80835

9167180614

main91671-80614

23 parts on this diagram · 1 diagram in section
