IGNITION COIL & SPARK PLUG / GLOW PLUG

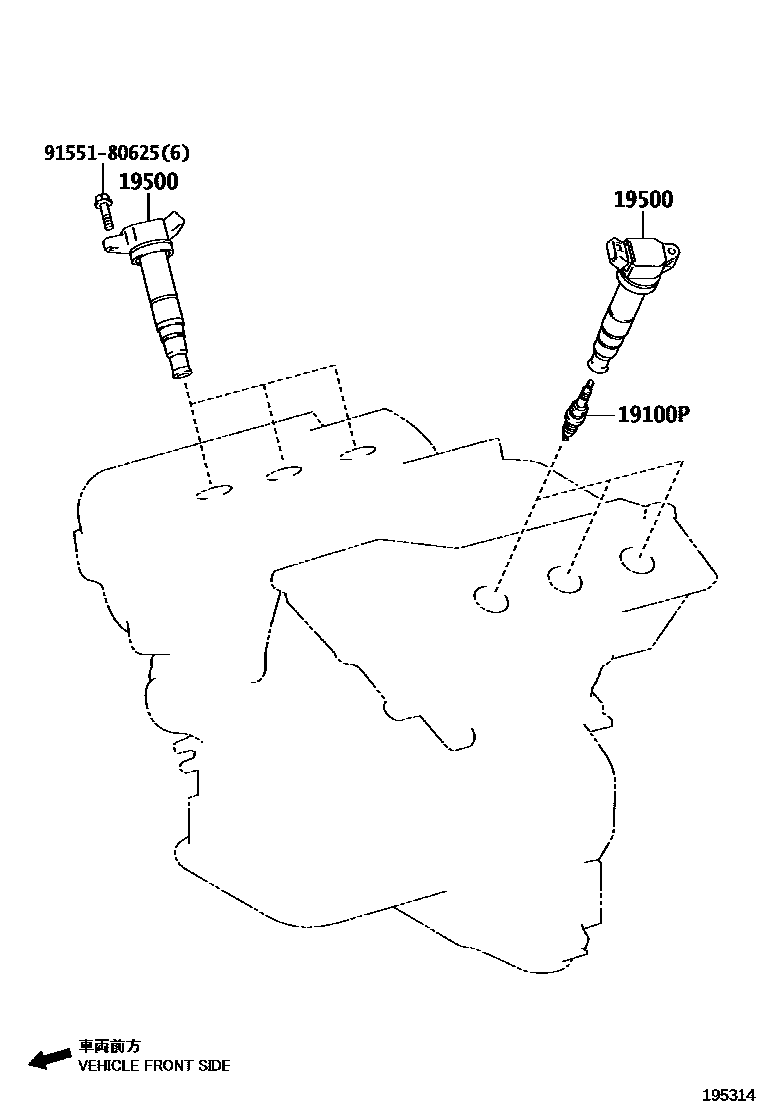

Parts diagram

19100PPLUG, SPARK

main90919-01191i200908-201306

SK20HR11

main90919-01233i201306-201908

SK16HR11

19500COIL ASSY, IGNITION

main90919-02256i200908-201908

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
