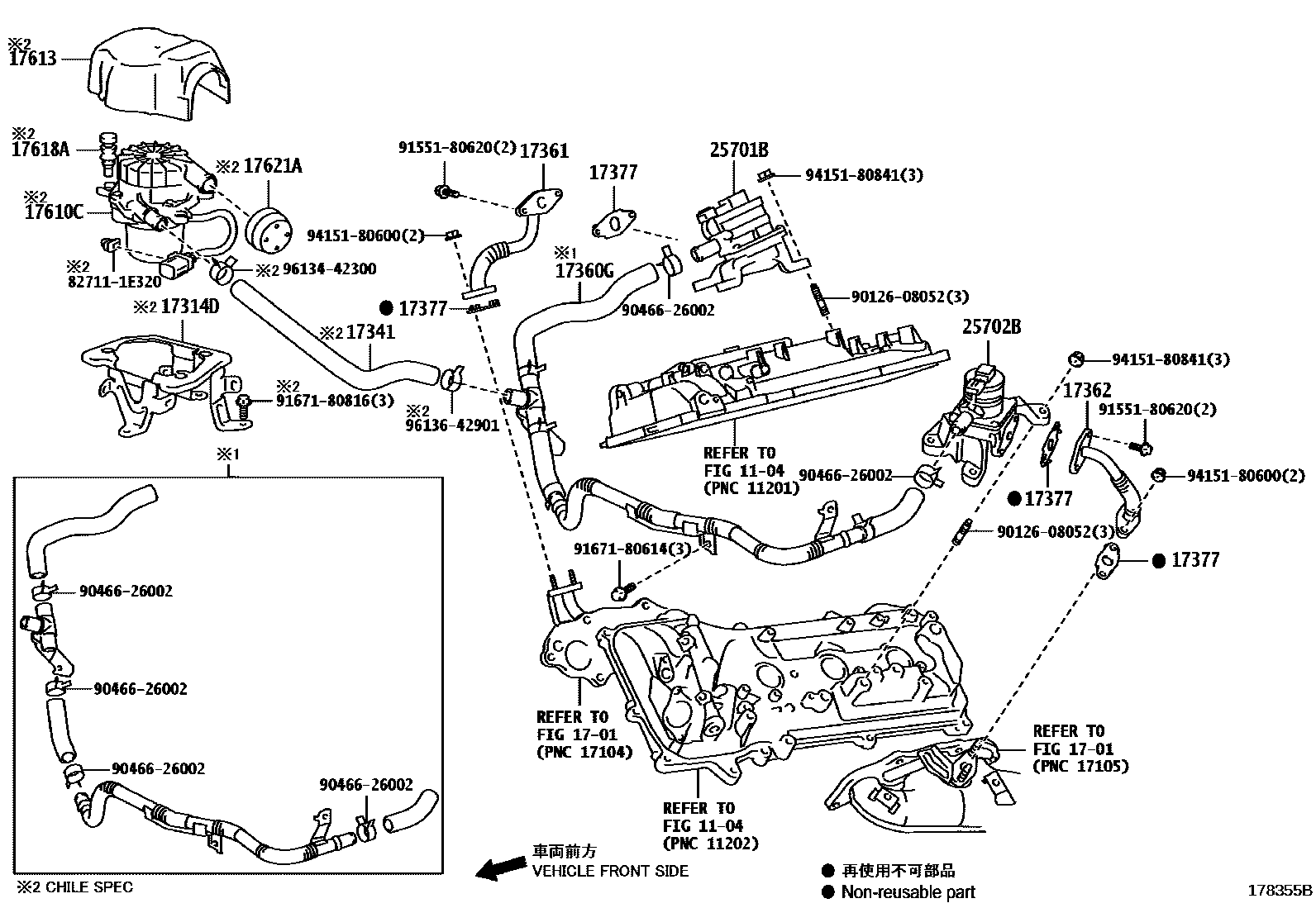

MANIFOLD AIR INJECTION SYSTEM

1104

1701

17314DBRACKET, AIR PUMP, NO.1

main17314-0W031i1GRFE..GRN28#201406-201908

CHILE SPEC

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-31080i1GRFE..GRN28#201406-201908

CHILE SPEC

17360GTUBE ASSY, AIR

main17360-31010i1GRFE..GRN28#201406-201908

CHILE SPEC

17361TUBE, AIR

main17361-31030i1GRFE..GRN28#201406-201908

CHILE SPEC

17362TUBE, AIR, NO.2

main17362-31020i1GRFE..GRN28#201406-201908

CHILE SPEC

17377GASKET, AIR TUBE, NO.2

main17377-38010i1GRFE..GRN28#201406-201908

CHILE SPEC

17610CPUMP ASSY, AIR

main17610-0C030i1GRFE..GRN28#201406-201908

CHILE SPEC

17613COVER, AIR PUMP

main17613-31010i1GRFE..GRN28#201406-201908

CHILE SPEC

17618AINSULATOR, AIR PUMP

main17618-0C010i1GRFE..GRN28#201406-201908

CHILE SPEC

17621AINLET, AIR PUMP

main17621-0C010i1GRFE..GRN28#201406-201908

CHILE SPEC

25701BVALVE SET, EMISSION CONTROL, NO.1

main25701-31013i1GRFE..GRN28#201406-201407

CHILE SPEC

sub25701-31014

main25701-31014i1GRFE..GRN28#201407-201908

CHILE SPEC

25702BVALVE SET, EMISSION CONTROL, NO.2

main25702-31013i1GRFE..GRN28#201406-201407

CHILE SPEC

sub25702-31014

main25702-31014i1GRFE..GRN28#201407-201908

CHILE SPEC

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608052

main90126-08052

9046626002

main90466-26002

9155180620

main91551-80620

9167180614

main91671-80614

9167180816

main91671-80816

9415180600

main94151-80600

9415180841

main94151-80841

9613442300

main96134-42300

9613642901

main96136-42901

24 parts on this diagram · 1 diagram in section
