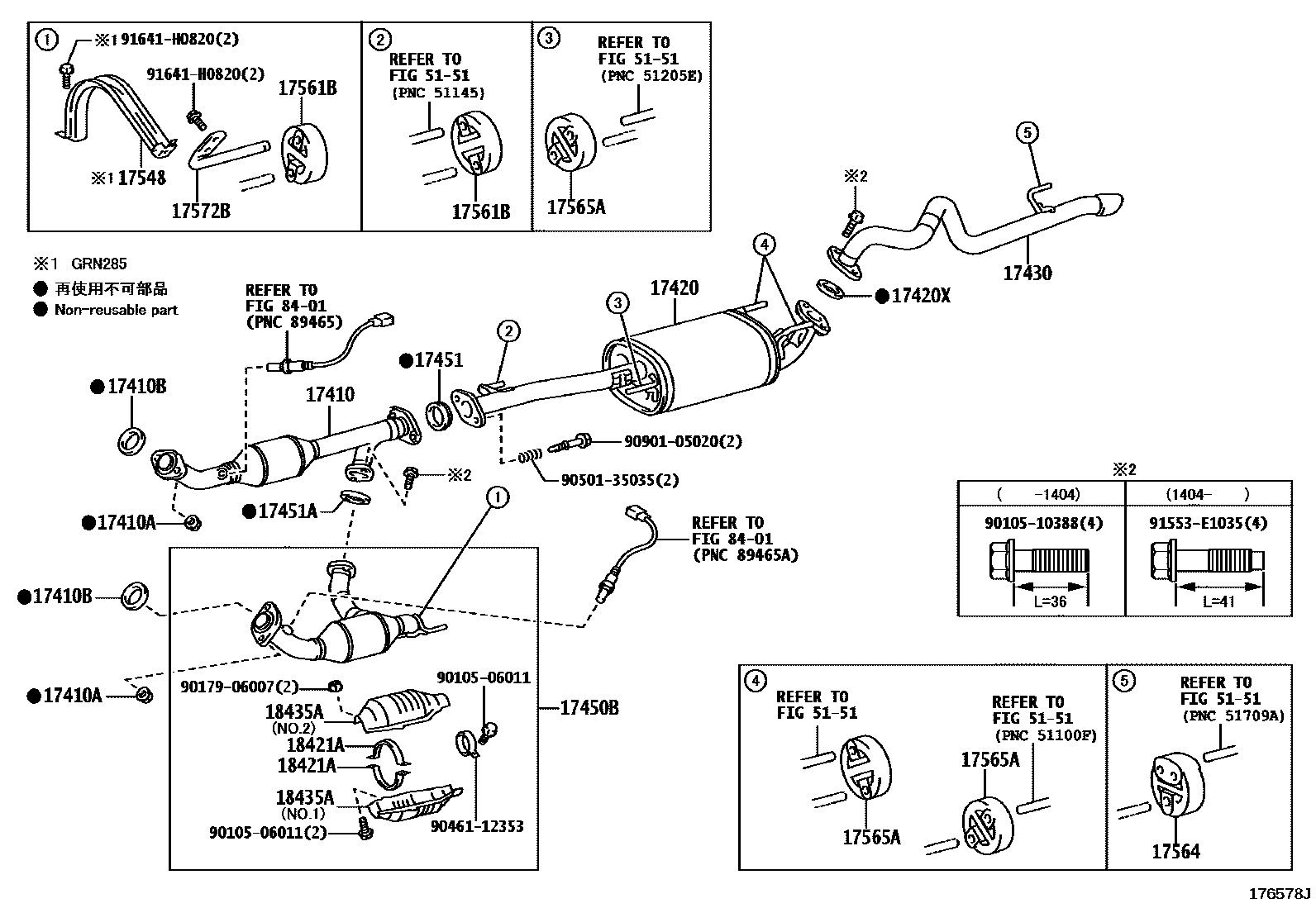

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-31A10i1GRFE..GRN28#200908-201908

*114=TOYOTA/TB7/Y

main17410-31F60i1GRFE..GRN28#201406-202208

CHILE SPEC

main17410-31L80i1GRFE..GRN28#201908

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i1GRFE..GRN28#200908-201908

17410BGASKET, EXHAUST PIPE

main90917-06089i1GRFE..GRN28#200908-201908

17420PIPE ASSY, EXHAUST, CENTER

main17420-31340i1GRFE..GRN28#200908-201404

sub17420-31360

main17420-31360i1GRFE..GRN28#201405-201908

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06090i1GRFE..GRN28#200908-201908

17430PIPE ASSY, EXHAUST, TAIL

main17430-31870i1GRFE..GRN28#200908-201908

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-31111i1GRFE..GRN28#200908-201908

*114=TOYOTA/TB8/Y

main17450-31190i1GRFE..GRN28#201406-202208

CHILE SPEC

main17450-31270i1GRFE..GRN28#201908

17451GASKET, EXHAUST PIPE

main17451-28070i1GRFE..GRN28#200908-200909

sub17451-28040

main17451-31020i1GRFE..GRN28#200910-201908

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06089i1GRFE..GRN28#200908-201908

17548BRACKET, EXHAUST PIPE STOPPER

main17548-31011i1GRFE..GRN285200908-201908

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040i1GRFE..GRN28#200908-201908

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-31050i1GRFE..GRN28#200908-201908

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1GRFE..GRN28#200908-201908

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31110i1GRFE..GRN28#200908-201908

18421ASTAY, CONVERTER PROTECTOR, LH

main18421-75010i1GRFE..GRN28#200908-201908

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-31030i1GRFE..GRN28#200908-201908

NO.2

main18445-31010i1GRFE..GRN28#200908-201908

NO.1

5151

8401

9010506011

main90105-06011

9010510388

main90105-10388

9017906007

main90179-06007

9046112353

main90461-12353

9050135035

main90501-35035

9090105020

main90901-05020

91553E1035

main91553-E1035

91641H0820

main91641-H0820

26 parts on this diagram · 1 diagram in section
