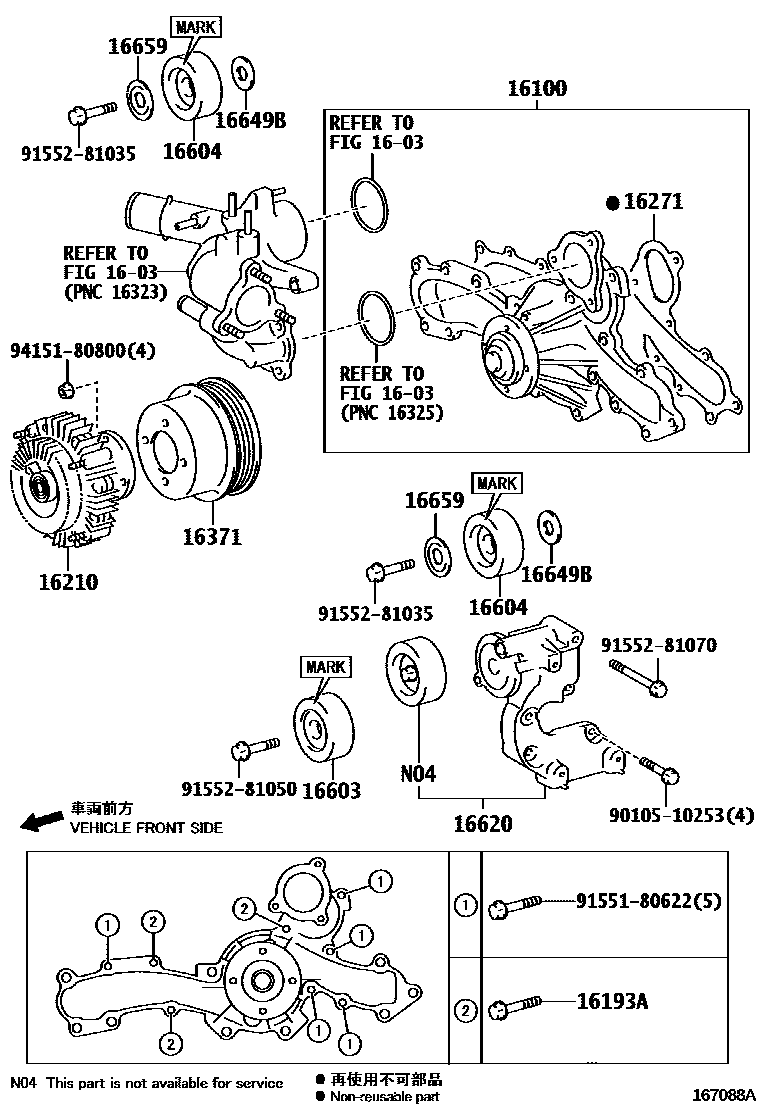

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39545i1GRFE..GRN28#200908-201908

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i1GRFE..GRN28#200908-201908

16210COUPLING ASSY, FLUID

main16210-31030i1GRFE..GRN28#200908-201003

sub16210-31040

main16210-31040i1GRFE..GRN28#201003-201908

16271GASKET, WATER PUMP

main16271-31040i1GRFE..GRN28#200908-201908

16371PULLEY, FAN

main16371-31040i1GRFE..GRN28#200908-201908

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i1GRFE..GRN28#200908-201908

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020i1GRFE..GRN28#200908-202407

MARK=PU107013ARMXY3

main16604-31030i1GRFE..GRN28#201105-201908

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31050i1GRFE..GRN28#200908-201002

sub16620-31051

main16620-31051i1GRFE..GRN28#201002-201908

16649BPLATE, IDLER PULLEY COVER

main16649-31020i1GRFE..GRN28#200908-202407

main16649-31020i1GRFE..GRN28#201105-201908

MARK=PU107013ARMXY3

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i1GRFE..GRN28#200908-202407

main16659-31011i1GRFE..GRN28#201105-201908

MARK=PU107013ARMXY3

9010510253

main90105-10253

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9155281070

main91552-81070

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
