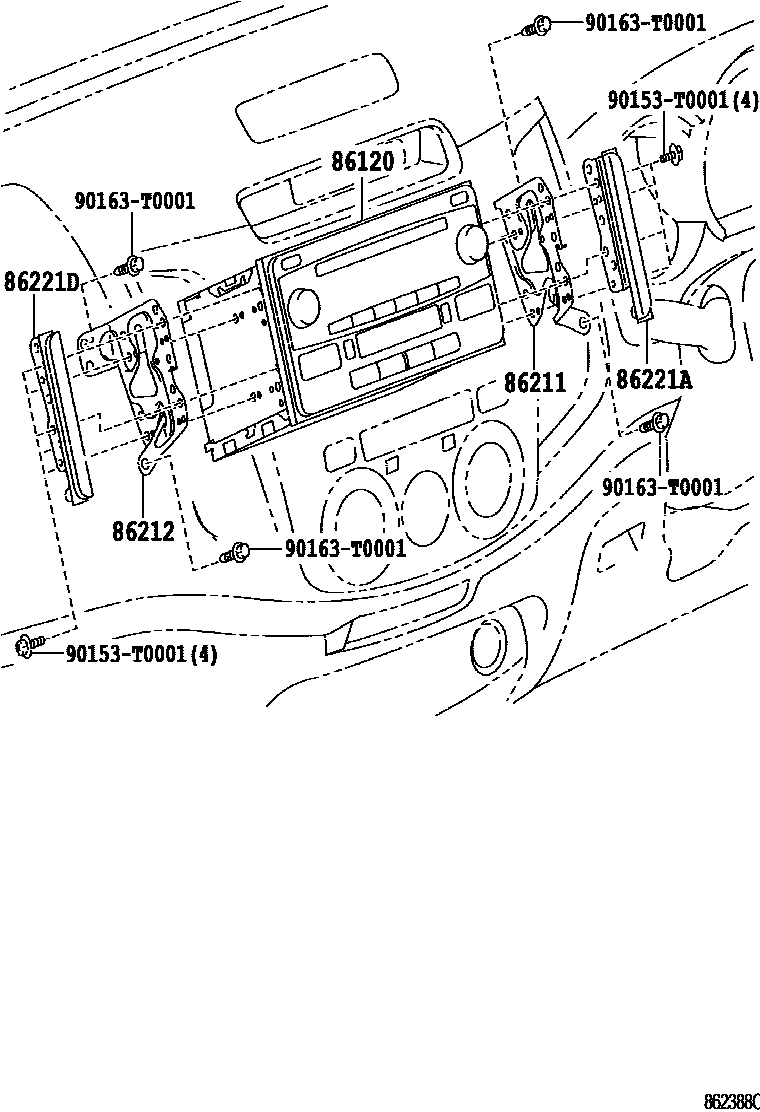

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-0K020iGGN50,TGN51,61..SUVW..GCC200507-201107

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER,TYPE A:REFER ILLUST.

main86120-0K030iLAN50..RHD200605-200810

FUJITSU TEN,ID=12803,TYPE B:REFER ILLUST.

sub86120-0K410

main86120-0K030iKUN51..RHD..SA200710-200810

FUJITSU TEN,ID=12803,AUDIO-AM/FM CD 4SPEAKER,TYPE B:REFER ILLUST.

sub86120-0K410

main86120-0K040iKUN51,LAN50,TGN51..LHD..SA200605-200810

PIONEER,ID=P2800,TYPE B:REFER ILLUST.

main86120-0K050iKUN51..5F..TH200501-200808

PANASONIC,ID=57807,TYPE C:REFER ILLUST.

main86120-0K060iKUN60..VN200902-201009

PIONEER,ID=P7833,TYPE C:REFER ILLUST.

main86120-0K060iGGN50,TGN51,61..IDSUV..GCC200611-201107

PIONEER,ID=P7833,AUDIO-AM/FM CASSETTE CD 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K070iKUN60,TGN61..SUVW..IDN200501-201107

PANASONIC,ID=57806,TYPE C:REFER ILLUST.

main86120-0K070iTGN51..SUVW..IDN200808-201107

PANASONIC,ID=57806,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K090iKUN61,TGN61..LA200509-200810

PIONEER,ID=P2802,AUDIO-AM/FM CD 4SPEAKER,TYPE B:REFER ILLUST.

main86120-0K100iGGN50,TGN51,61..SUVW..GCC200507-201107

PIONEER,ID=P7837,AUDIO-AM/FM CASSETTE CD 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K100iKUN60..VN201009-201010

PIONEER,ID=P7837,TYPE C:REFER ILLUST.

main86120-0K110iKUN51..LA200509-200810

PANASONIC,ID=57808,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K120iKUN60,TGN61..IDSUV..IDN200610-201107

PIONEER,ID=P7832,TYPE C:REFER ILLUST.

main86120-0K130iKUN51..GEN200708-200808

PANASONIC,ID=57832,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K140iKUN60,TGN61..SUVW..IDN200504-201107

PIONEER,ID=P7836,TYPE C:REFER ILLUST.

main86120-0K150iGGN50,60,KUN51,61..RHD..SA200602-200810

PIONEER,ID=P2803,TYPE D:REFER ILLUST.

main86120-0K180iGGN50,TGN51,61..IDSUV..GCC200611-201107

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER,TYPE A:REFER ILLUST.

main86120-0K190iTGN51..IDSUV..IDN200610-201107

PANASONIC,ID=57806,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K190iTGN51..IDSUV..IDN200610-201107

PANASONIC,ID=57806,TYPE C:REFER ILLUST.

main86120-0K200iTGN51..SUVW..IDN200504-200808

PANASONIC,ID=57814,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K200iTGN51..SUVW..IDN200504-200808

PANASONIC,ID=57814,TYPE C:REFER ILLUST.

main86120-0K210iTGN51..MA200508-200809

PANASONIC,ID=57816,AUDIO-AM/FM CASSETTE CD-CHANGER 6SPEAKER,TYPE C:REFER ILLUST.

main86120-0K240iGGN50,KUN51..LA200810

PIONEER,ID=P2843,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

sub86120-0K280

main86120-0K260iKUN51..IND;KUN51,61,TGN61..4FC..TH200808

PIONEER,ID=P2845,TYPE E:REFER ILLUST.

sub86120-0K300

main86120-0K260iKUN51..SUVW..GEN201008-201107

PIONEER,ID=P2845,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

sub86120-0K300

main86120-0K270iGGN50..GEN200808-201107

MATSUSHITA,ID=52849,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K280iGGN50,KUN51..LA200810

PANASONIC,ID=52845,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K300iKUN51..SUVW..GEN201008-201107

MATSUSHITA,ID=52842,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K300iKUN51..IND;KUN51,61,TGN61..4FC..TH200808

MATSUSHITA,ID=52842,TYPE E:REFER ILLUST.

main86120-0K330iKUN51,LAN50,TGN51..LHD..SA200810-201108

FUJITSU TEN,ID=12882,TYPE E:REFER ILLUST.

main86120-0K360iGGN50,60,KUN51,61..RHD..SA200810-201108

FUJITSU TEN,ID=13817,TYPE E:REFER ILLUST.

main86120-0K380iTGN51..MA200809-200910

MATSUSHITA,ID=52850,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

main86120-0K390iTGN61..4FC..LA200810-201009

PANASONIC,ID=52844,TYPE E:REFER ILLUST.

main86120-0K390iKUN61,TGN61..5F..LA200810

PANASONIC,ID=52844,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K410iKUN51..5F..TH;KUN60,LAN50..RHD..(SA,TH)200808-201108

FUJITSU TEN,ID=12881,TYPE E:REFER ILLUST.

main86120-0K410iKUN51,61..RHD..5F..SA200810-201108

FUJITSU TEN,ID=12881,AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

main86120-0K420iKUN51,60..5F..TH200808-201107

MATSUSHITA,ID=52840,TYPE E:REFER ILLUST.

main86120-0K480iGGN50..GEN200808-201107

PIONEER,ID=P2844,AUDIO-AM/FM CD-CHANGER 6SPEAKER,TYPE E:REFER ILLUST.

sub86120-0K270

86211BRACKET, RADIO, NO.1

main86211-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

86212BRACKET, RADIO, NO.2

main86212-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

86221APANEL, RADIO RECEIVER

86221DPANEL, RADIO RECEIVER

90153T0001

main90153-T0001

90163T0001

main90163-T0001

7 parts on this diagram · 3 diagrams in section
