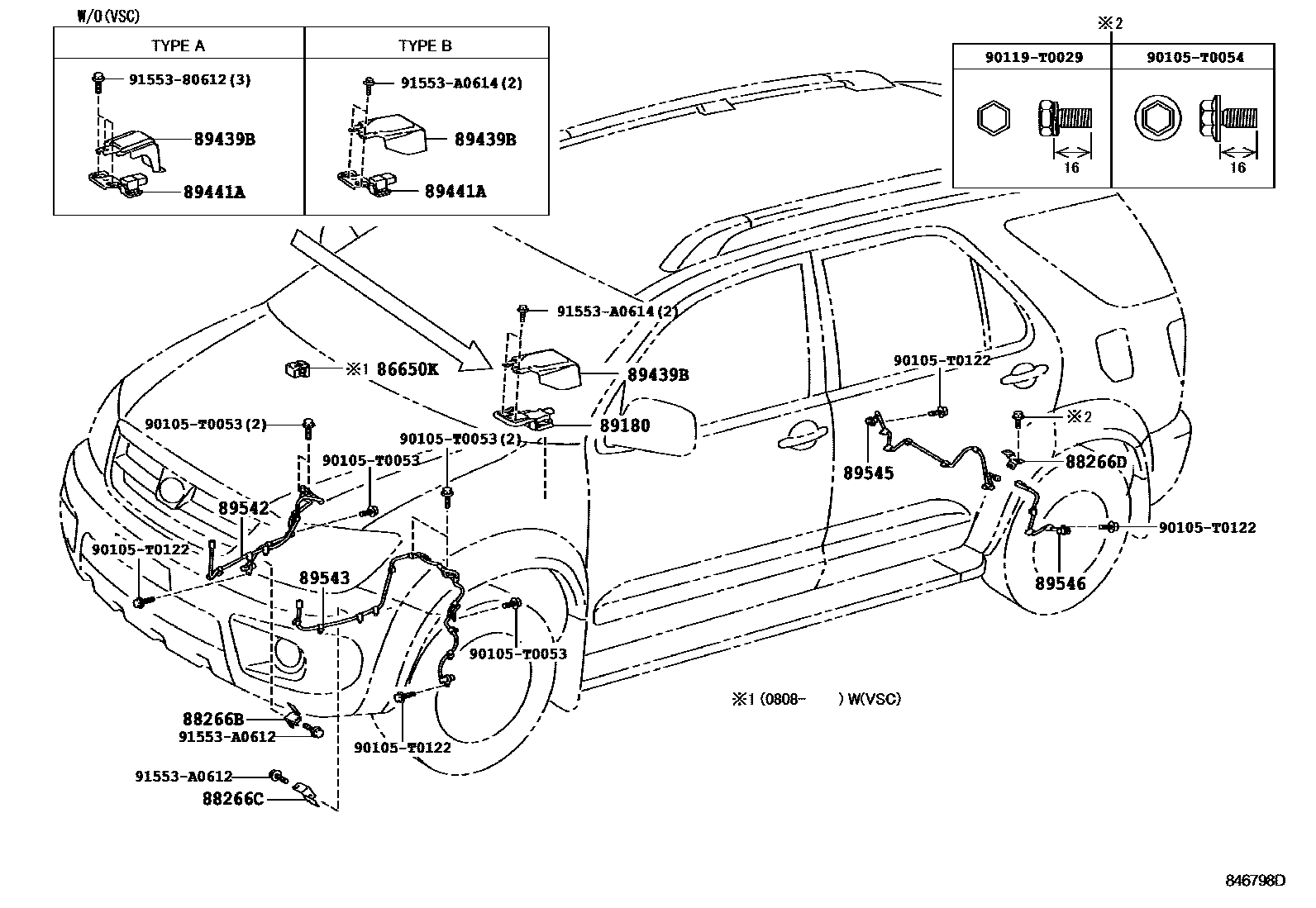

ABS & VSC

86650KBUZZER ASSY, SKID CONTROL

main86650-71010iKUN51,61..4FC..(SA,TH)200808-201010

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iLAN50,TGN51,61..GCC,SA200808

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K030iTGN61..4FC..LA200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-0K060iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-200812

89180SENSOR ASSY, YAWRATE

main89180-71010iKUN51,61..4FC..(SA,TH)200808-201108

89439BBRACKET, SENSOR

main89439-0K020iKUN50,TGN51..MA200710-200809

(L),T/P A:REF.ILLUST

main89439-0K030iGGN50,60..5FC..SA200808-201010

(L),T/P B:REF.ILLUST

main89439-71010iGGN50,KUN51..LA,SA200710-200810

(J),T/P A:REF.ILLUST

main89439-71020iGGN50,60..SA201010-201108

(J)

89441ASENSOR, DECELERATION

main89440-71010iTGN51..TH200501-200708

TYPE A:REFER ILLUST.

main89440-71020iGGN50,60..5FC..SA200808-201010

TYPE B:REFER ILLUST.

89542SENSOR, SPEED, FRONT RH

main89542-0K020iGGN50,60..5FC..SA200808-201010

main89542-71010iKUN51,61..4FC..(SA,TH)200808-201108

89543SENSOR, SPEED, FRONT LH

main89543-0K020iTGN61..4FC..LA200910

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main89543-71010iKUN51,61..4FC..(SA,TH)200808-201108

89545SENSOR, SPEED, REAR RH

main89545-0K020iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-200812

main89545-0K050iGGN50,60..5FC..SA200808-201010

main89545-71020iKUN51,61..4FC..(SA,TH)200808-201108

89546SENSOR, SPEED, REAR LH

main89546-0K020iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,200501-200812

main89546-0K050iKUN51,61..5F..SR;KUN51..4FC..(GEN,LA,PHL);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN;GGN60,KUN50,TGN51,61..(4FC,5FC)..(ANCOM,IDN,MA,PHL,TH,VN)200808-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main89546-71020iKUN51,61..4FC..(SA,TH)200808-201108

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

90119T0029

main90119-T0029

9155380612

main91553-80612

91553A0612

main91553-A0612

91553A0614

main91553-A0614

18 parts on this diagram · 1 diagram in section
