ELECTRONIC CONTROLED DIESEL (ECD)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
89454SENSOR, FUEL TEMPERATURE
89455ASENSOR, EGR VALVE POSITION
89661ACOMPUTER, ENGINE CONTROL
P/N LABEL=8966171020
P/N LABEL=896610K200
P/N LABEL=896610K210
P/N LABEL=8966171030
BRAZIL SPEC,P/N LABEL=896610K251
EXPORT FROM ARGENTINA,P/N LABEL=896610K290
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K290
P/N LABEL=896610K290
P/N LABEL=896610KA90
P/N LABEL=8966171050
LATIN AMERICA SPEC,P/N LABEL=896610K290
LATIN AMERICA SPEC,P/N LABEL=8966171050
EXPORT FROM ARGENTINA,P/N LABEL=8966171050
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171050
EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KA90,P/N LABEL=896610K290
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K300
P/N LABEL=896610K300
EXPORT FROM ARGENTINA,LABEL=-0K300,-71040
HIGH ALTITUDE COUNTRY SPEC,LABEL=-0K300,-71040
EXPORT FROM SOUTH AFRICA,P/N LABEL=896610K300
EXPORT FROM ARGENTINA,P/N LABEL=896610K300
P/N LABEL=8966171090
P/N LABEL=896610K320
BRAZIL SPEC,P/N LABEL=896610K350
BRAZIL SPEC,P/N LABEL=8966171130
EXPORT FROM ARGENTINA,P/N LABEL=896610K370
LATIN AMERICA SPEC,P/N LABEL=896610K370
LATIN AMERICA SPEC,P/N LABEL=8966171110
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171110
EXPORT FROM ARGENTINA,P/N LABEL=8966171110
P/N LABEL=896610K370,P/N LABEL=8966171110
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K370
P/N LABEL=8966171140
P/N LABEL=896610K400
P/N LABEL=896610K410
P/N LABEL=896610K490
P/N LABEL=896610K500
P/N LABEL=896610K870
BRAZIL SPEC,P/N LABEL=896610KF80
P/N LABEL=896610KG10
P/N LABEL=896610KG30
P/N LABEL=896610KJ20
P/N LABEL=896610KJ40
EXPORT FROM SOUTH AFRICA,LABEL=-0KJ40,-0KJ50
sub89661-0KJ40
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KJ60
EXPORT FROM ARGENTINA,P/N LABEL=896610KJ60
P/N LABEL=896610KJ60
LATIN AMERICA SPEC,P/N LABEL=896610KJ60
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KJ70
sub89661-0KJ60
EXPORT FROM SOUTH AFRICA,LABEL=-0KJ60,-0KJ70
sub89661-0KJ60
P/N LABEL=896610KJ80
P/N LABEL=896610KK00
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KK30
LATIN AMERICA SPEC,P/N LABEL=896610KK30
EXPORT FROM ARGENTINA,P/N LABEL=896610KK30
P/N LABEL=896610KN70
P/N LABEL=896610KQ30
P/N LABEL=896610KR30
P/N LABEL=896610KR80
LABEL=-0KS50,-0KS60
EXPORT FROM SOUTH AFRICA,LABEL=-0KS50,-0KS60
sub89661-0KS50
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KS70
EXPORT FROM ARGENTINA,P/N LABEL=896610KS70
LATIN AMERICA SPEC,P/N LABEL=896610KS70
ECUADOR SPEC,P/N LABEL=896610KS70
P/N LABEL=896610KS70
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KS80
sub89661-0KS70
EXPORT FROM SOUTH AFRICA,LABEL=-0KS70,-0KS80
sub89661-0KS70
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KT60
LATIN AMERICA SPEC,P/N LABEL=896610KT60
ECUADOR SPEC,P/N LABEL=896610KT60
EXPORT FROM ARGENTINA,P/N LABEL=896610KT60
P/N LABEL=896610KT80
BRAZIL SPEC,P/N LABEL=896610KU00
P/N LABEL=896610KU50
P/N LABEL=896610KV20
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171050
sub89661-0K290
BRAZIL SPEC,P/N LABEL=896610K250,P/N LABEL=8966171070
sub89661-0K250
BRAZIL SPEC,P/N LABEL=896610K350,P/N LABEL=8966171130
sub89661-0K350
89661DCUSHION, ENGINE CONTROL COMPUTER
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
221931C170RING, O(FOR LEVER CONNECTING PIN)
main22193-1C170
90105T0066
main90105-T0066
9011906915
main90119-06915
90119T0064
main90119-T0064
90159T0001
main90159-T0001
90178T0018
main90178-T0018
9017906110
main90179-06110
9043012221
main90430-12221
9043016010
main90430-16010
9331914008
main93319-14008

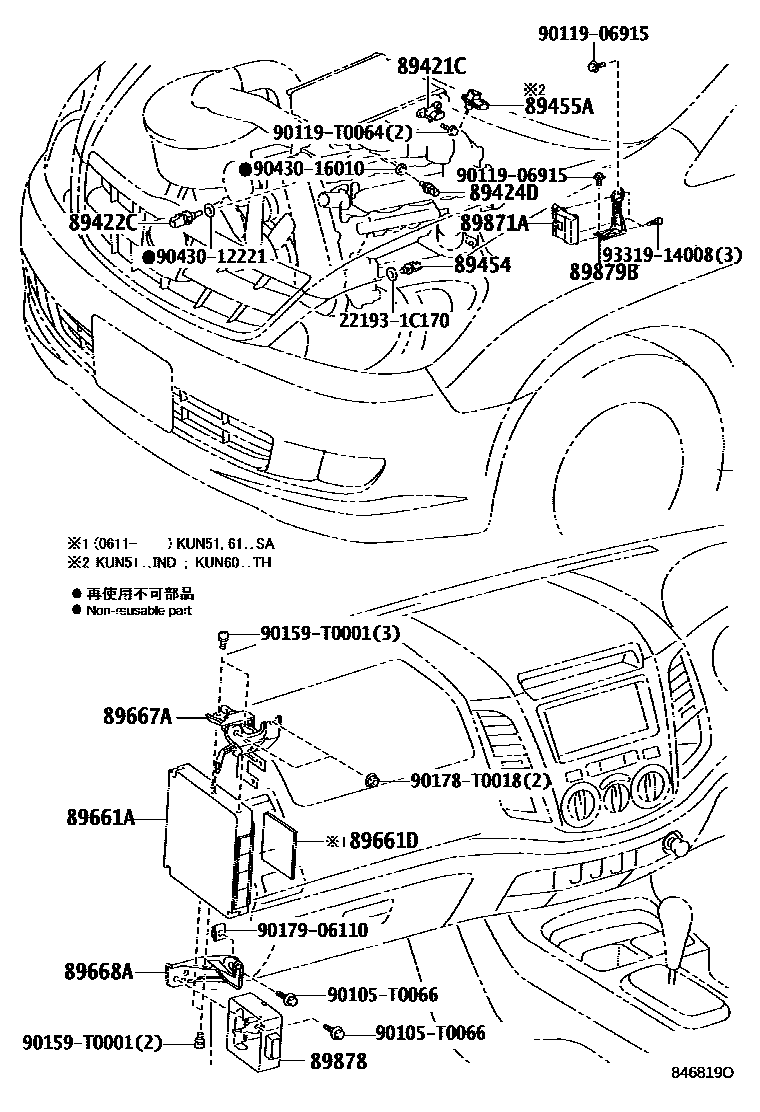

22 parts on this diagram · 6 diagrams in section
