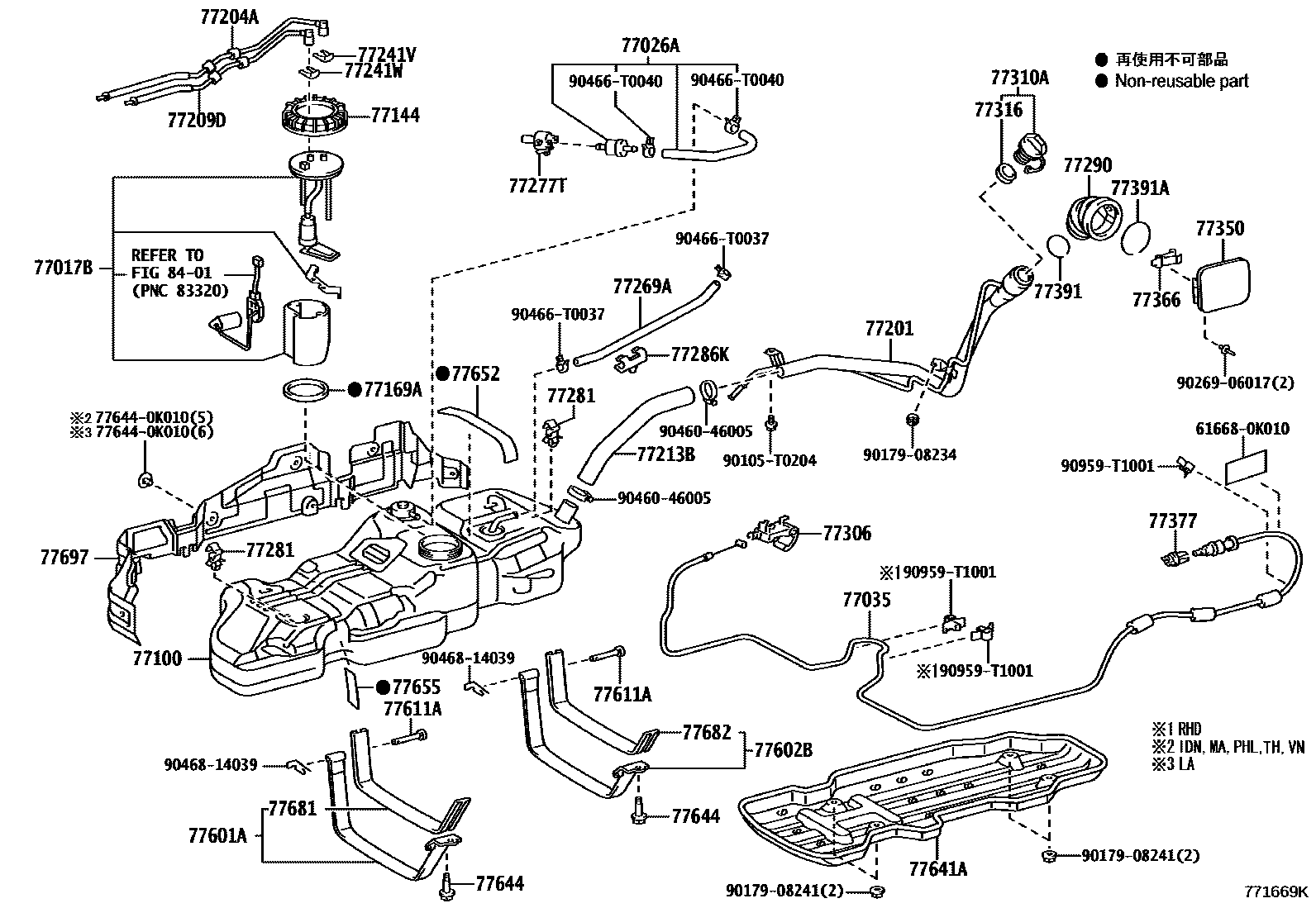

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK LEADED GASOLINE SPE0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE LEADED GASOLINE SPE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K020iKUN5#,6#200501-200512

sub77010-0K021

main77010-0K021iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200601-201204

main77010-0K070iKUN51,61,LAN50..GEN,IND,SA200808-201204

main77010-0K090iKUN51,61..LA200912-201204

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K020iGGN50..5FC..SA;GGN60..SUVW..5FC;GGN50,TGN51,61..ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN200501-201204

main77027-0K020iKUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN200501-201204

main77027-0K020iTGN51..SA200605-201108

LEADED GASOLINE

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0K070iGGN50,60..5FC..SA;KUN51,61,LAN50..RHD..SA200501-201103

main77035-0K080iKUN51,LAN50,TGN51..LHD..SA200504-201107

main77035-0K180iKUN50,TGN51..MA200508-201109

main77035-0K200iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

sub77035-0K080

main77035-0K260iKUN60,TGN51,61..IDSUV..IDN200812-201107

sub77035-0K261

main77035-0K270iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200812-201107

sub77035-0K271

main77035-0K340iGGN50,60,KUN51,61,LAN50..RHD..SA201104-201108

sub77035-0K070

main77035-0K350iKUN51,LAN50,TGN51..LHD..SA201104-201108

sub77035-0K080

77100TANK ASSY, FUEL

main77001-0K030iTGN51,61..IDN,MA,PHL,TH,VN200501-201204

main77001-0K040iKUN50,61,LAN50..5F..(MA,SA);KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)200501-201204

main77001-0K110iGGN60..SA;GGN50..GCC,GEN,SA200507-200810

main77001-0K150iTGN61..LA200509-200810

main77001-0K160iKUN51,61..LA200509-200810

main77001-0K170iGGN50,60..ANCOM200602-200903

main77001-0K260iGGN60..GEN200808-201108

main77001-0K260iTGN51..SA200810-201108

LEADED GASOLINE

main77001-0K270iKUN51,61,LAN50..GEN,IND,SA200808-201204

main77001-0K290iGGN50,60,TGN61..ANCOM,LA200810-201204

main77001-0K300iKUN51,61..LA200810-201204

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

main77144-0K010iTGN51..SA200810-201108

LEADED GASOLINE

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iKUN60..TH200501-201204

main77169-0K010iTGN51..SA200810-201108

LEADED GASOLINE

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K132iGGN60..GEN200501-201204

main77201-0K143iTGN51..SA200605-201108

LEADED GASOLINE

main77201-0K143iKUN51,60..SUVW,THSUV;KUN50,61,LAN50,TGN61..5F..(LA,MA,SA)200501-201204

77204ATUBE, FUEL TANK RETURN

main77204-0K030iTGN51..SA200810-201108

LEADED GASOLINE

main77204-0K030iTGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH200501-201204

main77204-0K040iKUN60..TH200501-201204

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K030iTGN51..SA200810-201108

LEADED GASOLINE

main77209-0K030iTGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH200501-201204

main77209-0K040iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-201204

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K030iKUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN200501-201204

main77213-0K070iTGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F);GGN50,TGN51..GCC,GEN,IDN,SA,TH200501-201204

main77213-0K070iTGN51..SA200605-201108

LEADED GASOLINE

77241VCLIP, TUBE JOINT

main77241-35450iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-201204

77241WCLIP, TUBE JOINT

main77241-33011iTGN51..SA200810-201108

LEADED GASOLINE

main77241-33011iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-201204

main77241-33011iTGN61..LA200810-201204

DENSO

77269AHOSE, FUEL TANK BREATHER

main77269-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

77277TBRACKET, CHECK VALVE

main77277-0K010iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-201204

main77277-0K010iTGN51..SA200605-201108

LEADED GASOLINE

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K040iKUN60..TH200501-201011

sub77281-0K070

main77281-0K040iTGN51..SA200810-201011

LEADED GASOLINE

sub77281-0K070

main77281-0K070iGGN60..GEN201012-201204

main77281-0K070iTGN51..SA201012-201108

LEADED GASOLINE

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K120iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-0K060iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0K010iGGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN200501-201107

main77306-0K030iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

77310ACAP ASSY, FUEL TANK

main77300-28010iTGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,TGN51..ANCOM,GCC,GEN,IDN,MA,SA,TH200501-200903

main77300-52030iGGN60..GEN200808-201107

main77300-60010iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-200810

77316GASKET, FUEL TANK CAP

main77316-16010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main77316-52040iGGN60..GEN200808-201107

77350LID ASSY, FUEL FILLER OPENING

main77350-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201204

77391RING, FUEL INLET BOX

main77371-35010iGGN50,60,KUN51,60,TGN51201112-201204

*300

main77391-0K010iGGN50,60,KUN51,60,TGN51201112-201204

*299

main77391-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201112

77391ARING, FUEL INLET BOX

main77391-0K020iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K050iKUN60..TH200501-201107

main77601-0K120iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main77601-0K130iGGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,61,LAN50,TGN51,61..GCC,GEN,IND,SA200808-201107

main77601-0K140iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K050iKUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)200501-201107

main77602-0K110iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main77602-0K120iGGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,61,LAN50,TGN51,61..GCC,GEN,IND,SA200808-201107

main77602-0K130iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

77611APIN (FOR FUEL TANK BAND)

main77653-0K040iGGN50,60,KUN51,61,LAN50,TGN51..GCC,SA200501-200608

sub77653-0K041

main77653-0K041iTGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH)200609-201107

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K040iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,ID200501-201107

main77641-0K080iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

77644BOLT, FUEL TANK

main77644-35030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200501-201107

77652CUSHION, FUEL TANK, NO.1

main77652-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

main77652-0K030iTGN51..SA200810-201108

LEADED GASOLINE

77655CUSHION, FUEL TANK, NO.3

main77653-0K050iGGN60..GEN200808-201107

main77653-0K050iTGN51..SA200810-201108

LEADED GASOLINE

77681SEAT, FUEL TANK BAND, RH

main77681-0K050iKUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN)200501-201107

main77681-0K080iGGN60..GEN200808-201107

77682SEAT, FUEL TANK BAND, LH

main77681-0K090iGGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61..GCC,GEN,IND,LA,SA200808-201107

main77682-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K020iTGN51;KUN50,61,LAN50..5F;TGN61..IDSUV..(GCC,IDN);KUN51,60,TGN61..SUVW,THSUV200501-201204

main77698-0K010iGGN60..SA;GGN50..GCC,GEN,SA200507-200810

8401

616680K010REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER LH

main61668-0K010

776440K010BOLT, FUEL TANK

main77644-0K010

90105T0204

main90105-T0204

9017908234

main90179-08234

9017908241

main90179-08241

9026906017

main90269-06017

9046046005

main90460-46005

90466T0037

main90466-T0037

90466T0040

main90466-T0040

9046814039

main90468-14039

90959T1001

main90959-T1001

47 parts on this diagram · 11 diagrams in section
