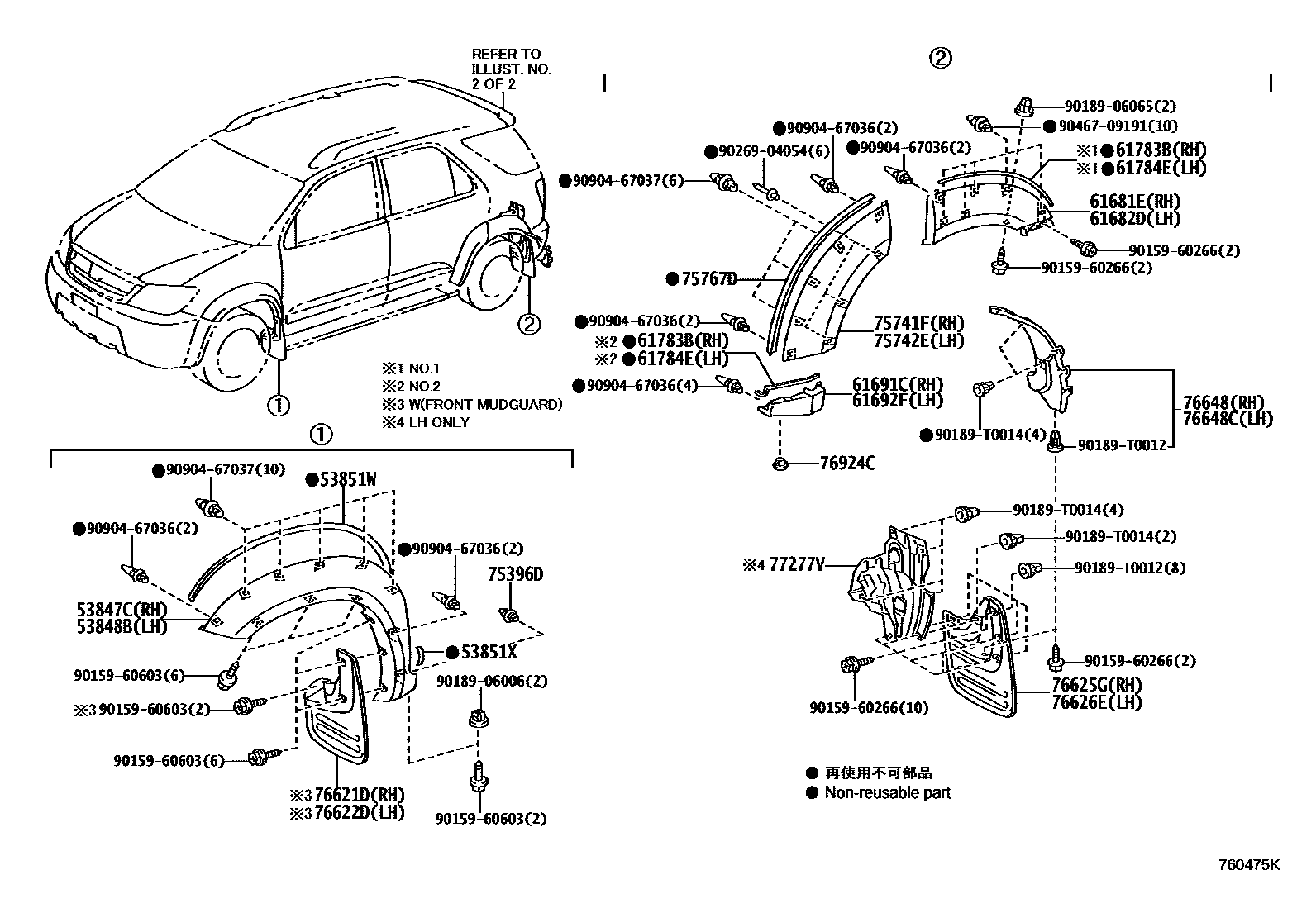

SPOILER & SIDE MUDGUARD

0001 1 0002 1

53847CEXTENSION, FRONT WHEEL OPENING, RH

main53847-0K901iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main53847-0K902iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main53847-0K903iGGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH200501-200610

sub53847-0K904

main53847-0K904iGGN60..GEN200610-201107

main53847-0K905iGGN50,KUN51,60,TGN51,61..IDSUV200903-201107

53848BEXTENSION, FRONT WHEEL OPENING, LH

main53848-0K901iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main53848-0K902iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main53848-0K903iGGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH200501-200610

sub53848-0K904

main53848-0K904iGGN60..GEN200610-201107

main53848-0K905iGGN50,KUN51,60,TGN51,61..IDSUV200903-201107

53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-0K030-B0iGGN50,60..ANCOM200508-200612

GRAY,RH

sub53851-0K031

main53851-0K030-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,RH

sub53851-0K031

main53851-0K030-B0iTGN61..IDN;GGN50,TGN51..IDSUV200504-200612

GRAY,040 ,1C0 ,4P9,RH

sub53851-0K031

main53851-0K030-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..SUVW..(GCC,IDN,PHL,TH)200501-200612

GRAY,040 ,1C0 ,4P9 ,8P1,RH

sub53851-0K031

main53851-0K030-B0iKUN51,61,TGN61..LA200509-200606

GRAY,056 ,1C0 ,4P9,RH

sub53851-0K031

main53851-0K030-C0iGGN50,60..ANCOM200508-200612

BLACK,RH

sub53851-0K031

main53851-0K030-C0iGGN50,TGN51,61..IDSUV200610-200612

BLACK,1E9 ,209 ,8P4,RH

sub53851-0K031

main53851-0K030-C0iGGN50,KUN51,60,TGN51,61..SUVW..(GCC,IDN,PHL,TH)200501-200612

BLACK,1E9 ,209 ,8P1 ,8P4,RH

sub53851-0K031

main53851-0K030-C0iKUN51,61,TGN61..LA200509-200606

BLACK,209 ,3Q2 ,6S3,RH

sub53851-0K031

main53851-0K030-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,RH

sub53851-0K031

main53851-0K031-B0iKUN51,61,TGN61..LA200607-200608

GRAY,056 ,1C0 ,4P9,RH

main53851-0K031-B0iKUN51,61,TGN61..LA200607-200903

GRAY,RH

main53851-0K031-B0iKUN50,TGN51..MA200809-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,RH

main53851-0K031-B0iGGN50..5FC..SA;GGN50..GCC,GEN,LA;GGN60..5FC..(GEN,SA);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,LA,PHL,SA,TH200608-201110

GRAY,040 ,1C0 ,4P9,RH

main53851-0K031-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,RH

main53851-0K031-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200608-200810

GRAY,040 ,056 ,1C0 ,4P9,RH

main53851-0K031-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200608-200810

BLACK,209 ,6S3 ,8P4,RH

main53851-0K031-C0iKUN51,61,TGN61..LA200607-200608

BLACK,209 ,3Q2 ,6S3,RH

main53851-0K031-C0iKUN51,61,TGN61..LA200607-200903

BLACK,RH

main53851-0K031-C0iTGN51..TH200612-200808

BLACK,1E9 ,209 ,8P4,RH

main53851-0K031-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,RH

main53851-0K031-C0iKUN51,61,TGN61..LA200608-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,RH

main53851-0K031-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,RH

main53851-0K031-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,RH

main53851-0K031-C0iKUN50,TGN51..MA200809-201109

BLACK,1E3 ,204,RH

main53851-0K031-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,RH

main53851-0K031-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,RH

main53852-0K030-B0iKUN51,61,TGN61..LA200509-200606

GRAY,056 ,1C0 ,4P9,LH

sub53852-0K031

main53852-0K030-B0iTGN61..IDN;GGN50,TGN51..IDSUV200504-200612

GRAY,040 ,1C0 ,4P9,LH

sub53852-0K031

main53852-0K030-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..SUVW..(GCC,IDN,PHL,TH)200501-200612

GRAY,040 ,1C0 ,4P9 ,8P1,LH

sub53852-0K031

main53852-0K030-B0iGGN50,60..ANCOM200508-200606

GRAY,LH

sub53852-0K031

main53852-0K030-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,LH

sub53852-0K031

main53852-0K030-B0iKUN50,TGN51..MA200508-200612

BLACK,LH

sub53852-0K031

main53852-0K030-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,LH

sub53852-0K031

main53852-0K030-C0iKUN50,TGN51..MA200508-200612

GRAY,LH

sub53852-0K031

main53852-0K030-C0iGGN50,TGN51,61..IDSUV200610-200612

BLACK,1E9 ,209 ,8P4,LH

sub53852-0K031

main53852-0K030-C0iKUN51,61,TGN61..LA200509-200606

BLACK,209 ,3Q2 ,6S3,LH

sub53852-0K031

main53852-0K030-C0iGGN50,60..ANCOM200508-200606

BLACK,LH

sub53852-0K031

main53852-0K030-C0iGGN50,KUN51,60,TGN51,61..SUVW..(GCC,IDN,PHL,TH)200501-200612

BLACK,1E9 ,209 ,8P1 ,8P4,LH

sub53852-0K031

main53852-0K031-B0iKUN51,61,TGN61..LA200607-200903

GRAY,LH

main53852-0K031-B0iKUN51,61,TGN61..LA200607-200608

GRAY,056 ,1C0 ,4P9,LH

main53852-0K031-B0iKUN50,TGN51..MA200809-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,LH

main53852-0K031-B0iKUN51,61,TGN61..LA200608-200810

GRAY,040 ,056 ,1C0 ,4P9,LH

main53852-0K031-B0iGGN50..5FC..SA;GGN50..GCC,GEN,LA;GGN60..5FC..(GEN,SA);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,LA,PHL,SA,TH200608-201110

GRAY,040 ,1C0 ,4P9,LH

main53852-0K031-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,LH

main53852-0K031-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,LH

main53852-0K031-C0iKUN50,TGN51..MA200607-200903

BLACK,LH

main53852-0K031-C0iKUN51,61,TGN61..LA200607-200608

BLACK,209 ,3Q2 ,6S3,LH

main53852-0K031-C0iTGN51..TH200612-200808

BLACK,1E9 ,209 ,8P4,LH

main53852-0K031-C0iKUN51,61,TGN61..LA200608-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,LH

main53852-0K031-C0iKUN51,61,TGN61..LA200608-200810

BLACK,209 ,6S3 ,8P4,LH

main53852-0K031-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,LH

main53852-0K031-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,LH

main53852-0K031-C0iKUN50,TGN51..MA200809-201109

BLACK,1E3 ,204,LH

main53852-0K031-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,LH

main53852-0K031-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,LH

53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-0K010iGGN50,60,KUN51,61,TGN61..ANCOM,LA200501-200612

sub53855-0K011

main53855-0K011iTGN51..TH200608-201107

61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH

main61681-0K901iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main61681-0K902iKUN51,61,TGN61..LA200509-201204

main61681-0K903iGGN50,KUN51,60,TGN51,61200501-200508

sub61681-0K907

main61681-0K907iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200508-201202

main61681-0K917iGGN50,KUN51,60,TGN51,61..IDSUV200903-201107

61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH

main61682-0K901iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main61682-0K902iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

main61682-0K905iGGN50,KUN51,60,TGN51,61200501-200508

sub61682-0K907

main61682-0K907iKUN50,TGN51..MA200508-201202

main61682-0K917iGGN50,KUN51,60,TGN51,61..IDSUV200903-201107

61691CEXTENSION, REAR WHEEL OPENING, NO.2 RH

main61691-0K901iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200501-201107

61692FEXTENSION, REAR WHEEL OPENING, NO.2 LH

main61692-0K901iTGN51..TH200501-201107

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0K070-B0iKUN50,TGN51..MA200508-200607

GRAY,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..GCC,IDN,PHL,TH200501-200607

GRAY,040 ,1C0 ,4P9 ,8P1,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iTGN61..IDN200504-200607

GRAY,040 ,1C0 ,4P9,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iKUN50,TGN51..MA200508-200607

BLACK,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200607

BLACK,1E9 ,209 ,8P1 ,8P4,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K071-B0iKUN50,TGN51..MA200608-200809

GRAY,NO.1

main61783-0K071-B0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200608-201108

GRAY,040 ,1C0 ,4P9,NO.1

main61783-0K071-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,NO.1

main61783-0K071-B0iKUN50,TGN51..MA200909-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1

main61783-0K071-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,NO.1

main61783-0K071-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,NO.1

main61783-0K071-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200608-200808

BLACK,1E9 ,209 ,8P4,NO.1

main61783-0K071-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200608-200810

BLACK,209 ,6S3 ,8P4,NO.1

main61783-0K071-C0iKUN50,TGN51..MA200909-201109

BLACK,1E3 ,204,NO.1

main61783-0K071-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,NO.1

main61783-0K071-C0iKUN60,TGN51..VN200608-201202

BLACK,NO.1

main61783-0K071-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,NO.1

main61783-0K090-B0iKUN51,61,TGN61..LA200509-200607

GRAY,056 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K090-B0iGGN50,60..ANCOM200602-200607

GRAY,NO.1

sub61783-0K091

main61783-0K090-C0iGGN50,60..ANCOM200602-200607

BLACK,NO.1

sub61783-0K091

main61783-0K090-C0iKUN51,61,TGN61..LA200509-200607

BLACK,209 ,3Q2 ,6S3,NO.1

sub61783-0K091

main61783-0K091-B0iGGN50..ANCOM200608-200903

GRAY,NO.1

sub61783-0K091

main61783-0K091-B0iKUN51,61,TGN61..LA200608-200810

GRAY,040 ,056 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K091-B0iGGN50,KUN51,61,TGN61..LA200810-201110

GRAY,040 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K091-C0iKUN51,61,TGN61..LA200608-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,NO.1

sub61783-0K091

main61783-0K091-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,NO.1

sub61783-0K091

main61783-0K091-C0iGGN50..ANCOM200608-200903

BLACK,NO.1

sub61783-0K091

main61783-0K091-C0iGGN50,60..ANCOM200812-201204

BLACK,000,NO.1

sub61783-0K091

main61783-0K100-B0iTGN61..IDN200504-200607

GRAY,040 ,1C0 ,4P9,NO.2

sub61783-0K101

main61783-0K100-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,NO.2

sub61783-0K101

main61783-0K100-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..GCC,IDN,PHL,TH200501-200607

GRAY,040 ,1C0 ,4P9 ,8P1,NO.2

sub61783-0K101

main61783-0K100-B0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200607

GRAY,NO.2

sub61783-0K101

main61783-0K100-B0iKUN51,61,TGN61..LA200509-200607

GRAY,056 ,1C0 ,4P9,NO.2

sub61783-0K101

main61783-0K100-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,NO.2

sub61783-0K101

main61783-0K100-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200607

BLACK,1E9 ,209 ,8P1 ,8P4,NO.2

sub61783-0K101

main61783-0K100-C0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200607

BLACK,NO.2

sub61783-0K101

main61783-0K100-C0iKUN51,61,TGN61..LA200509-200607

BLACK,209 ,3Q2 ,6S3,NO.2

sub61783-0K101

main61783-0K101-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200607-200810

GRAY,040 ,056 ,1C0 ,4P9,NO.2

sub61783-0K101

main61783-0K101-B0iKUN51,61,TGN61..LA200607-201110

GRAY,040 ,1C0 ,4P9,NO.2

sub61783-0K101

main61783-0K101-B0iKUN50,TGN51..MA200809-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2

sub61783-0K101

main61783-0K101-B0iGGN50..ANCOM200607-200903

GRAY,NO.2

sub61783-0K101

main61783-0K101-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,NO.2

sub61783-0K101

main61783-0K101-C0iGGN50..ANCOM200607-200903

BLACK,NO.2

sub61783-0K101

main61783-0K101-C0iTGN51..TH200607-200808

BLACK,1E9 ,209 ,8P4,NO.2

sub61783-0K101

main61783-0K101-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,NO.2

sub61783-0K101

main61783-0K101-C0iKUN51,61,TGN61..LA200607-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,NO.2

sub61783-0K101

main61783-0K101-C0iKUN51,61,TGN61..LA200607-200810

BLACK,209 ,6S3 ,8P4,NO.2

sub61783-0K101

main61783-0K101-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,NO.2

sub61783-0K101

main61783-0K101-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,NO.2

sub61783-0K101

main61783-0K101-C0iKUN50,TGN51..MA200809-201109

BLACK,1E3 ,204,NO.2

sub61783-0K101

main61783-0K101-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,NO.2

sub61783-0K101

main61783-0K101-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,NO.2

sub61783-0K101

61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2

main61783-0K070-B0iKUN50,TGN51..MA200508-200607

GRAY,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..GCC,IDN,PHL,TH200501-200607

GRAY,040 ,1C0 ,4P9 ,8P1,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-B0iTGN61..IDN200504-200607

GRAY,040 ,1C0 ,4P9,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iKUN50,TGN51..MA200508-200607

BLACK,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200607

BLACK,1E9 ,209 ,8P1 ,8P4,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K070-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,NO.1

sub61783-0K070

sub61783-0K071

main61783-0K071-B0iTGN51..TH200608-201108

GRAY,040 ,1C0 ,4P9,NO.1

main61783-0K071-B0iKUN50,TGN51..MA200608-200809

GRAY,NO.1

main61783-0K071-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,NO.1

main61783-0K071-B0iKUN50,TGN51..MA200909-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1

main61783-0K071-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,NO.1

main61783-0K071-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,NO.1

main61783-0K071-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200608-200810

BLACK,209 ,6S3 ,8P4,NO.1

main61783-0K071-C0iKUN50,TGN51..MA200608-201202

BLACK,NO.1

main61783-0K071-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200608-200808

BLACK,1E9 ,209 ,8P4,NO.1

main61783-0K071-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,NO.1

main61783-0K071-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,NO.1

main61783-0K071-C0iKUN50,TGN51..MA200909-201109

BLACK,1E3 ,204,NO.1

main61783-0K090-B0iKUN51,61,TGN61..LA200509-200607

GRAY,056 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K090-B0iGGN50,60..ANCOM200602-200607

GRAY,NO.1

sub61783-0K091

main61783-0K090-C0iGGN50,60..ANCOM200602-200607

BLACK,NO.1

sub61783-0K091

main61783-0K090-C0iKUN51,61,TGN61..LA200509-200607

BLACK,209 ,3Q2 ,6S3,NO.1

sub61783-0K091

main61783-0K091-B0iGGN60..ANCOM200608-200903

GRAY,NO.1

sub61783-0K091

main61783-0K091-B0iGGN50,KUN51,61,TGN61..LA200810-201110

GRAY,040 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K091-B0iKUN51,61,TGN61..LA200608-200810

GRAY,040 ,056 ,1C0 ,4P9,NO.1

sub61783-0K091

main61783-0K091-C0iKUN51,61,TGN61..LA200608-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,NO.1

sub61783-0K091

main61783-0K091-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,NO.1

sub61783-0K091

main61783-0K091-C0iGGN60..ANCOM200608-200903

BLACK,NO.1

sub61783-0K091

main61783-0K091-C0iGGN50,60..ANCOM200812-201204

BLACK,000,NO.1

sub61783-0K091

main61784-0K100-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..GCC,IDN,PHL,TH200501-200607

GRAY,040 ,1C0 ,4P9 ,8P1,NO.2

sub61784-0K101

main61784-0K100-B0iTGN61..IDN200504-200607

GRAY,040 ,1C0 ,4P9,NO.2

sub61784-0K101

main61784-0K100-B0iKUN51,61,TGN61..LA200509-200607

GRAY,056 ,1C0 ,4P9,NO.2

sub61784-0K101

main61784-0K100-B0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200607

GRAY,NO.2

sub61784-0K101

main61784-0K100-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1,NO.2

sub61784-0K101

main61784-0K100-C0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200607

BLACK,NO.2

sub61784-0K101

main61784-0K100-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200607

BLACK,1E9 ,209 ,8P1 ,8P4,NO.2

sub61784-0K101

main61784-0K100-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200607

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4,NO.2

sub61784-0K101

main61784-0K100-C0iKUN51,61,TGN61..LA200509-200607

BLACK,209 ,3Q2 ,6S3,NO.2

sub61784-0K101

main61784-0K101-B0iKUN50,TGN51..MA200809-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2

sub61784-0K101

main61784-0K101-B0iTGN51..TH200607-201110

GRAY,040 ,1C0 ,4P9,NO.2

sub61784-0K101

main61784-0K101-B0iKUN50,TGN51..MA200607-200903

GRAY,NO.2

sub61784-0K101

main61784-0K101-B0iKUN51,61,TGN61..LA200607-200810

GRAY,040 ,056 ,1C0 ,4P9,NO.2

sub61784-0K101

main61784-0K101-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7,NO.2

sub61784-0K101

main61784-0K101-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200607-200810

BLACK,1E9 ,209 ,3Q2 ,6S3,NO.2

sub61784-0K101

main61784-0K101-C0iKUN51,61,TGN61..LA200607-200810

BLACK,209 ,6S3 ,8P4,NO.2

sub61784-0K101

main61784-0K101-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7,NO.2

sub61784-0K101

main61784-0K101-C0iKUN50,TGN51..MA200809-201109

BLACK,1E3 ,204,NO.2

sub61784-0K101

main61784-0K101-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7,NO.2

sub61784-0K101

main61784-0K101-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6,NO.2

sub61784-0K101

main61784-0K101-C0iKUN50,TGN51..MA200607-200903

BLACK,NO.2

sub61784-0K101

main61784-0K101-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4,NO.2

sub61784-0K101

main61784-0K101-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4,NO.2

sub61784-0K101

main61784-0K101-C0iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,IDN,PHL,TH200607-200808

BLACK,1E9 ,209 ,8P4,NO.2

sub61784-0K101

75396DCLIP, OUTSIDE MOULDING, NO.2

main75396-35020iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

75741FMOULDING, REAR DOOR, OUTSIDE RH

main75741-0K901iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

EXCEPT THAILAND

sub75741-0K903

main75741-0K903iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200508-201202

FOR THAILAND

75742EMOULDING, REAR DOOR, OUTSIDE LH

main75742-0K901iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200501-201204

EXCEPT THAILAND

sub75742-0K903

main75742-0K903iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200508-201202

FOR THAILAND

75767DPAD, REAR DOOR MOULDING,NO.1

main75767-0K010-B0iTGN61..PHL;GGN50,KUN51,60,TGN51..GCC,IDN,PHL,TH200501-200606

GRAY,040 ,1C0 ,4P9 ,8P1

sub75767-0K011

main75767-0K010-B0iTGN61..IDN200504-200606

GRAY,040 ,1C0 ,4P9

sub75767-0K011

main75767-0K010-B0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200606

GRAY

sub75767-0K011

main75767-0K010-B0iKUN51,61,TGN61..LA200509-200606

GRAY,056 ,1C0 ,4P9

sub75767-0K011

main75767-0K010-B0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200606

GRAY,040 ,1C0 ,4P9 ,8P1 ,8S1

sub75767-0K011

main75767-0K010-C0iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200606

BLACK,1E9 ,209 ,8P1 ,8P4

sub75767-0K011

main75767-0K010-C0iKUN51,61,TGN61..LA200509-200606

BLACK,209 ,3Q2 ,6S3

sub75767-0K011

main75767-0K010-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200606

BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4

sub75767-0K011

main75767-0K010-C0iGGN50,60,KUN50,TGN51..ANCOM,MA200508-200606

BLACK

sub75767-0K011

main75767-0K011-B0iKUN51,61,TGN61..LA200607-201110

GRAY,040 ,1C0 ,4P9

main75767-0K011-B0iKUN50,TGN51..MA200607-200903

GRAY

main75767-0K011-B0iKUN51,61,TGN61..LA200607-200810

GRAY,040 ,056 ,1C0 ,4P9

main75767-0K011-B0iKUN50,TGN51..MA200809-201109

GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3

main75767-0K011-B0iKUN51..IND200908-201201

GRAY,040 ,057 ,1E7

main75767-0K011-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200607-200810

BLACK,1E9 ,209 ,3Q2 ,6S3

main75767-0K011-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200607-200810

BLACK,209 ,6S3 ,8P4

main75767-0K011-C0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH200808-201107

BLACK,1E9 ,209 ,8T7

main75767-0K011-C0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

BLACK,1E9 ,209 ,6S3 ,8T7

main75767-0K011-C0iKUN50,TGN51..MA200607-200903

BLACK

main75767-0K011-C0iKUN50,TGN51..MA200809-201109

BLACK,1E3 ,204

main75767-0K011-C0iGGN50,KUN51..GEN200708-200808

BLACK,1E9 ,209 ,6S3 ,8P4

main75767-0K011-C0iGGN50,KUN51,61,TGN61..LA200810-201110

BLACK,1E9 ,209 ,8S6

main75767-0K011-C0iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,IDN,PHL,TH200607-200808

BLACK,1E9 ,209 ,8P4

main75767-0K011-C0iKUN51..IND200908-201201

BLACK,1E3 ,209 ,8S4

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K030iGGN50,KUN51..GEN200708-200808

main76621-0K080iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main76621-0K100iGGN60..GEN200808-201107

main76621-0K100iGGN50,KUN51,TGN51..LHD..(GEN,VN)200808

MUD GUARD-WITH(FRONT & REAR)

76622DMUDGUARD, FRONT FENDER, LH

main76622-0K030iGGN50,KUN51..GEN200708-200808

main76622-0K080iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main76622-0K100iGGN60..GEN200808-201107

main76622-0K100iGGN50,KUN51,TGN51..LHD..(GEN,VN)200808

MUD GUARD-WITH(FRONT & REAR)

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K050iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201107

main76625-0K110iKUN51,61..RHD..SA200602-200810

MUD GUARD-DOP(FRONT ONLY)

main76625-0K110iKUN51,61..RHD..SA200602-200810

MUD GUARD-WITHOUT

main76625-0K110iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main76625-0K120iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0K050iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main76626-0K110iKUN51,61..RHD..SA200602-200810

MUD GUARD-DOP(FRONT ONLY)

main76626-0K110iKUN51,61..RHD..SA200602-200810

MUD GUARD-WITHOUT

main76626-0K110iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main76626-0K120iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

76648SUPPORT, REAR BODY MUDGUARD, RH

main76647-0K080iGGN60..GEN200501-201107

76648CSUPPORT, REAR BODY MUDGUARD, LH

main76648-0K080iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-52021iGGN60..GEN200501-201107

77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1

main77277-0K060iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

9015960266

main90159-60266

9015960603

main90159-60603

9018906006

main90189-06006

9018906065

main90189-06065

90189T0012

main90189-T0012

90189T0014

main90189-T0014

9026904054

main90269-04054

9046709191

main90467-09191

9090467036

main90904-67036

9090467037

main90904-67037

32 parts on this diagram · 2 diagrams in section
