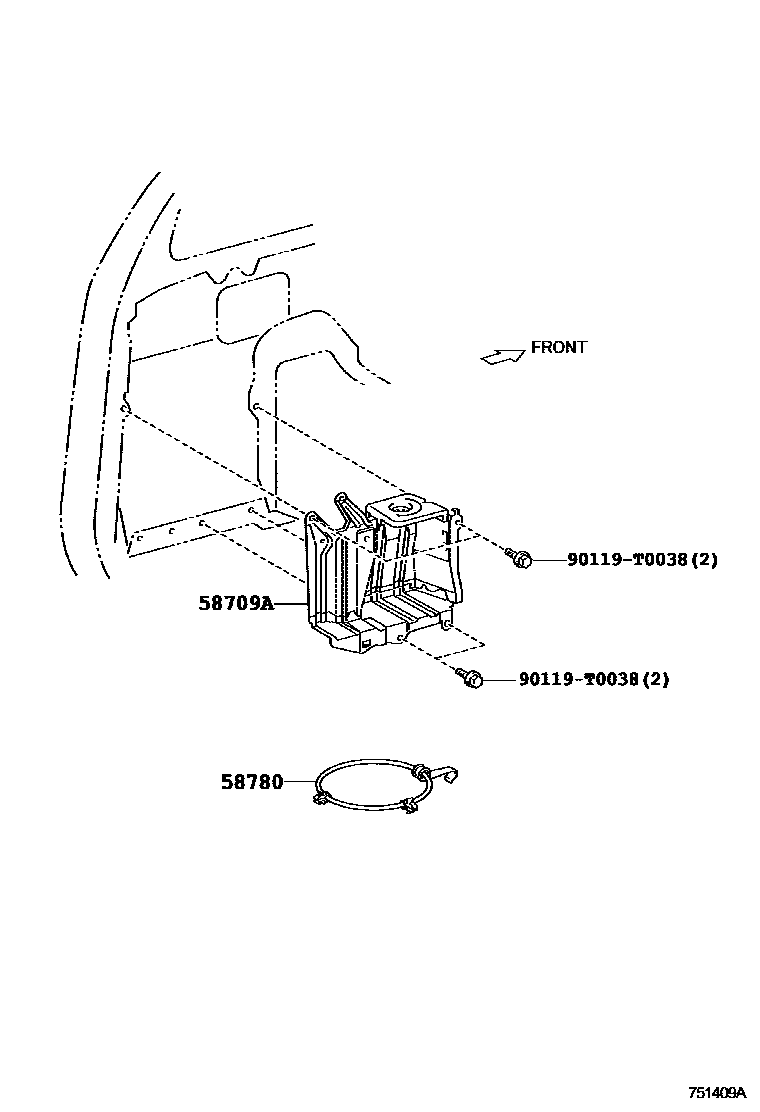

TOOL BOX & LICENSE PLATE BRACKET

58709ACARRIER SUB-ASSY, JACK

main58709-0K030iGGN60..GEN200808-201107

main58709-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

58780BAND ASSY, TOOL BOX

main58780-0K010iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

main58780-0K020iGGN60..SUVW..5FC;GGN50..LHD..(SUVW,THSUV);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..SUVW,THSUV200808

90119T0038

main90119-T0038

3 parts on this diagram · 1 diagram in section
