MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-0K010iGGN60..GEN200808-201107

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K060iKUN50,TGN51..MA200801-200809

NO PAINT REQ.

main75551-0K061iTGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,200608-200903

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K060iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200607

NO PAINT REQ.

main75552-0K061iGGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,LA,PHL,SA,TH,VN200808

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

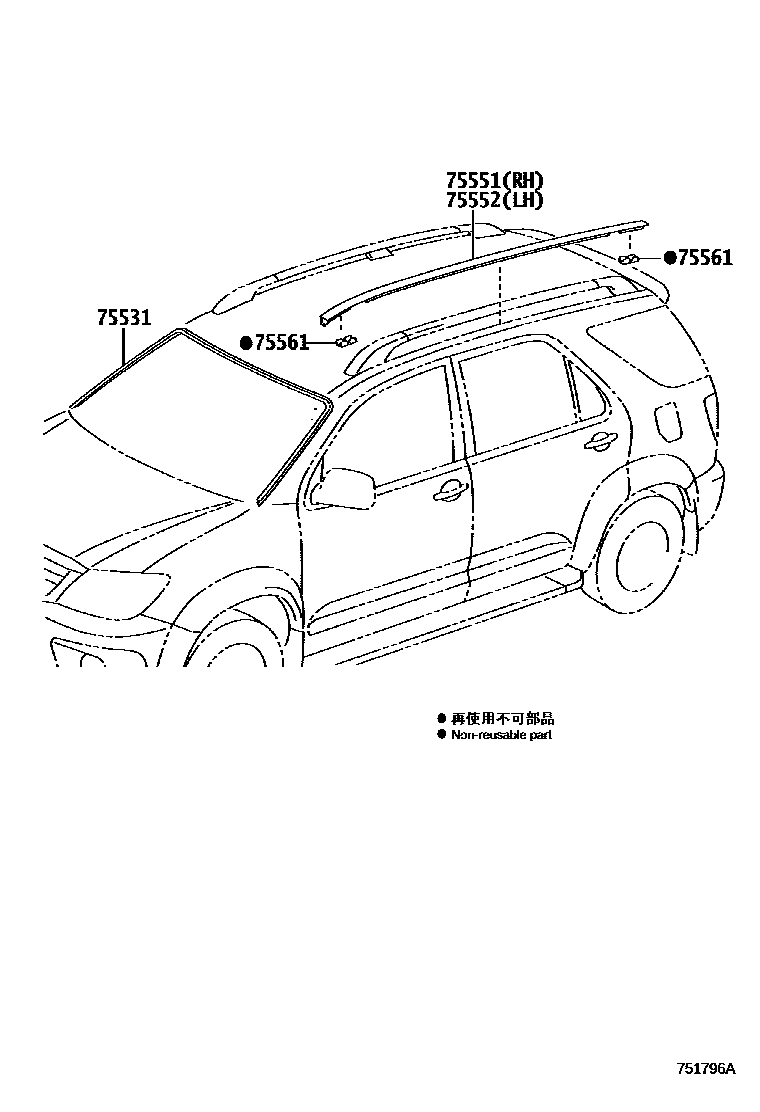

4 parts on this diagram · 1 diagram in section
