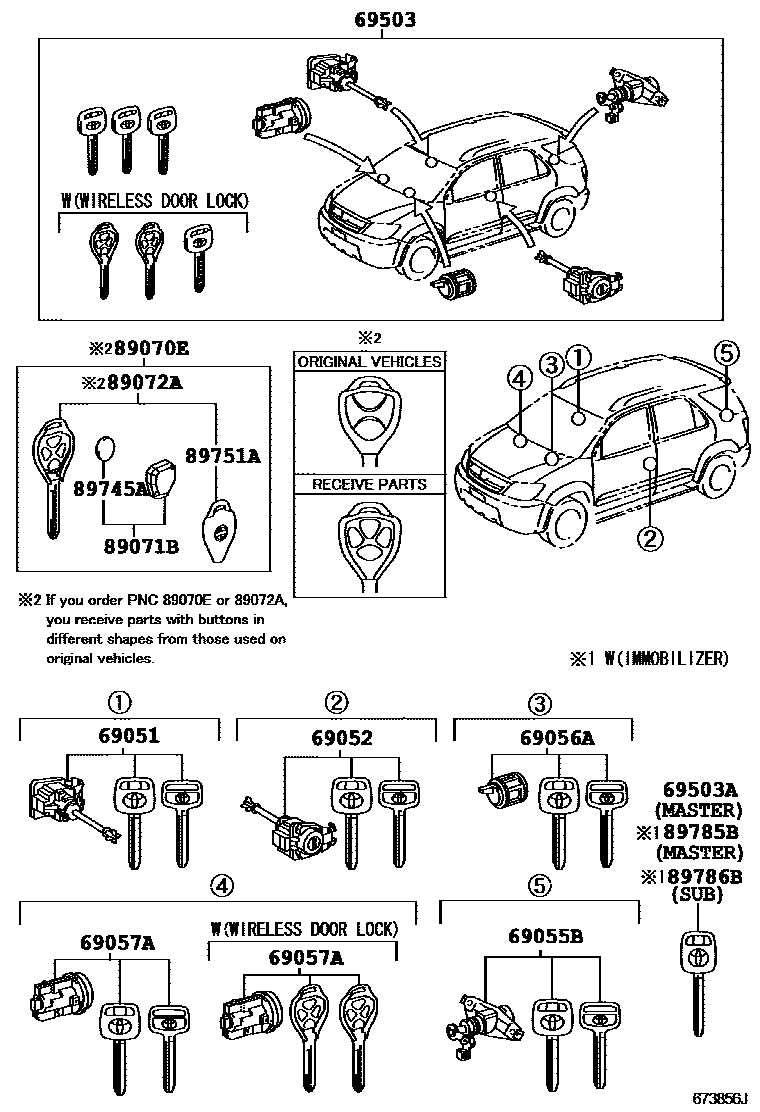

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0K011iGGN60..GEN200501-201107

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0K010iGGN60..GEN200501-201107

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-04030iKUN50,TGN51..MA200709-200908

main69057-0K040iKUN50,TGN51..MA200507-201107

main69057-0K080iGGN50,60,KUN51,6#,TGN51,61..ANCOM,IDN,LA,SA,TH200501-200603

sub69057-0K081

sub8907A-71020

main69057-0K081iGGN60,TGN51,61..ANCOM,IDN,TH;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,60..(SUVW,THSUV)..(ANCOM,GEN,IDN,LA,SA,TH)200604-200908

main69057-0K082iGGN60,TGN51..(4FC,5FC)..(ANCOM,IDN,SA);GGN50,KUN51,6#,TGN61..ANCOM,GEN,IDN,IND,LA,SA,TH200908-201107

main69057-0K090iKUN51,60,TGN61..PHL200504-200603

sub69057-0K091

sub8907A-71020

main69057-0K091iKUN51,60,TGN61..PHL200604-200808

main69057-0K101iLAN50,TGN51..SA200605-200810

main69057-0K101iLAN50,TGN51..SA200810-201108

ANTI-THEFT SYSTEM-WITHOUT

main69057-0K160iKUN50,TGN51..MA200908-201109

69503CYLINDER SET, LOCK

main69005-0K112iLAN50,TGN51..SA200605-200810

main69005-0K112iKUN51,61..5F..SA200810-200910

ANTI-THEFT SYSTEM-WITHOUT

main69005-0K121iKUN50,TGN51..MA200709-200908

main69005-0K122iKUN50,TGN51..MA200908-201109

main69005-0K131iKUN50,TGN51..MA200507-200907

sub69005-0K132

main69005-0K132iGGN50,TGN51,61..GCC200908-201107

main69005-0K211iGGN50,60,KUN51,6#,TGN51,61..ANCOM,IDN,LA,SA,TH200501-200603

sub69005-0K212

main69005-0K212iGGN50,60,KUN51,6#,TGN51,61..GEN,IDN,TH200604-200912

main69005-0K221iKUN51,60,TGN61..PHL200504-200603

sub69005-0K222

main69005-0K222iKUN60,TGN51..VN200604-200909

main69005-0K620iKUN51..LHD..SA200910-201108

ANTI-THEFT SYSTEM-WITHOUT

main69005-0K630iKUN51,61..RHD..5F..SA200910-201108

ANTI-THEFT SYSTEM-WITHOUT

main69005-0K650iGGN50,60,KUN51..THSUV200908-201204

main69005-0K660iGGN50,60,KUN61..SA;KUN51..RHD..5F..SA200908-201201

main69005-0K670iKUN51,60,TGN61..PHL200908-201202

69503AKEY, BLANK

main90999-00186iGGN50,TGN51,61..GCC200507-201107

MASTER KEY

main90999-00188iLAN50,TGN51..SA200507-200808

SUB KEY

main90999-00199iGGN50,TGN51,61..GCC200507-201107

MASTER KEY,W(*68)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02351iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,LA,TH200808-200908

SINGAPORE SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER

sub89070-02352

main89070-02351iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200808-200903

sub89070-02352

main89070-02361iKUN51,60,TGN51,61..PHL,VN200808-200908

sub89070-0K500

main89070-0K160iLAN50,TGN51..SA200605-200712

sub89070-0K161

main89070-0K161iLAN50,TGN51..SA200801-200807

ANTI-THEFT SYSTEM-WITHOUT

sub89070-0K340

main89070-0K170iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,LA,TH200604-200712

SINGAPORE SPEC

sub89070-0K171

main89070-0K171iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,LA,TH200801-200808

sub89070-02351

main89070-0K180iKUN51,60,TGN61..PHL200604-200712

sub89070-0K181

main89070-0K181iKUN51,60,TGN61..PHL200801-200808

sub89070-0K182

main89070-0K190iGGN50,60,KUN51,61..SA200604-200712

sub89070-0K191

main89070-0K191iTGN51..SA200801-200809

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

sub89070-0K360

main89070-0K340iLAN50,TGN51..SA200808-200810

ANTI-THEFT SYSTEM-WITHOUT

sub89070-0K770

main89070-0K360iGGN50,60,KUN51,61..SA200810-200910

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

sub89070-0K361

main89070-0K380iKUN51,61..5F..SA200810-200910

ANTI-THEFT SYSTEM-WITHOUT

main89070-0K381iKUN51,61..5F..SA200910-201108

ANTI-THEFT SYSTEM-WITHOUT

sub89070-0K382

main89070-0K480iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,IND,LA,TH200908-201204

sub89070-0K485

main89070-0K490iGGN50,60,KUN51,61..SA200910-201108

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

sub89070-0K491

main89070-0K500iKUN51,60,TGN51,61..PHL,VN200908-201202

sub89070-0K501

main89070-71130iGGN50,60,KUN51,61..SA200602-200604

sub89070-0K190

main89070-71160iTGN51..TH200501-200603

SINGAPORE SPEC

sub89070-0K170

main89070-71170iKUN51,60,TGN61..PHL200504-200604

sub89070-0K180

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-71030iGGN50,60,KUN51,6#,TGN51,61..ANCOM,IDN,LA,PHL,SA,TH200501-200604

SINGAPORE SPEC

main89071-71040iTGN51,61..TH200604-200803

SINGAPORE SPEC

sub89071-71041

main89071-71041iKUN51..LHD..SA200803-201107

sub89071-71042

main89071-71050iLAN50,TGN51..SA200605-200803

sub89071-71051

main89071-71051iKUN51,61..RHD..5F..SA200810-201108

ANTI-THEFT SYSTEM-WITHOUT

sub89071-71052

main89071-71051iLAN50,TGN51..SA200803-200810

ANTI-THEFT SYSTEM-WITHOUT&WIRELESS DOOR LOCK-WITH

sub89071-71052

main89071-71051iLAN50,TGN51..SA200810-201108

EXPORT FROM SOUTH AFRICA&ANTI-THEFT SYSTEM-WITHOUT

sub89071-71052

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02150iGGN50,60,KUN51,6#,TGN51,61..ANCOM,IDN,LA,TH200501-200604

SINGAPORE SPEC

main89072-02150iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200808-200908

main89072-02160iKUN51,60,TGN61..PHL200504-200908

sub89072-0K280

main89072-0K100iKUN51,61..SA200808-200810

ANTI-THEFT SYSTEM-WITHOUT

main89072-0K120iTGN51..SA200810-200910

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

main89072-0K120iGGN50,60,KUN51,61..SA200602-200604

main89072-0K140iKUN51,61..5F..SA200810-200910

ANTI-THEFT SYSTEM-WITHOUT

main89072-0K141iKUN51,61..5F..SA200910-201108

ANTI-THEFT SYSTEM-WITHOUT

main89072-0K210iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,IND,LA,TH200908-201204

main89072-0K220iTGN51..SA200910-201108

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

main89072-0K280iKUN51,60,TGN51,61..PHL,VN200908-201202

main89072-71160iLAN50,TGN51..SA200801-200808

ANTI-THEFT SYSTEM-WITHOUT

main89072-71160iLAN50,TGN51..SA200605-200801

main89072-71160iLAN50,TGN51..SA200801-200808

WIRELESS DOOR LOCK-WITH

main89072-71170iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,LA,TH200604-200808

SINGAPORE SPEC

main89072-71180iKUN51,60,TGN61..PHL200604-200808

main89072-71190iGGN50,60,KUN51,61..SA200604-200801

main89072-71190iGGN50,60,KUN51,61..SA200801-200810

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

89745ABATTERY, TRANSMITTER

main89745-71010iKUN51..RHD;GGN50..5FC..SA;GGN60..SUVW..5FC;GGN50,KUN51..LHD..(ANCOM,GEN,LA,PHL);KUN6#,LAN50,TGN51,61..IDN,LA,PHL,SA,TH,VN200501-200903

main89745-71010iGGN60..GEN200808-201107

ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH

main89745-71010iGGN60..GEN200808-201107

WIRELESS DOOR LOCK-WITH

89751ACOVER, TRANSMITTER HOUSING

main89751-02090iGGN50,60,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,LA,PHL,TH,VN200808-200908

ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH

main89751-02090iLAN50,TGN51..LHD..SA200808-200910

WIRELESS DOOR LOCK-WITH

main89751-0K010iGGN50,60,KUN51,61..RHD..SA200810-200910

main89751-0K020iKUN51,61..RHD..5F..SA200810-200910

ANTI-THEFT SYSTEM-WITHOUT

main89751-0K030iGGN50,60,KUN51,61..SA200910-201108

ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)

main89751-0K050iKUN51,61..RHD..5F..SA200910-201108

ANTI-THEFT SYSTEM-WITHOUT

main89751-0K070iKUN51..LHD..SA201010-201108

ANTI-THEFT SYSTEM-WITHOUT

sub89751-0K071

main89751-26010iGGN50,60,KUN51,6#,TGN51,61..ANCOM,IDN,LA,PHL,TH200501-200604

SINGAPORE SPEC

main89751-28070iTGN61..5F..LA;TGN61..IDSUV..IDN;LAN50,TGN51..IDN,SA,TH;KUN51..(SUVW,THSUV)..(GEN,LA,PHL,TH);GGN60,TGN61..SUVW..(ANCOM,IDN,PHL,TH);GGN50,KUN6#..(SUVW,THSUV)..(ANCOM,200604-200903

main89751-52140iGGN60..ANCOM;GGN50,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,IND,LA,PHL,TH,VN200908-201107

main89751-52140iLAN50,TGN51..LHD..SA200910-201009

WIRELESS DOOR LOCK-WITH

main89751-52140iLAN50,TGN51..LHD..SA200910-201009

ANTI-THEFT SYSTEM-WITHOUT

main89751-71030iGGN50,60,KUN51,61..SA200602-200603

main89751-71050iGGN50,60,KUN51,61..SA200604-200810

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020iKUN50,TGN51..MA200709-200809

main89785-08020iKUN50,TGN51..MA200809-201004

NO MARK

main89785-08040iKUN50,TGN51..MA200908-201109

MARK G

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020iKUN51..4FC..LA;KUN51..LHD..SA200501-200908

BLANK KEY

main89786-08020iGGN50..5FC..SA;GGN50..ANCOM,GEN,LA;KUN51,6#,TGN61..GEN,IDN,LA,SA,TH;GGN60,TGN51..(4FC,5FC)..(ANCOM,GEN,IDN,SA)200808-200908

BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH

main89786-08020iKUN50,TGN51..MA200809-201004

BLANK KEY,NO MARK

main89786-08040iTGN51..IDN;GGN50,60,KUN51,6#,TGN61..ANCOM,GEN,IDN,IND,LA,SA,TH200908-201204

BLANK KEY

main89786-08040iKUN50,TGN51..MA200908-201109

BLANK KEY,MARK G

14 parts on this diagram · 4 diagrams in section
