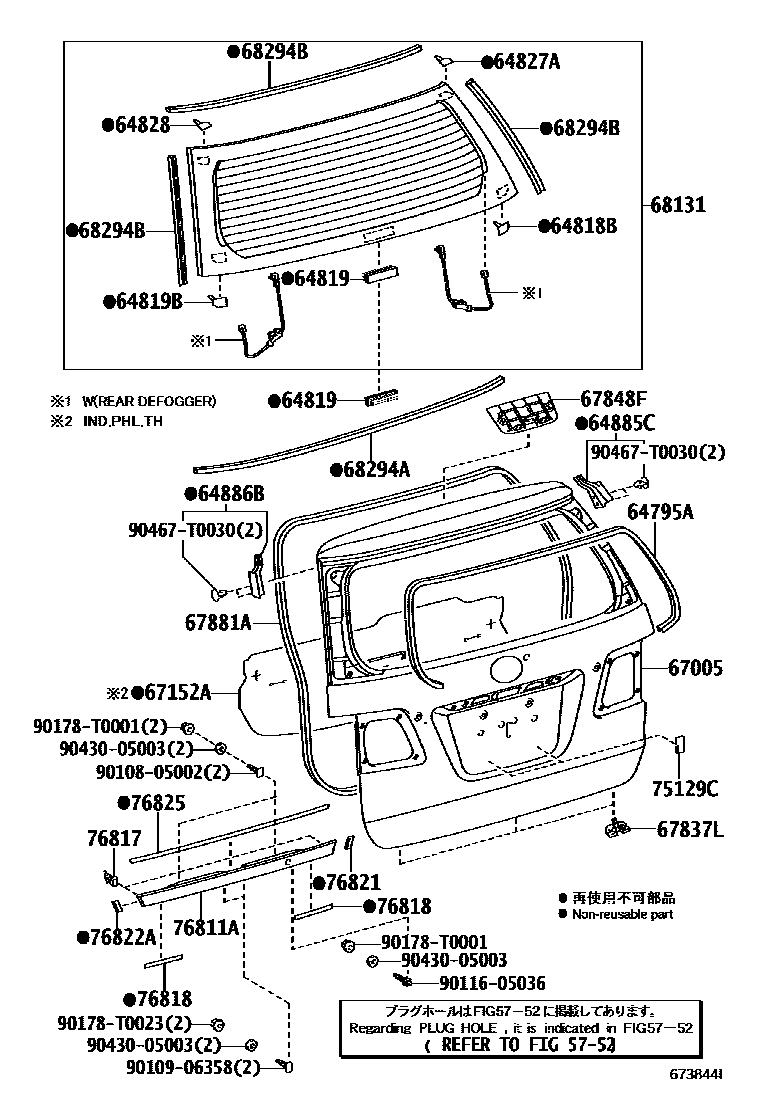

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752

64795ATRIM, BACK WINDOW OPENING

main64795-0K010iGGN60..GEN200501-201107

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0K040iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200501-201204

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0K050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201204

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0K010iTGN51..TH200501-201204

64827ACLIP, BACK WINDOW GLASS, RH

main64827-0K010iGGN60..GEN200501-201204

64828CLIP, BACK WINDOW GLASS, LH

main64828-0K010iTGN51..TH200501-201204

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67005PANEL SUB-ASSY, BACK DOOR

main67005-0K010iTGN51,61..GCC;KUN51..5F..TH200501-201007

sub67005-0K011

main67005-0K011iKUN51,60..5F..TH201008-201107

main67005-0K020iKUN51..5F..TH200708-201007

BRUNEI SPEC

sub67005-0K021

main67005-0K020iTGN51,61..GCC200507-200808

SAUDI ARABIA SPEC

sub67005-0K021

main67005-0K020iKUN51..4FC..TH;TGN61..IDSUV..IDN;TGN51..IDN,MA,SA,TH;TGN61..SUVW..(IDN,PHL,TH);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60..(SUVW,THSUV)..(4FC,5F200501-200810

sub67005-0K021

main67005-0K021iGGN60..GEN201008-201107

BRUNEI SPEC

main67005-0K021iKUN51..4FC..TH;GGN60,KUN61,TGN61..GCC,IDN,PHL,SA,TH;GGN50,KUN5#,60,LAN50,TGN51..GCC,GEN,IDN,IND,MA,PHL,SA,VN201008

main67005-0K120iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201012

sub67005-0K121

main67005-0K120iTGN61..LA201012-201101

BRAZIL SPEC

sub67005-0K121

main67005-0K121iGGN50,60,KUN51,61,TGN61..ANCOM,LA201101

67152ACOVER, BACK DOOR SERVICE HOLE

main67847-0K040iKUN51,60,TGN61..PHL,TH200708-200808

67837LSEAL, DOOR DUST PROOF

main67837-0K020iGGN50,60,KUN5#,6#,LAN50,TGN51,61200501-200712

main67837-0K050iTGN51..GCC,IDN,MA,SA;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,G200801-201107

67848FCOVER, BACK DOOR SERVICE HOLE, NO.2

main67847-0K030iKUN51..4FC..(PHL,TH);KUN60,TGN51,61..PHL,TH200501-200903

main67847-0K030iTGN51,61..GCC200507-200808

SAUDI ARABIA SPEC

main67847-0K050iKUN51..5F..TH200708-200712

BRUNEI SPEC

sub67847-0K051

main67847-0K051iKUN51..5F..TH200801-201107

BRUNEI SPEC

67881AWEATHERSTRIP, BACK DOOR

main67881-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68131GLASS, BACK DOOR

main68105-0K010iKUN60,TGN51,61..IDN200504-200712

*EHTT,T=3.5,PRIVACY

sub68105-0K011

main68105-0K011iGGN50,60..5FC..SA;KUN51,6#,TGN51,61..RHD..(IDN,SA)200801-201108

*TT,T=3.5,GREEN

main68105-0K020iKUN51..LHD..SA;LAN50,TGN51..GCC,MA,SA,TH;GGN50,KUN5#,60,TGN61..GCC,GEN,MA,PHL,TH200501-200806

*EHTT,T=3.5,GREEN

sub68105-0K021

main68105-0K021iGGN60..GEN200807-201204

*EHTT,T=3.5,GREEN

sub68105-0K022

main68105-0K021iKUN60..5F..IDN200908-201107

*EHTT,T=3.5,GREEN,BRUNEI SPEC

sub68105-0K022

main68105-0K091iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

*EHTT,T=3.5,GREEN

sub68105-0K092

main68105-0K160iKUN51..IND200908-201204

*EHTT,T=3.5,GREEN

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

UPR

main68294-0K010iGGN60..GEN200808-201204

UPPER

main68294-0K020iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

RH & LH

main68294-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

LH & RH

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iTGN51..TH200501-201107

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-0K020iTGN61..IDSUV..IDN;TGN51..IDN,MA,SA,TH;GGN50,60,KUN61,LAN50..GCC,SA;KUN51,60,TGN61..(SUVW,THSUV)..SR..(GEN,IDN,LA,PHL,SA,TH)200501-201202

PLATED

main76811-0K901iGGN50,60..ANCOM;KUN61,TGN61..LA200507-201204

PAINT REQ.

main76811-0K904iTGN51,61..GCC;GGN50,KUN50..GEN,MA200508-201109

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

76818PAD, BACK DOOR OUTSIDE GARNISH

main76818-0K010iGGN60..GEN200501-201107

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR

main76822-0K010iTGN51..TH200501-201107

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

9010805002

main90108-05002

9010906358

main90109-06358

9011605036

main90116-05036

90178T0001

main90178-T0001

90178T0023

main90178-T0023

9043005003

main90430-05003

90467T0030

main90467-T0030

31 parts on this diagram · 2 diagrams in section
